Chevrolet Trax: Air conditioning compressor hose replacement (LUJ, LUV)

Chevrolet Trax (2013-2022) Workshop Manual / HVAC & Restraints / Heating, Ventilation, and Air Conditioning / Repair instructions / Air conditioning compressor hose replacement (LUJ, LUV)

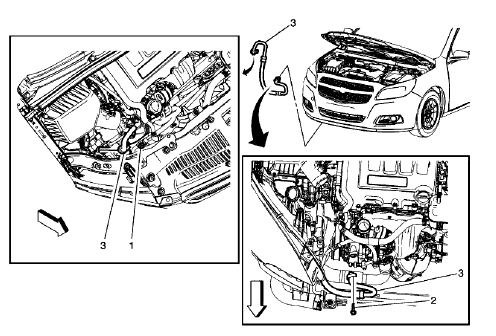

Fig. 14: Air Conditioning Compressor Hose
Fig. 14: Air Conditioning Compressor Hose

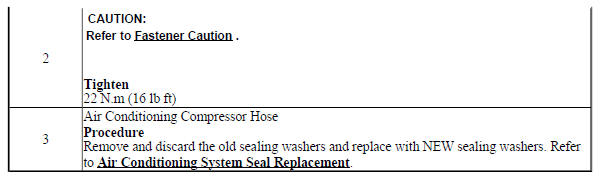

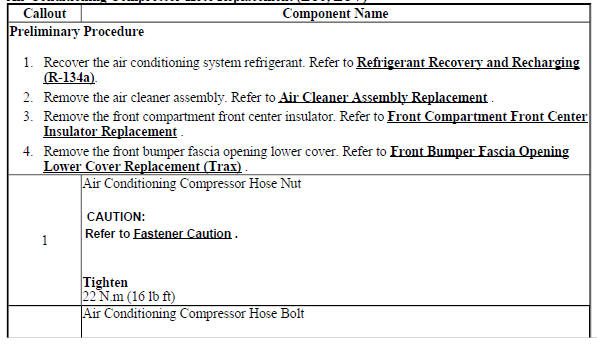

Air Conditioning Compressor Hose Replacement (LUJ, LUV)

Air Conditioning Compressor Hose Replacement (LUJ, LUV)

Air Conditioning Compressor Hose Replacement (LUJ, LUV)

AIR CONDITIONING COMPRESSOR HOSE REPLACEMENT (2H0)

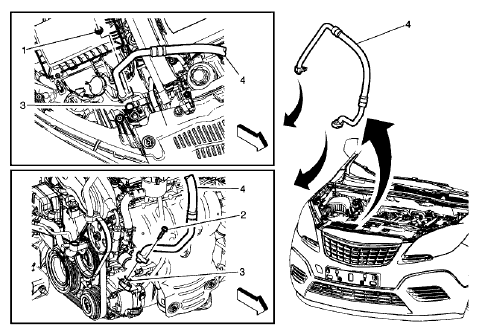

Fig. 15: Air Conditioning Compressor Hose
Fig. 15: Air Conditioning Compressor Hose

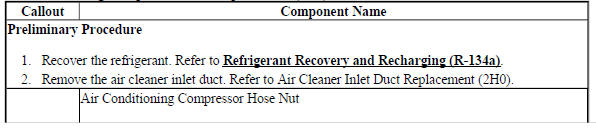

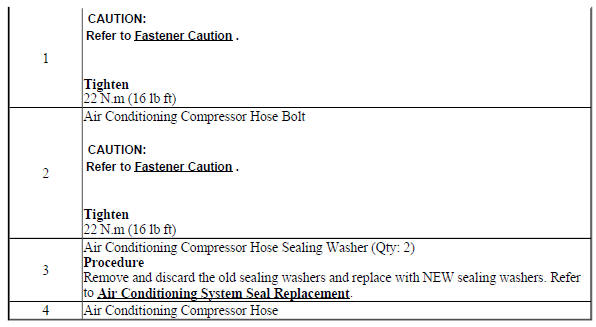

Air Conditioning Compressor Hose Replacement (2H0)

Air Conditioning Compressor Hose Replacement (2H0)

Air Conditioning Compressor Hose Replacement (2H0)

AIR CONDITIONING CONDENSER HOSE REPLACEMENT (LUJ, LUV)

Removal Procedure

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a).
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  3. Disconnect the electrical connector from the air conditioning refrigerant pressure sensor.

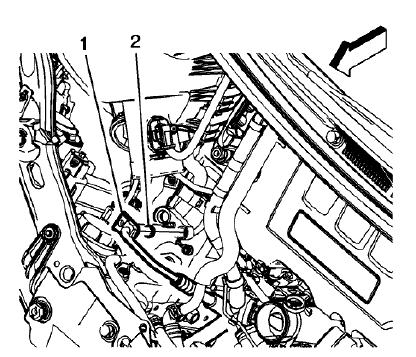

Fig. 16: Air Conditioning Compressor Hose Assembly
Fig. 16: Air Conditioning Compressor Hose Assembly

  1. Remove the air conditioning compressor hose assembly (1) from the air conditioning condenser hose at the evaporator hose assembly and position out of the way. Refer to Air Conditioning Compressor Hose Replacement (LUJ, LUV),
  2. Remove and discard the old sealing washer (2) and replace with a NEW sealing washer.

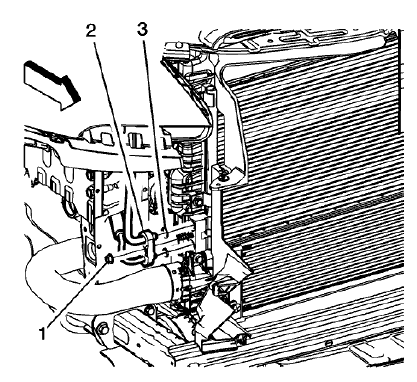

Fig. 17: Air Conditioning Condenser Hose Assembly
Fig. 17: Air Conditioning Condenser Hose Assembly

  1. Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement (Trax) , Front Bumper Fascia Replacement (Encore) .
  2. Remove air conditioning condenser hose assembly nut (1) from the air conditioning condenser.
  3. Remove air conditioning condenser hose assembly (2) from air conditioning condenser.
  4. Remove and discard the old sealing washers (3) and replace with NEW sealing washers.

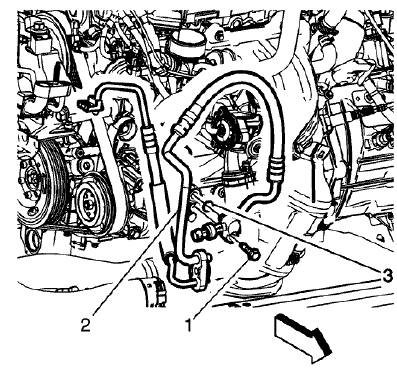

Fig. 18: Condenser Hose Assembly And Bolt
Fig. 18: Condenser Hose Assembly And Bolt

  1. Remove air conditioning condenser hose assembly bolt (1) from the air conditioning compressor assembly.
  2. Remove air conditioning condenser hose assembly (2) from air conditioning compressor assembly.
  3. Remove and discard the old sealing washers (3) and replace with a NEW sealing washers.

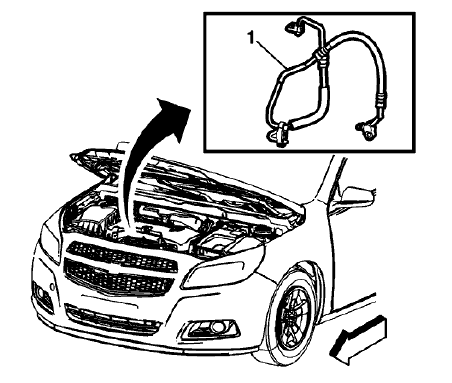

Fig. 19: Condenser Hose Assembly
Fig. 19: Condenser Hose Assembly

  1. Remove air conditioning condenser hose assembly (1) from the vehicle.

NOTE: Remove and discard the old air conditioning sealing washers and replace with a NEW sealing washers.

  1. Transfer all required parts

Installation Procedure

NOTE: Install NEW air conditioning sealing washers to the air conditioning condenser hose assembly. Refer to Air Conditioning System Seal Replacement.

  1. Install air conditioning condenser hose assembly into the vehicle.
  2. Install the air conditioning refrigerant pressure sensor. Refer to Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LUJ, LUV).

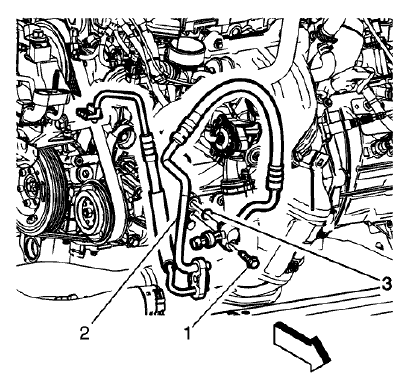

Fig. 20: Condenser Hose Assembly And Bolt
Fig. 20: Condenser Hose Assembly And Bolt

  1. Install NEW air conditioning sealing washer (3) to the air conditioning condenser hose assembly.
  2. Install the air conditioning condenser hose assembly (2) to the air conditioning compressor assembly.

CAUTION: Refer to Fastener Caution .

  1. Install air conditioning condenser hose assembly bolt (1) and tighten the bolt to 22 N.m (16 lb ft).

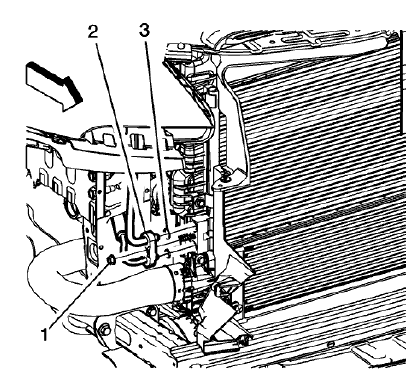

Fig. 21: Air Conditioning Condenser Hose Assembly
Fig. 21: Air Conditioning Condenser Hose Assembly

  1. Install NEW air conditioning sealing washers (3) to the air conditioning condenser hose assembly.
  2. Install the air conditioning condenser hose assembly (2) to the air conditioning condenser.
  3. Install the air conditioning condenser hose assembly nut (1) and tighten the nut to 22 N.m (16 lb ft).
  4. Install the front fascia assembly. Refer to Front Bumper Fascia Replacement (Trax) , Front Bumper Fascia Replacement (Encore) .

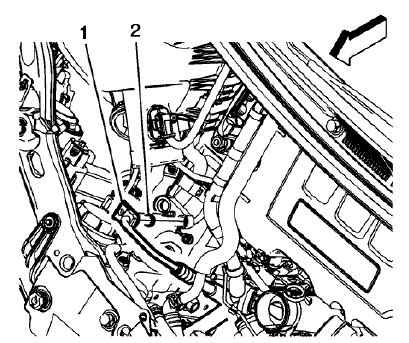

Fig. 22: Air Conditioning Compressor Hose Assembly
Fig. 22: Air Conditioning Compressor Hose Assembly

  1. Install NEW air conditioning sealing washer (2) to the air conditioning condenser hose assembly.
  2. Install the air conditioning condenser hose assembly (1) to the evaporator hose assembly.
  3. Install the air compressor hose assembly to the air conditioning condenser hose assembly (1). Refer to Air Conditioning Compressor Hose Replacement (LUJ, LUV).
  4. Connect the A/C refrigerant pressure sensor electrical connector.
  5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  6. Charge the refrigerant system. Refer to Refrigerant Recovery and Recharging (R-134a).
