Chevrolet Trax: Mirror Adjustment

Chevrolet Trax (2013-2022) Owner's Manual / In Brief / Initial Drive Information / Mirror Adjustment

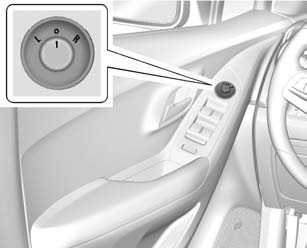

Exterior Mirrors

Exterior Mirrors

To adjust the mirrors:

  1. Turn the selector switch to L (Left) or R (Right) to choose the driver or passenger mirror.
  2.  Move the control to adjust the mirror.
  3. Turn the selector switch to to deselect the mirror.

Interior Mirror

Adjustment

Adjust the rearview mirror to get a clear view of the area behind the vehicle.

Manual Rearview Mirror

If equipped, push the tab forward for daytime use and pull it for nighttime use to avoid the glare of headlamps from behind. See Manual Rearview Mirror

Automatic Dimming Rearview Mirror

If equipped, automatic dimming reduces the glare of headlamps from behind. The dimming feature comes on when the vehicle is started.

See Automatic Dimming Rearview Mirror

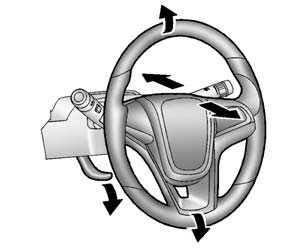

Steering Wheel Adjustment

Steering Wheel Adjustment

To adjust the steering wheel:

  1. Pull the lever down.
  2. Move the steering wheel up, down, forward, and backward.
  3. Pull the lever up to lock the steering wheel in place.

Do not adjust the steering wheel while driving.
