Chevrolet Trax: Liftgate window replacement
Special Tools
- J 24402-A Glass Sealant (Cold Knife) Remover
- J 39032 Stationary Glass Removal Tool
- Use a urethane adhesive systems which meet GM Specification GMW 15672
Removal Procedure
WARNING: Refer to Cracked Window Warning
NOTE: Before
cutting out a stationary window, apply a double layer of masking
tape around the perimeter of the painted surfaces and the interior trim.
- Open the liftgate.
- Remove the liftgate trim. Refer to Liftgate Lower Trim Finish Panel
Replacement .
- Disconnect the electrical connectors from the liftgate window defogger
bus bar.
- Remove the rear window wiper arm. Refer to Rear Window Wiper Arm
Replacement .
- Remove the rear spoiler. Refer to Rear End Spoiler Replacement .
WARNING: Refer to Defroster Outlet Warning .
- Cover the following parts to protect from broken glass, seats and
carpeting.
![Fig. 14: Separating Urethane Adhesive From Window](images/manuals/4484/index613(6).gif)
Fig. 14: Separating Urethane Adhesive From Window
WARNING: Refer to Glass and Sheet Metal Handling Warning .
NOTE: Keep the cutting edge of the tool against the window.
- Remove the window from the urethane adhesive.
- Leave a base of urethane approximately 2 mm (0.078 in) on the pinch-weld
flange.
- The only suitable lubrication is clear water, no oils, lubes or soaps.
- Use J 24402-A glass sealant (cold knife) remover , J 39032 stationary
glass removal tool or
equivalent in order to remove the window.
NOTE: Keep the cutting edge of the knife/tool against the window.
Do this from
inside the vehicle.
- If necessary, use a long utility knife or similar tool to remove the
bottom corners of the window from the
urethane adhesive.
![Fig. 15: Rear Window](images/manuals/4484/index614(6).gif)
Fig. 15: Rear Window
- With an assistant, remove the window (2) from the vehicle. Check that
the retainers (1) are still attached to the window before
installing
Installation Procedure
- Install the liftgate window into the opening. Refer to Adhesive
Installation of Liftgate Windows.
- Install the rear spoiler. Refer to Rear End Spoiler Replacement .
- Install the rear window wiper arm. Refer to Rear Window Wiper Arm
Replacement .
- Connect the liftgate window defogger electrical connectors to the bus
bar.
- Install the liftgate trim. Refer to Liftgate Lower Trim Finish Panel
Replacement .
- Remove the double layer of masking tape around the perimeter of the
painted surfaces and the interior
trim.
- Close the liftgate.
FRONT SIDE DOOR STATIONARY WINDOW REPLACEMENT
![Fig. 16: Front Side Door Stationary Window](images/manuals/4484/index615(7).gif)

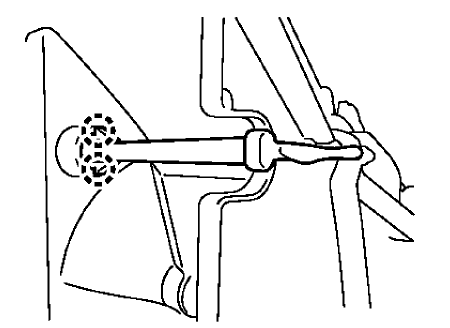

Fig. 16: Front Side Door Stationary Window

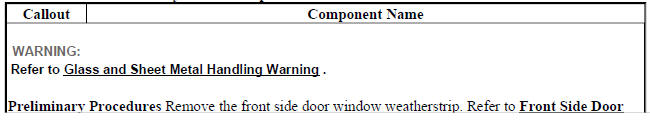

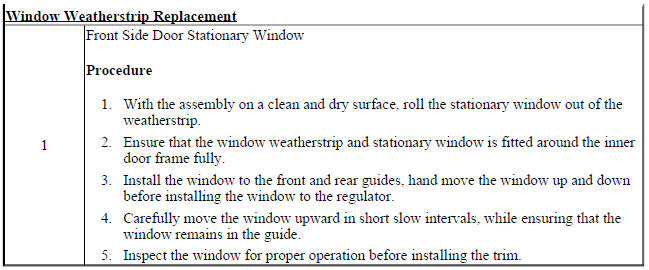

Front Side Door Stationary Window Replacement
![Front Side Door Stationary Window Replacement](images/manuals/4484/index616(6).jpg)
![Front Side Door Stationary Window Replacement](images/manuals/4484/index617(6).jpg)
FRONT SIDE DOOR WINDOW SWITCH REPLACEMENT (DRIVER SIDE, ENCORE)
![Fig. 17: Front Side Door Window Switch (Driver Side)](images/manuals/4484/index618(7).gif)
Fig. 17: Front Side Door Window Switch (Driver Side)

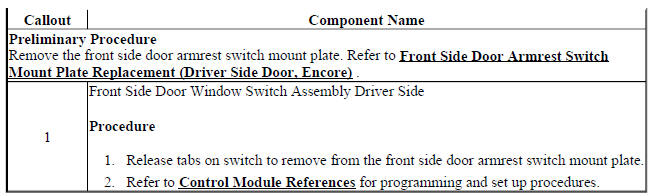

Front Side Door Window Switch Replacement (Driver Side, Encore)
![Front Side Door Window Switch Replacement (Driver Side, Encore)](images/manuals/4484/index619(6).jpg)
FRONT SIDE DOOR WINDOW SWITCH REPLACEMENT (PASSENGER SIDE, ENCORE)
![Fig. 18: Front Side Door Window Switch (Passenger Side)](images/manuals/4484/index620(5).gif)

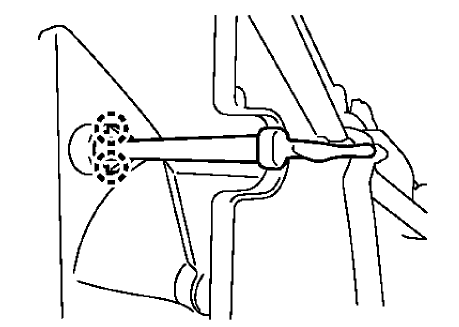

Fig. 18: Front Side Door Window Switch (Passenger Side)

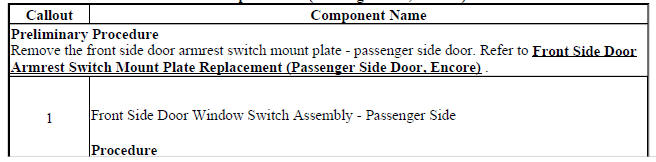

Front Side Door Window Switch Replacement (Passenger Side, Encore)
![Front Side Door Window Switch Replacement (Passenger Side, Encore)](images/manuals/4484/index621(6).jpg)
![Front Side Door Window Switch Replacement (Passenger Side, Encore)](images/manuals/4484/index622(5).jpg)
FRONT SIDE DOOR WINDOW SWITCH REPLACEMENT (DRIVER SIDE, TRAX)
![Fig. 19: Front Side Door Window Switch (Driver Side)](images/manuals/4484/index623(6).gif)
Fig. 19: Front Side Door Window Switch (Driver Side)

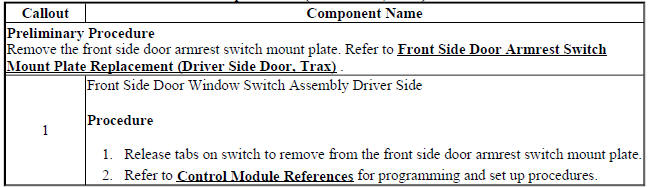

Front Side Door Window Switch Replacement (Driver Side, Trax)
![Front Side Door Window Switch Replacement (Driver Side, Trax)](images/manuals/4484/index624(6).jpg)
FRONT SIDE DOOR WINDOW SWITCH REPLACEMENT (PASSENGER SIDE, TRAX)

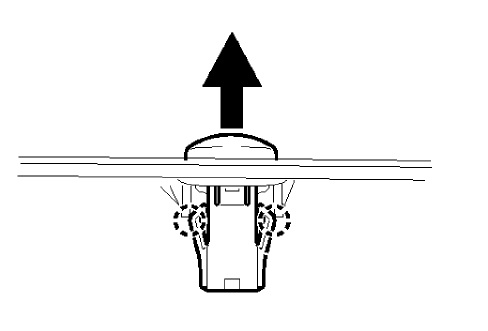

![Fig. 20: Front Side Door Window Switch (Passenger Side)](images/manuals/4484/index625(6).gif)
Fig. 20: Front Side Door Window Switch (Passenger Side)

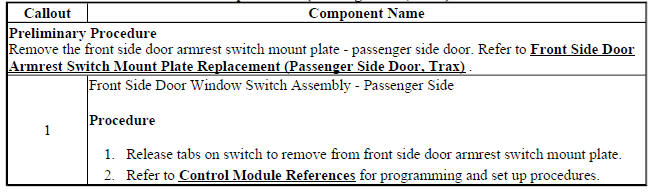

Front Side Door Window Switch Replacement (Passenger Side, Trax)
![Front Side Door Window Switch Replacement (Passenger Side, Trax)](images/manuals/4484/index626(6).jpg)
REAR SIDE DOOR WINDOW SWITCH REPLACEMENT
![Fig. 21: Rear Side Door Window Switch](images/manuals/4484/index627(6).gif)
Fig. 21: Rear Side Door Window Switch

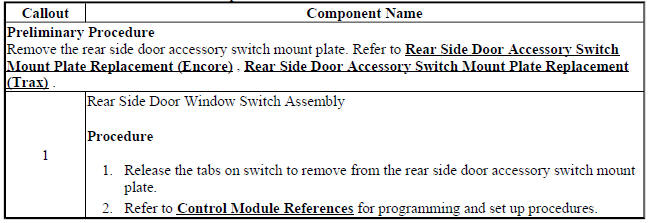

Rear Side Door Window Switch Replacement
![Rear Side Door Window Switch Replacement](images/manuals/4484/index628(5).jpg)
FRONT SIDE DOOR WINDOW REGULATOR REPLACEMENT (POWER)

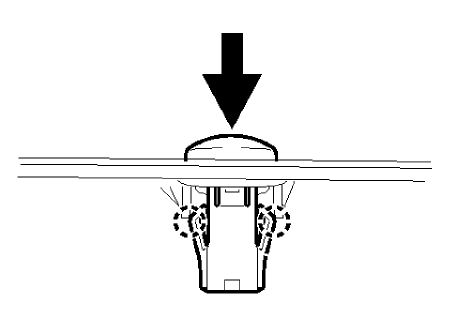

![Fig. 22: Front Side Door Window Regulator (Power)](images/manuals/4484/index629(6).gif)
Fig. 22: Front Side Door Window Regulator (Power)

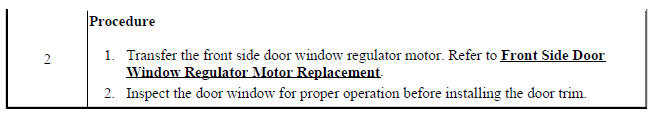

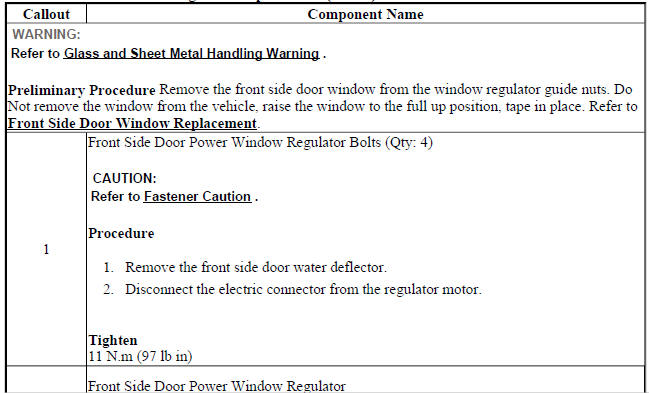

Front Side Door Window Regulator Replacement (Power)
![Front Side Door Window Regulator Replacement (Power)](images/manuals/4484/index630(5).jpg)
![Front Side Door Window Regulator Replacement (Power)](images/manuals/4484/index631(5).jpg)
FRONT SIDE DOOR WINDOW REGULATOR REPLACEMENT (MANUAL)
![Fig. 23: Front Side Door Window Regulator (Manual)](images/manuals/4484/index632(6).gif)
Fig. 23: Front Side Door Window Regulator (Manual)

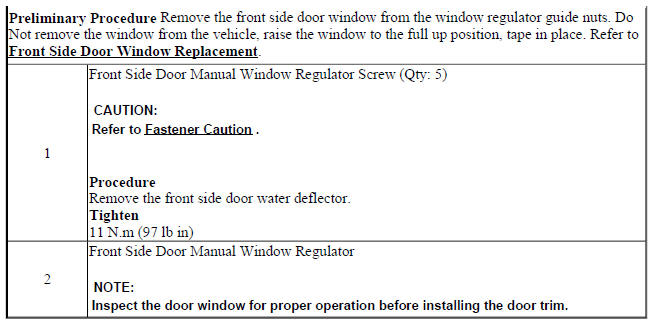

Front Side Door Window Regulator Replacement (Manual)
![Front Side Door Window Regulator Replacement (Manual)](images/manuals/4484/index633(4).jpg)
![Front Side Door Window Regulator Replacement (Manual)](images/manuals/4484/index634(5).jpg)
