Chevrolet Trax: DTC P0597-P0599 (2H0 OR LUJ): Engine coolant thermostat heater control Circuit

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC P0597

Engine Coolant Thermostat Heater Control Circuit

DTC P0598

Engine Coolant Thermostat Heater Control Circuit Low Voltage

DTC P0599

Engine Coolant Thermostat Heater Control Circuit High Voltage

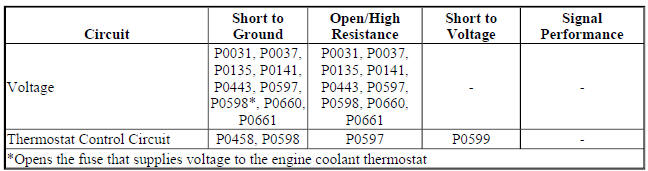

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

The engine control module (ECM) controls the pulse width modulated (PWM) thermostat. The thermostat controls coolant flow and regulates the engine operating temperature. Ignition voltage is supplied directly to the thermostat through a fuse. The ECM controls the thermostat by grounding the control circuit with a solid state device called a driver. The driver is equipped with a feedback circuit that is pulled-up to a voltage. The ECM can determine if the control circuit is open, shorted to ground, or shorted to a voltage by monitoring the feedback voltage.

Conditions for Running the DTCs

  • The ignition is ON, or the engine is running.
  • The DTCs run continuously once the above condition is met

Conditions for Setting the DTC

The ECM detects that the commanded state of the driver and the actual state of the control circuit do not match for greater than 15 seconds.

Action Taken When the DTC Sets

  • DTCs P0597, P0598, and P0599 are Type B DTCs.
  • The engine control module commands the engine cooling fans ON.

Conditions for Clearing the DTC

DTCs P0597, P0598, and P0599 are Type B DTCs.

Diagnostic Aids

  • A low engine coolant level could cause the thermostat heater to overheat and set a DTC.
  • The thermostat has a mechanical fail-safe in case of an electrical condition with the thermostat heater.

    The mechanical thermostat will open at approximately 80ºC (176ºF). The mechanical thermostat will cycle from approximately 85ºC (185ºF) to approximately 102ºC (215ºF).

Reference Information

Schematic Reference

Engine Heating/Cooling Schematics (Encore), Engine Heating/Cooling Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions (LUV) , Powertrain Diagnostic Trouble Code (DTC) Type Definitions (2H0)

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

  1. Verify the coolant in the radiator surge tank is at the correct level and there are no engine coolant leaks.

    Loss of Coolant, and Cooling System Draining and Filling

  • If the coolant level is not correct

Repair as necessary.

  • If the coolant level is correct
  1. Ignition ON.
  2. Verify the parameters listed below do not display Malfunction when commanding the Engine Coolant Thermostat Heater ON and OFF with a scan tool.
  • Engine Coolant Thermostat Heater Control Circuit Low Voltage Test Status
  • Engine Coolant Thermostat Heater Control Circuit Open Test Status
  • Engine Coolant Thermostat Heater Control Circuit High Voltage Test Status
  • If Malfunction is displayed

Refer to Circuit/System Testing.

  • If Malfunction is not displayed
  1. Operate the vehicle within the conditions for running the DTC. You may also operate the vehicle within the conditions that you observed from the freeze frame/failure records data.
  2. Verify the DTC does not set.
  • If any DTC sets

Refer to Circuit/System Testing.

  • If the DTC does not set
  1. All OK.

Circuit/System Testing

  1. Ignition OFF, disconnect the harness connector at the E41 Engine Coolant Thermostat Heater, Ignition ON.
  2. Verify that a test lamp illuminates between the ignition circuit terminal 2 and ground.
  • If the test lamp does not illuminate and the circuit fuse is good
  1. Ignition OFF, remove the test lamp.
  2. Test for less than 2 ohms in the ignition circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms verify the fuse is not open and there is voltage at the fuse.
  • If the test lamp does not illuminate and the circuit fuse is open
  1. Ignition OFF, remove the test lamp.
  2. Test for infinite resistance between the ignition circuit and ground.
  • If less than infinite resistance, repair the short to ground in the circuit.
  • If infinite resistance, test all the components connected to fuse and replace as necessary.
  • If the test lamp illuminates
  1. Connect a test lamp between the ignition circuit terminal 2 and the control circuit terminal 1, command the Engine Coolant Thermostat Heater to Increase to 100 % and Decrease to 0 % with a scan tool.
  2. Verify that a test lamp turns On and OFF.
  • If the test is always ON
  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the K20 Engine Control Module.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V.
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms replace the K20 Engine Control Module.
  • If the test lamp turns On and OFF
  1. Test or replace the E41 Engine Coolant Thermostat Heater.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the diagnostic procedure.

  • Engine Coolant Thermostat Replacement (2H0, LDE, LFH), Engine Coolant Thermostat Replacement (LUV, LUJ) for E41 engine coolant thermostat heater replacement
  • Control Module References for engine control module, replacement, programming, and setup.
