Chevrolet Trax: Adhesive installation of windshields
WARNING: Refer to Glass and Sheet Metal Handling Warning .
- Use a urethane adhesive systems which meet GM Specification GMW 15672.
- Remove all mounds or loose pieces of urethane adhesive from the
pinchweld area.
- If the original window is being reused, remove all but approximately 2
mm (3/64 in) of the existing bead
of urethane adhesive from the pinchweld flange by using a clean utility
knife or razor blade scraper.
- Inspect for any of the following problems in order to help prevent
future breakage of the window:
- The flange of the window opening
- High weld
- Solder spots
- Hardened sealer
- Any other obstruction or irregularity in the pinchweld flange
NOTE: If corrosion of the pinch-weld flange is
present or if sheet metal repairs or
replacements are required, the pinch-weld flange must be refinished in
order to restore the bonding area strength. If paint repairs are required,
mask the flange bonding area prior to applying the color coat in order to
provide a clean primer only surface. Materials such as BASF DE15,
DuPont 2610, Sherwin-Williams PSE 4600 and NP70 and Martin-Semour
5120 and 5130 PPG DP90LF SPIES/ HECKER 3688/8590 - 3688/5150 -4070/5090 STANDOX
11158/13320 - 14653/14980 products are approved for
this application.
- After repairing the opening as indicated, perform the following steps:
- Remove all traces of broken glass from the outer cowl panel, seats,
floor and defroster ducts.
- Clean around the edge of the inside surface of the window with a 50/50
mixture of isopropyl
alcohol and water by volume on a dampened lint free cloth.
- Verify all primers and urethane adhesive are within expiration dates.
Fig. 38: Applying Pinch-Weld Primer
WARNING: Failure to prep the area prior to the application of primer
may cause
insufficient bonding of urethane adhesive. Insufficient bonding of
urethane adhesive may allow unrestrained occupants to be ejected
from the vehicle resulting in personal injury.
- Apply the primer to the surface of the pinch-weld flange (1).
- Allow the pinch-weld primer to dry per auto-adhesive instructions by the
manufacturer's.
- With an assistant, dry fit the window (2) to the opening in order to
determine the correct position.
Fig. 39: Aligning Tape Lines On Window To Body
- Use masking tape in order to mark the locations (1) of the window (2) in
the opening.
- Cut the masking tape in the center and remove the window from the
opening.
Fig. 40: Applying Glass Prep
- Apply glass prep clear to the area approximately 10-16 mm (3/8-5/8 in)
around the entire perimeter of the
window inner surface.
Immediately wipe the glass primed area using a clean, lint-free cloth.
Fig. 41: Applying Glass Prep
- Apply bonded-glass primer and let dry per auto-adhesive instructions by
the manufacturer's.

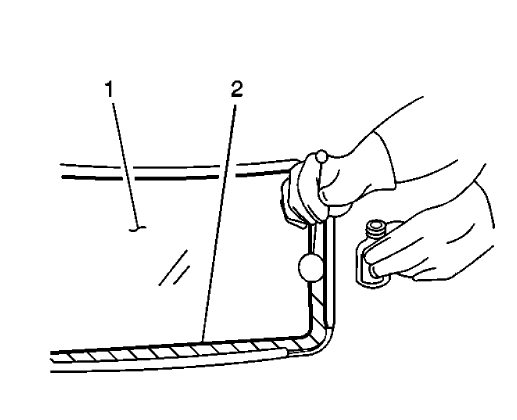

Fig. 42: Applying Glass Primer
- Apply the auto-adhesive primer-application (2) around the perimeter of
the window (1) per auto-adhesive
instructions by the manufacturer's.
- Apply the glass primer black to the same areas that glass prep clear was
applied.
- Allow the glass primer to dry per auto-adhesive instructions by the
manufacturer's.

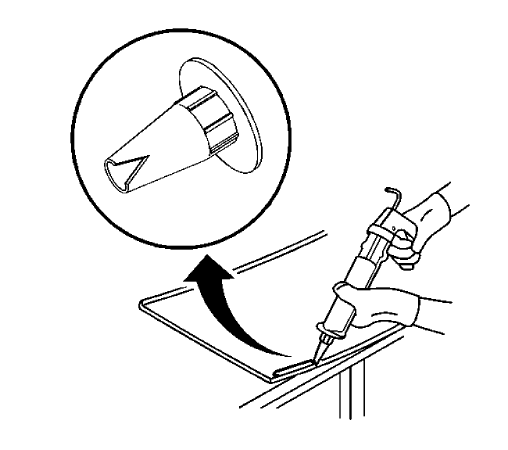

Fig. 43: View Of Modified Applicator Nozzle
- Use a cartridge-type caulking gun in order to apply a smooth, continuous
bead.
Cut the applicator nozzle to provided a V cut to apply the auto-adhesive.
Fig. 44: Applying Urethane Adhesive To Inner Surface Of Window
- Use the edge of the window as a guide for the nozzle in order to apply
the urethane adhesive (1) to the
inner surface of the window (3).
Fig. 45: Window And Retainers
NOTE: If the locating pins were cut off it will be necessary to
tape the window in
place until the auto-adhesive cures per auto-adhesive instructions by the
manufacturer's.
- With an assistant, align the window locating pins (1) to the slots
located in each corner of the pinch-weld
flange. Lower the window (2) to touch the auto-adhesive.
Fig. 46: Pressing Window Into Place
- Gently depress the window on the auto-adhesive bead until the window
reveal molding is seated.
- Tape the window to the body in order to minimize movement and until the
auto-adhesive cures per autoadhesive
instructions by the manufacturer's.
Fig. 47: Cleaning Excess Urethane Adhesive From Body
- Ensure all excess urethane adhesive is cleaned from the body before
water test.
Fig. 48: Performing Water Hose Test
NOTE: Do not direct a hard stream of high pressure water to
the freshly applied
urethane adhesive.
- Use a soft spray of warm water in order to immediately water test the
window.
- Inspect the window for leaks.
- If any leaks are found, use a plastic paddle in order to apply extra
urethane adhesive at the leak point.
- Retest the window for leaks.
WARNING: Insufficient curing of urethane adhesive may allow
unrestrained
occupants to be ejected from the vehicle resulting in personal injury.
- For the moisture-curing type of urethane adhesive, allow a
minimum of 6 hours at 21ºC (70ºF) or greater and with at least
30 percent relative humidity. Allow at least 24 hours for the
complete curing of the urethane adhesive.
- For the chemical-curing type of urethane adhesive, allow a
minimum of 1 hour .
Do NOT physically disturb the repair area until after these minimum
times have elapsed.
- Maintain the following conditions in order to properly cure the urethane
adhesive:
- Partially lower a door window in order to prevent pressure buildups when
closing doors before the
urethane adhesive cures.
- Do not drive the vehicle until the urethane adhesive is cured. Refer to
the above curing times.
- Do not use compressed air in order to dry the urethane adhesive.
- Complete the window installation.
