Chevrolet Trax: Initial Drive Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.

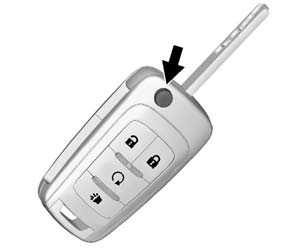

Remote Keyless Entry (RKE) System
The RKE transmitter may work up to
30m (98 ft) away from the vehicle.
Press the key release button to
extend the key blade. The key can
be used for the ignition and all
locks
: Press to unlock the driver door,
all doors, or, if equipped, the locking
fuel door. The hazard warning
flashers may flash.
: Press to lock the doors, or,
if equipped, the locking fuel door.
Lock and unlock feedback can be
personalized. See Vehicle
Personalization
: If equipped, press and hold
briefly to initiate vehicle locator.
Press and hold for at least
three seconds to sound the panic
alarm. Press again to cancel the
panic alarm.
See Keys on page 2-1 and Remote
Keyless Entry (RKE) System
Operation
Remote Vehicle Start
For vehicles with this feature, the
engine can be started from outside
the vehicle.
Starting the Vehicle
- Aim the RKE transmitter at the
vehicle.
- Press and release .
- Immediately after completing
Step 2, press and hold for
several seconds or until the turn
signal lamps flash.
When the engine starts, the parking
lamps will turn on and remain on as
long as the engine is running. The
doors will be locked and the climate
control system may come on.
The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start
To cancel a remote start, do one of
the following:
- Aim the RKE transmitter at the
vehicle and press and hold /
until the parking lamps turn off.
- Turn on the hazard warning
flashers.
- Turn the vehicle on and then off.
See Remote Vehicle Start
