Chevrolet Trax: Ignition coil replacement

Special tools

  • EN-6009 Remover and Installer Ignition Coil

For equivalent regional tools refer to Special Tools .

Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the engine cover. Refer to Refer to Engine Cover Replacement

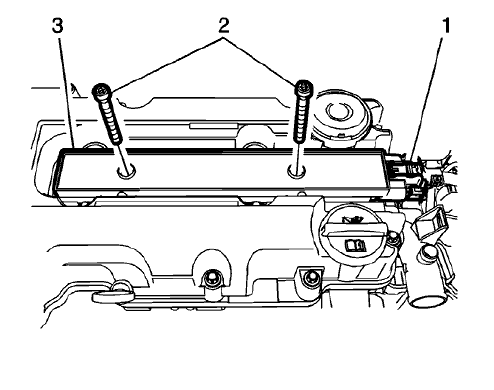

Fig. 84: Ignition Coil Wiring Harness Connector And Fasteners
Fig. 84: Ignition Coil Wiring Harness Connector And Fasteners

  1. Disconnect the ignition coil wiring harness connector (1).
  2. Remove the 2 ignition coil fasteners (2) from the ignition coil assembly (3).

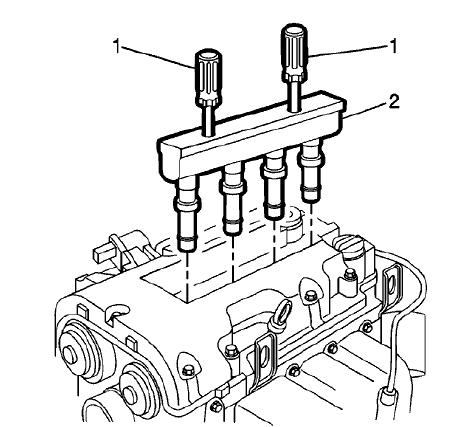

Fig. 85: Ignition Coil Remover/Installer
Fig. 85: Ignition Coil Remover/Installer

  1. Install the EN-6009 remover/installer (1).
  2. Remove the ignition coil (2).
  3. Remove the EN-6009 remover/installer (1).

Installation Procedure

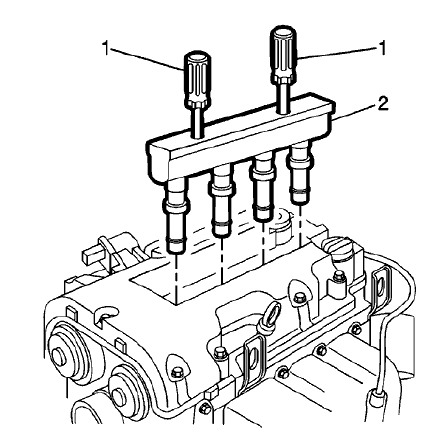

Fig. 86: Ignition Coil Remover/Installer
Fig. 86: Ignition Coil Remover/Installer

  1. Install the EN-6009 remover/installer (1).
  2. Install the ignition coil assembly (2).
  3. Remove the EN-6009 remover/installer (1).

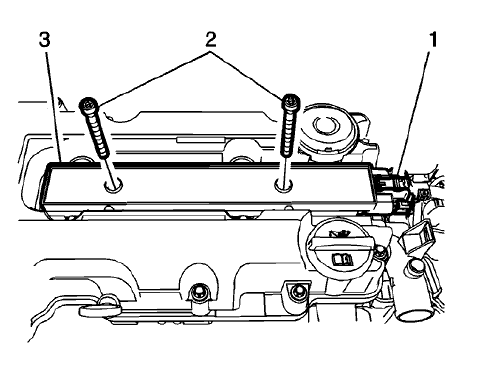

Fig. 87: Ignition Coil Wiring Harness Connector And Fasteners
Fig. 87: Ignition Coil Wiring Harness Connector And Fasteners

  1. Install the 2 ignition coil assembly fasteners (2) and tighten to 8 (71 lb in).
  2. Connect the ignition coil plug (1).
  3. Install the engine cover. Refer to Refer to Engine Cover Replacement .
  4. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

Q38 THROTTLE BODY: Throttle/idle learn

Description

The engine control module (ECM) learns the airflow through the throttle body to ensure the correct idle. The learned airflow values are stored within the ECM. These values are learned to adjust for production variation and will continuously learn during the life of the vehicle to compensate for reduced airflow due to throttle body coking. Anytime the throttle body airflow rate changes, for example due to cleaning or replacing, the values must be relearned.

An engine that had a heavily coked throttle body that has been cleaned or replaced may take several drive cycles to unlearn the coking. To accelerate the process, the scan tool has the ability to reset all learned values back to zero. A new ECM will also have values set to zero

The idle may be unstable or a DTC may set if the learned values do not match the actual airflow.

Conditions for Running the Throttle Learn Procedure

Scan tool Idle Learn or Idle Learn Reset Procedure

  • DTCs P0068, P0101, P0102, P0103, P0106, P0107, P0108, P0116, P0117, P0118, P0120, P0122, P0123, P0128, P0171, P0172, P0174, P0175, P0201-P0208, P0220, P0222, P0223, P0261, P0262, P0264, P0265, P0267, P0268, P0270, P0271, P0273, P0274, P0276, P0277, P0279, P0280, P0282, P0283, P0300-P0308, P0351-P0358, P0496, P0601, P0604, P0606, P060D, P0641, P0651, P1516, P2101, P2119, P2120, P2122, P2123, P2125, P2127, P2128, P2135, P2138, or P2176 are not set.
  • Ignition ON, engine OFF.
  • The vehicle speed sensor (VSS) is 0 km/h (0 mph).

Service Bay/On Road Learn Procedure

  • DTCs P0068, P0101, P0102, P0103, P0106, P0107, P0108, P0116, P0117, P0118, P0120, P0122, P0123, P0128, P0171, P0172, P0174, P0175, P0201-P0208, P0220, P0222, P0223, P0261, P0262, P0264, P0265, P0267, P0268, P0270, P0271, P0273, P0274, P0276, P0277, P0279, P0280, P0282, P0283, P0300-P0308, P0351-P0358, P0496, P0601, P0604, P0606, P060D, P0641, P0651, P1516, P2101, P2119, P2120, P2122, P2123, P2125, P2127, P2128, P2135, P2138, or P2176 are not set.
  • The engine speed is between 450-4,000 RPM.
  • The manifold absolute pressure (MAP) is greater than 5 kPa.
  • The mass air flow (MAF) is greater than 2 g/s.
  • The ignition voltage is greater than 10 volts.

Throttle Learn

Scan Tool Idle Learn or Idle Learn Reset Procedure - Performed after the throttle body is cleaned or replaced

  1. Ignition ON, engine OFF, perform the Idle Learn or Idle Learn Reset in Configuration/Reset or Module Setup.
  2. Engine idling, observe the scan tool Throttle Body Idle Airflow Compensation parameter. The Throttle Body Idle Airflow Compensation value should equal 0 % and the engine should be idling at a normal idle speed.
  3. Clear the DTCs and return to the diagnostic that referred you here.

Service Bay/On Road Idle Learn Procedure - Performed after the ECM is programmed or replaced

NOTE: Do NOT perform this procedure if DTCs are set. Refer to Diagnostic Trouble Code (DTC) List - Vehicle .

  1. Engine idling for 3 min.
  2. Observe the scan tool Desired Idle Speed and the actual Engine Speed parameters.
  3. The ECM will start to learn the new idle cells and the Desired Idle Speed should start to decrease.
  4. Ignition OFF for 60 s.
  5. Start and idle the engine for 3 min.
  6. After the 3 min run time the engine should be idling normal.

NOTE: During the drive cycle the check engine light may come on with idle speed DTCs. If idle speed codes are set, clear codes so the ECM can continue to learn.

  • If the engine idle speed has not been learned the vehicle will need to be driven at speeds above 70 km/h (44 mph) with several decelerations and extended idles.
  1. After the drive cycle, the engine should be idling normally.
  • If the engine idle speed has not been learned, turn OFF the ignition for 60 s and repeat step 6.
  1. Once the engine speed has returned to normal, clear DTCs and return to the diagnostic that referred you here.
