Chevrolet Trax: Folding the Seatback

Either side of the seatback can be folded down for more cargo space.

Fold a seatback only when the vehicle is not moving.

Caution

Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat.

Caution

Folding the rear seatback prior to tilting the seat cushion forward may damage the rear seat.

Always tilt the rear seat cushion forward before folding the seatback.

To fold a seatback down:

  1. Make sure the floor area in front of the rear seats is clear.
  2. Fully lower the head restraint.

    See Head Restraints

  3. Slide the front seats forward and place the front seatbacks in the upright position. See Seat Adjustment   and Reclining Seatbacks

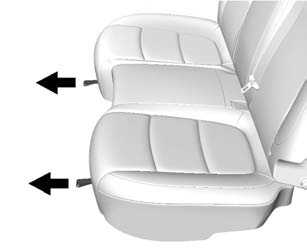

Folding the Seatback

  1. Pull the strap on the front edge of the rear seat cushion to release the cushion. Tilt the seat cushion forward toward the front of the vehicle.

The seat cushion must be tilted forward before the seatback is folded down. Otherwise, the seatback will not fold down properly.

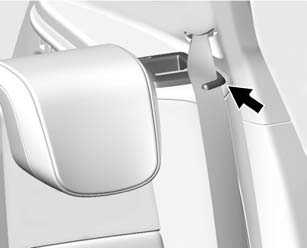

Rear Seat with Retainer Hook on the Seatback
Rear Seat with Retainer Hook on the Seatback

  1. Make sure the safety belt is in the retainer hook on top of the seatback, if equipped.

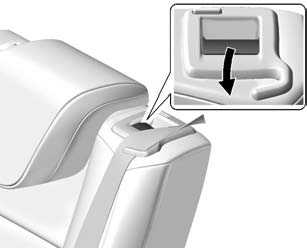

Rear Seat with Retainer Hook on the Seatback
Rear Seat with Retainer Hook on the Seatback

  1. Reach under the belt and pull the lever on top of the seatback to unlock the seatback.

A tab near the seatback lever raises when the seatback is unlocked.

Folding the Seatback

  1. Fold the seatback forward and down.

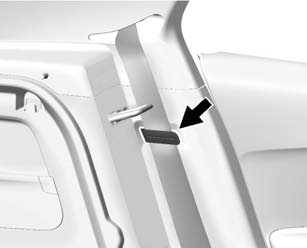

Safety Belt Clip on Side Trim
Safety Belt Clip on Side Trim

  1. Place the outboard safety belt in the safety belt clip (if equipped) on the side trim of the vehicle.
  2. Repeat Steps 1-8 for the other seatback and seat cushion, if desired.
