Chevrolet Trax: Raising the Seatback

Warning

If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there.

Always push and pull on the seatbacks to be sure they are locked.

Warning

A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.

To return the rear seatback to the normal seating position:

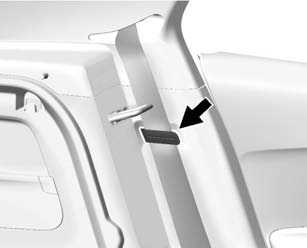

Safety Belt Clip on Side Trim
Safety Belt Clip on Side Trim

  1. Remove the outboard safety belt from the safety belt clip (if equipped) on the side trim of the vehicle.
  2. Lift the seatback and push it rearward to lock it in place. A tab near the seatback lever retracts when the seatback is locked in place.

    Make sure the safety belts are not pinched by the seatback locking mechanism.

    The center rear safety belt may lock when you raise the seatback. If this happens, let the belt go back all the way and start again. If the safety belt is still locked, try again after pulling the seat cushion out.

  3. Push and pull the top of the seatback to be sure it is locked into position.
  4. Return the seat cushion to its original position and push down on the front part of the seat cushion until it latches.

    Make sure the safety belts and safety belt buckles are not trapped under the seat cushion and are properly positioned for use.

  5. Repeat Steps 1-4 for the other seatback and seat cushion, if necessary.

If additional cargo space is not needed, the seatbacks should be kept in the upright, locked position.

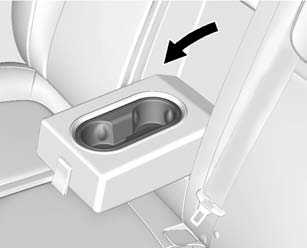

Rear Seat Armrest

Rear Seat Armrest

If available, the rear seat has an armrest in the center of the seatback. Lower the armrest to access the cupholders.

To fold, lift the armrest up and push it rearward until it is flush with the seatback.
