Chevrolet Trax: DTC P0451-P0454

Diagnostic Instructions

• Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
• Review Strategy Based Diagnosis for an overview of the diagnostic approach.
• Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC P0451

Fuel Tank Pressure Sensor Performance

DTC P0452

Fuel Tank Pressure Sensor Circuit Low Voltage

DTC P0453

Fuel Tank Pressure Sensor Circuit High Voltage

DTC P0454

Fuel Tank Pressure Sensor Circuit Intermittent

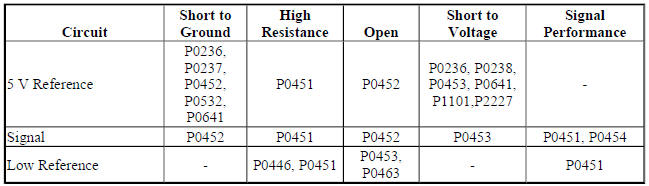

Diagnostic Fault Information

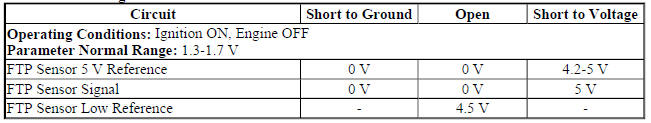

Typical Scan Tool Data

FTP Sensor Voltage

Circuit/System Description

The Fuel Tank Pressure (FTP) sensor measures pressure or vacuum in the evaporative emission (EVAP) system. The engine control module (ECM) supplies a 5 V reference and a low reference circuit to the FTP sensor. The FTP sensor signal voltage varies depending on EVAP system pressure or vacuum. The controller also uses this FTP signal to determine atmospheric pressure for use in the engine-off small leak test, DTC P0442. Before using this signal as an atmospheric reference it must first be re-zeroed.

Conditions for Running the DTC

P0451

• DTC P0451 runs only when the engine-off natural vacuum small leak test, P0442, executes.
• The number of times this test runs can range from 0-2 per engine-off period. The length of the test can be up to 10 min.

P0452 and P0453

DTC P0452 and P0453 run continuously when the ignition is ON.

P0454

• DTC P0454 runs only when the engine-off natural vacuum small leak test, P0442, executes and the EVAP Vent Solenoid Valve is closed.
• This test can run once per engine-off period. The length of the test can be up to 10 min.
• A refueling event is not detected. A refueling event is confirmed if the fuel level has a persistent change of 10 % for 30 s.

Conditions for Setting the DTC

P0451

This DTC will set if the controller is unable to re-zero the FTP sensor voltage within a calibrated range during the engine-off small leak test, P0442

P0452

The FTP sensor voltage is less than 0.15 V for more than 10 s.

P0453

The FTP sensor voltage is more than 4.9 V for more than 10 s.

P0454

If, during the engine-off natural vacuum small leak test, P0442, the ECM detects an abrupt FTP signal change, other than a refueling event, this DTC will set. An abrupt change is defined as a change of 0.45 in H2O in the span of 1 s but less than 1 in H2O in 12.5 ms.

Action Taken When the DTC Sets

• DTCs P0451 and P0454 are Type A DTCs.
• DTCs P0452 and P0453 are Type B DTCs.

Conditions for Clearing the MIL/DTC

• DTCs P0451 and P0454 are Type A DTCs.
• DTCs P0452 and P0453 are Type B DTCs.

Diagnostic Aids

P0451 and P0454

• A restriction in the EVAP canister or vent lines could prevent fuel vapor pressure from bleeding off fast enough. If the vent system cannot bleed off pressure fast enough, the re-zero procedure may not complete successfully, which could cause this code to set.
• Ensure that the reference port on the FTP sensor is unobstructed.
• An FTP sensor that is skewed or does not have a linear transition from low to high may cause this code to set. Scan tool output controls, snapshot, and plot functions can help detect erratic sensor response. To test the sensor signal under vacuum conditions, use the Quick Snapshot and the Purge/Seal functions to capture data while commanding purge to 20 %, then plot the data to look for erratic sensor operation. A similar test can be done for the pressure side of the sensor operation by applying pressure with the GE 41413-A while taking a snapshot.

Reference Information

Schematic Reference

Engine Controls Schematics (Encore) , Engine Controls Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Evaporative Emission Control System Description

Electrical Information Reference

• Circuit Testing
• Connector Repairs
• Testing for Intermittent Conditions and Poor Connections
• Wiring Repairs

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions (LUV) , Powertrain Diagnostic Trouble Code (DTC) Type Definitions (2H0)

Scan Tool Reference

Control Module References for scan tool information

Special Tools

GE 41413-A Evaporative Emission System Tester (EEST)

For equivalent regional tools, refer to Special Tools (Diagnostic Tools)

Circuit/System Verification

1. Remove the fuel cap.
2. Ignition ON, engine OFF.
3. Verify the scan tool FTP sensor parameter is between 1.3 and 1.7 V.

• If not between 1.3-1.7 V

Refer to Circuit/System Testing

• If between 1.3-1.7 V

4. All OK.

Circuit/System Testing

1. Ignition OFF, all vehicle systems OFF, this may take up to 2 min, for all vehicle systems to power down.

   Disconnect the harness connector at the B150 Fuel Tank Pressure Sensor.

2. Test for less than 5 ohms of resistance between the low reference circuit terminal 2 and ground.

• If 5 ohms or greater

1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
2. Test for less than 2 ohms in the low reference circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K20 Engine Control Module.
• If less than 5 ohms

3. Ignition ON.
4. Test for 4.8-5.2 V between the 5 V reference circuit terminal 3 and ground.

• If less than 4.8 V

1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
2. Test for infinite resistance between the 5 V reference circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance

3. Test for less than 2 ohms in the 5 V reference circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K20 Engine Control Module.
• If greater than 5.2 V

1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module, ignition ON.
2. Test for less than 1 V between the 5 V reference circuit and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K20 Engine Control Module.
• If between 4.8-5.2 V

5. Verify the scan tool FTP parameter is less than 0.2 V.

• If 0.2 V or greater

1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module, ignition ON
2. Test for less than 1 V between the signal circuit terminal 1 and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K20 Engine Control Module.
• If less than 0.2 V

6. Install a 3 A fused jumper wire between the signal circuit terminal 1 and the 5 V reference circuit terminal 3.
7. Verify the scan tool FTP sensor parameter is greater than 4.7 V.

• If 4.7 V or less

1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
2. Test for infinite resistance between the signal circuit terminal 1 and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance

3. Test for less than 2 ohms in the signal circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K20 Engine Control Module.
• If greater than 4.7 V

8. Test or replace the B150 Fuel Tank Pressure Sensor.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

• Fuel Tank Pressure Sensor Replacement
• Control Module References for ECM replacement, setup, and programming.
