Chevrolet Trax: Information Displays

Driver Information Center (DIC)

If equipped, the DIC displays information about your vehicle.

It also displays warning messages if a system problem is detected. See Vehicle Messages on page 5-25. All messages appear in the DIC display in the instrument cluster. See Trip Computer and Vehicle Messages

DIC Operation and Displays

The DIC has different displays which can be accessed by using the DIC buttons on the turn signal lever on the left side of the steering wheel. The DIC displays trip, fuel, and warning messages if a system problem is detected.

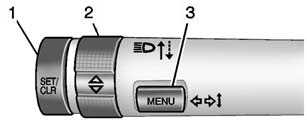

DIC Buttons

1. SET/CLR: Press to set or clear the menu item displayed. This is not used to reset the trip odometer. To reset the trip odometer, use the reset button on the tachometer in the instrument cluster.
2.   (Thumbwheel): Use to scroll through the items in each menu.
3. MENU: Press to display the DIC menus. This button is also used to return to or exit the last screen displayed on the DIC.

DIC Menu Items

Press MENU to view the DIC menus. Some items display in the upper display area, some in the lower display area, and others use both the upper and lower display areas. Use to scroll through the menu items. Not all items are available on every vehicle. The following is a list of all possible menu items:

• Remaining Oil Life
• Units
• Language
• Compass
• Tire Learn

Remaining Oil Life

This menu is not available while the vehicle is moving. This display shows an estimate of the oil's remaining useful life. If 99  % is displayed, that means 99% of the current oil life remains.

When the remaining oil life is low, the   % CHANGE message will appear on the display. The oil should be changed as soon as possible. See Engine Oil on page 10-9. In addition to the engine oil life system monitoring the oil life, additional maintenance is recommended in the Maintenance Schedule. See Maintenance Schedule

Remember, the oil life display must be reset after each oil change. It will not reset itself. Also, be careful not to reset the oil life display accidentally at any time other than when the oil has just been changed.

It cannot be reset accurately until the next oil change. To reset the engine oil life system, press the SET/CLR button while the oil life display is active. See Engine Oil Life System

Units

This menu is not available while the vehicle is moving. Press SET/CLR while the unit display is active and move to change units when UNIT SET is displayed. Press SET/ CLR to confirm the setting. Select 1, 2, or 3 for the unit display. 1 is Imperial units, 2 is US units, and 3 is metric units. This will change the displays on the cluster and DIC to the type of measurements selected.

Language

This menu is not available while the vehicle is moving. Press SET/CLR while the language display is active and move to change the language of the displays when LANG SET is displayed. Select 1 or 2 for the language display. 1 is Alphabet and 2 is Arabic Numeral.

Press SET/CLR to confirm the setting.

Compass

See Compass for information on setting the compass.

Tire Learn

This display allows for matching of the TPMS sensors. See Tire Pressure Monitor System 10-50 and Tire Pressure Monitor Operation
