Engine controls and fuel - 1.4l - Diagnostic information and procedures / DTC P0201, P0202, P0203, P0204, P0261, P0262, P0264, P0265, P0267, P0268,
P0270, OR P0271
Diagnostic Instructions
- Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
- Review Strategy Based Diagnosis for an overview of the diagnostic
approach.
- Diagnostic Procedure Instructions provides an overview of each
diagnostic category
DTC Descriptors
DTC P0201
Cylinder 1 Injector Control Circuit
DTC P0202
Cylinder 2 Injector Control Circuit
DTC P0203
Cylinder 3 Injector Control Circuit
DTC P0204
Cylinder 4 Injector Control Circuit
DTC P0261
Cylinder 1 Injector Control Circuit Low Voltage
DTC P0262
Cylinder 1 Injector Control Circuit High Voltage
DTC P0264
Cylinder 2 Injector Control Circuit Low Voltage
DTC P0265
Cylinder 2 Injector Control Circuit High Voltage
DTC P0267
Cylinder 3 Injector Control Circuit Low Voltage
DTC P0268
Cylinder 3 Injector Control Circuit High Voltage
DTC P0270
Cylinder 4 Injector Control Circuit Low Voltage
DTC P0271
Cylinder 4 Injector Control Circuit High Voltage

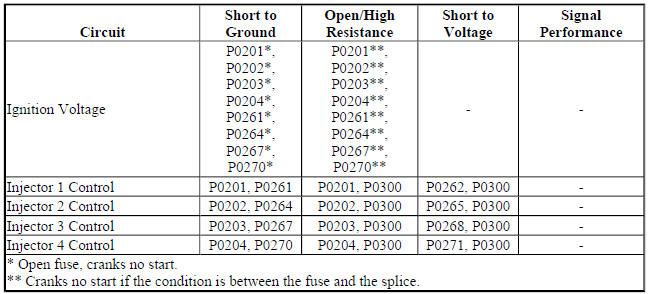

Diagnostic Fault Information
![Diagnostic Fault Information](images/manuals/4484/index212(3).jpg)
Circuit/System Description
The engine control module (ECM) enables the appropriate fuel injector pulse
for each cylinder. Ignition voltage
is supplied to the fuel injectors. The ECM controls each fuel injector by
grounding the control circuit via a solid
state device called a driver. The ECM monitors the status of each driver. If the
ECM detects an incorrect
voltage for the commanded state of the driver, a fuel injector control circuit
DTC sets.
Conditions for Running the DTC
- The engine is running for greater than 1 s.
- The ignition voltage is greater than 11 V.
- The DTCs run continuously when the above conditions are met for greater
than 5 s.
Conditions for Setting the DTC
The control module detects an incorrect voltage on the fuel injector control
circuit for greater than 5 s.
Action Taken When the DTC Sets
DTCs P0201, P0202, P0203, P0204, P0261, P0262, P0264, P0265, P0267, P0268,
P0270, and P0271 are Type
B DTCs.
Conditions for Clearing the DTC
DTCs P0201, P0202, P0203, P0204, P0261, P0262, P0264, P0265, P0267, P0268,
P0270, and P0271 are Type
B DTCs.
Diagnostic Aids
Performing the Fuel Injector Diagnosis may help isolate an intermittent
condition. Refer to Fuel Injector
Diagnosis .
Reference Information
Schematic Reference
Engine Controls Schematics (Encore) , Engine Controls Schematics (Trax)
Connector End View Reference
WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS -
INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT
CONNECTOR END VIEWS - INDEX - TRAX
Electrical Information Reference
- Circuit Testing
- Connector Repairs
- Testing for Intermittent Conditions and Poor Connections
- Wiring Repairs
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions (LUV) ,
Powertrain Diagnostic Trouble
Code (DTC) Type Definitions (2H0)
Scan Tool Reference
Control Module References for scan tool information
Special Tool
CH 34730-2C Noid Light , if available
Circuit/System Verification
- Engine cranking or running.
- Verify the scan tool parameters listed below do not display Malfunction.
- Cylinder 1-4 Injector Control Circuit Low Voltage Test Status
- Cylinder 1-4 Injector Control Circuit Open Test Status
- Cylinder 1-4 Injector Control Circuit High Voltage Test Status
- If Malfunction is displayed
Refer to Circuit/System Testing.
- If Malfunction is not displayed
- Operate the vehicle within the Conditions for Running the DTC. You may
also operate the vehicle within
the conditions that you observed from the Freeze Frame/Failure Records data.
- Verify the DTC does not set.
Refer to Circuit/System Testing.
- All OK.
Circuit/System Testing
- Ignition OFF, disconnect the harness connector at the appropriate Q17
Fuel Injector, ignition ON.
- Verify a test lamp illuminates between the ignition circuit terminal 1
and ground.
- If the test lamp does not illuminate and the circuit fuse is good
- Ignition OFF, remove the test lamp.
- Test for less than 2 ohms in the ignition circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, verify the fuse is not open and there is voltage at
the fuse.
- If the test lamp does not illuminate and the circuit fuse is open
- Ignition OFF, remove the test lamp, and disconnect all components on the
circuit.
- Test for infinite resistance between the ignition circuit and ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance
- Replace the fuse, ignition ON.
- Verify the fuse is good after connecting each of the components one at a
time.
- If the fuse opens, replace the component that opens the fuse when
connected.
- If the fuse is good, all OK.
- If the test lamp illuminates
- Ignition OFF, connect the test lamp to the affected fuel injector
connector.
- Engine cranking.
- Verify the test lamp turns ON and OFF.
- If the test lamp is always OFF
- Ignition OFF, remove the test lamp, disconnect the X2 harness connector
at the K20 Engine
Control Module, ignition ON.
- Test for less than 1 V between the control circuit and ground.
- If 1 V or greater, repair the short to voltage on the circuit.
- If less than 1 V
- Ignition OFF.
- Test for less than 2 ohms in the control circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K20 Engine Control Module.
- If the test lamp is always ON
- Ignition OFF, remove the test lamp, disconnect the X2 harness connector
at the K20 Engine
Control Module.
- Test for infinite resistance between the control circuit and ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance, replace the K20 Engine Control Module.
- If the test lamp turns ON and OFF
- Test or replace the appropriate Q17 Fuel Injector.
Component Testing
Fuel Injector Diagnosis
Repair Instructions
Perform the Diagnostic Repair Verification after completing the repair.
- Fuel Injector Replacement
- Control Module References for Engine Control Module replacement,
programming, and setup
