Chevrolet Trax: DTC B2575 OR B2699

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B2575 01

Headlamps Control Circuit Short to Battery

DTC B2575 02

Headlamps Control Circuit Short to Ground

DTC B2575 04

Headlamps Control Circuit Open

DTC B2699 01

Right Headlamp Control Circuit Short to Battery

DTC B2699 02

Right Headlamp Control Circuit Short to Ground

DTC B2699 04

Right Headlamp Control Circuit Open

Diagnostic Fault Information

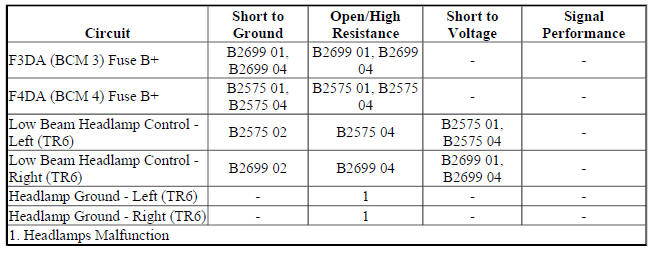

Diagnostic Fault Information

Circuit/System Description

With the headlamp switch in the ON position, the headlamp switch headlamp ON signal circuit is grounded through the headlamp switch. The body control module (BCM) responds by applying battery positive voltage to the left and right low beam headlamp control circuits illuminating the low beam headlamps.

Conditions for Running the DTC

  • Battery voltage must be between 9-16 V.
  • Low beam headlamps ON.

Conditions for Setting the DTC

DTC B2575 01 and B2575 04

  • The BCM detects a short to voltage or an open/high resistance in the left low beam headlamp control circuit.
  • The BCM detects a short to ground or an open/high resistance in the F4DA (BCM 4) fuse B+ circuit.

DTC B2575 02

The BCM detects a short to ground in the left low beam headlamp control circuit.

DTC B2699 01 and B2699 04

  • The BCM detects a short to voltage or an open/high resistance in the right low beam headlamp control circuit.
  • The BCM detects a short to ground or an open/high resistance in the F3DA (BCM 3) fuse B+ circuit

DTC B2699 02

The BCM detects a short to ground in the right low beam headlamp control circuit.

Actions Taken When the DTC Sets

  • When DTC B2575 sets, the left low beam headlamp will be inoperative.
  • When DTC B2699 sets, the right low beam headlamp will be inoperative

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

  • Headlights/Daytime Running Lights (DRL) Schematics (Encore) , Headlights/Daytime Running Lights (DRL) Schematics (Trax)
  • Body Control System Schematics (Encore) , Body Control System Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

DTC B2575

  1. Ignition OFF, disconnect the X1 harness connector at the K9 Body Control Module, ignition ON.
  2. Verify a test lamp illuminates between the B+ circuit terminal 2 and ground.
  • If the test lamp does not illuminate and the circuit fuse is good
  1. Ignition OFF.
  2. Test for less than 2 ohms in the B+ circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, verify the fuse is not open and there is voltage at the fuse.
  • If the test lamp does not illuminate and the circuit fuse is open
  1. Ignition OFF.
  2. Test for infinite resistance between the B+ circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the K9 Body Control Module.
  • If the test lamp illuminates
  1. Ignition OFF, connect the X1 harness connector at the K9 Body Control Module.
  2. Ignition OFF, exterior lamps OFF, disconnect the harness connector at the E13L Headlamp - Left.
  3. Test for less than 5 ohms between the ground circuit terminal C and ground.
  • If 5 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 5 ohms
  1. Connect a test lamp between the control circuit terminal A and ground, ignition ON.
  2. Verify the test lamp turns ON and OFF when commanding the Left Low Beam/Daytime Running Lamp ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If the test lamp is always ON
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit terminal and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If the test lamp turns ON and OFF
  1. Test or replace the E13L Headlamp Bulb - Left.

DTC B2699

  1. Ignition OFF, disconnect the X1 harness connector at the K9 Body Control Module, ignition ON.
  2. Verify a test lamp illuminates between the B+ circuit terminal 3 and ground.
  • If the test lamp does not illuminate and the circuit fuse is good
  1. Ignition OFF.
  2. Test for less than 2 ohms in the B+ circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, verify the fuse is not open and there is voltage at the fuse.
  • If the test lamp does not illuminate and the circuit fuse is open
  1. Ignition OFF.
  2. Test for infinite resistance between the B+ circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the K9 Body Control Module.
  • If the test lamp illuminates
  1. Ignition OFF, connect the X1 harness connector at the K9 Body Control Module.
  2. Ignition OFF, exterior lamps OFF, disconnect the harness connector at the E13R Headlamp - Right.
  3. Test for less than 5 ohms between the ground circuit terminal C and ground.
  • If 5 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 5 ohms
  1. Connect a test lamp between the control circuit terminal A and ground, ignition ON.
  2. Verify the test lamp turns ON and OFF when commanding the Right Low Beam/Daytime Running Lamp ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If the test lamp is always ON
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit terminal and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If the test lamp turns ON and OFF
  1. Test or replace the E13R Headlamp Bulb - Right.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Headlamp Bulb Replacement - Left Side (Trax High Beam) , Headlamp Bulb Replacement - Left Side (Trax Low Beam)
  • Headlamp Bulb Replacement - Right Side (High Beam) , Headlamp Bulb Replacement - Right Side (Low Beam)
  • Control Module References for BCM replacement, programming, and setup
