Chevrolet Trax: DTC B1480

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B1480 02

Battery Rundown Protection Circuit Short to Ground

Diagnostic Fault Information

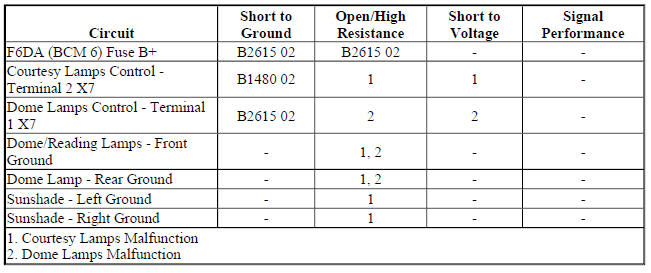

Diagnostic Fault Information

Circuit/System Description

The body control module (BCM) supplies battery voltage to the reading lamps and sunshade mirror lamps via the courtesy lamp control circuit. The front reading lamps are controlled by an individual switch that is activated by the operator when additional cabin lighting is required. In the event that the reading lamps or sunshade lamps were to remain illuminated for more than 10 minutes with the ignition switch in the OFF position and no doors opened, the BCM will deactivate the courtesy lamp control circuit to prevent total battery discharge.

Conditions for Running the DTC

Battery voltage must be between 9-16 V.

Conditions for Setting the DTC

The BCM detects a short to ground in the courtesy lamps control circuit terminal 2 X7.

Actions Taken When the DTC Sets

The BCM will disable the circuit and the reading/sunshade lamps will be inoperative.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

  • Interior Lights Schematics (Encore) , Interior Lights Schematics (Trax)
  • Body Control System Schematics (Encore) , Body Control System Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Interior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

  1. Ignition OFF, exterior lamps OFF, disconnect the harness connectors at the components listed below.
  • E37A Dome/Reading Lamps
  • E36AH Dome Lamp
  • A3L Sunshade - Left
  • A3R Sunshade - Right
  1. Connect a test lamp between the appropriate control circuit terminal listed below and ground.
  • E37A Dome/Reading Lamps - terminal 1
  • E36AH Dome Lamp - terminal 4
  • A3L Sunshade - Left terminal A
  • A3R Sunshade - Right terminal A
  1. Verify the test lamp turns ON and OFF when commanding the Inadvertent Load ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If the test lamp is always ON
  1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit terminal and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If the test lamp turns ON and OFF
  1. Test or replace the inoperative courtesy lamp.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Dome Lamp Bulb Replacement
  • Center Reading Lamp Replacement
  • Center Reading Lamp Bulb Replacement
  • Control Module References for BCM replacement, programming, and setup

DTC B2530

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B2530 01

Front Fog Lamps Control Circuit Short to Battery

DTC B2530 02

Front Fog Lamps Control Circuit Short to Ground

DTC B2530 04

Front Fog Lamps Control Circuit Open

Diagnostic Fault Information

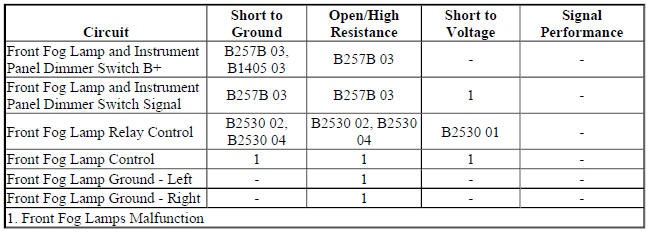

Diagnostic Fault Information

Circuit/System Description

The front fog lamp switch is an input to the body control module (BCM) and is contained in the headlamp switch assembly. The BCM supplies voltage to the front fog lamp switch via the front fog lamp and instrument panel dimmer switch B+ circuit. When the front fog lamp switch is pressed, voltage from the B+ circuit is pulled down through the front fog lamp switch resistor. The front fog lamp resistor is part of the resistor ladder that also provides the dimming signals for the instrument panel dimmer switches. The BCM receives the voltage signal through the front fog lamp and instrument panel dimmer switch signal circuit.

The front fog lamp relay is supplied with battery voltage at all times. The front fog lamp switch signal circuit is grounded momentarily by pressing the front fog lamp switch. The body control module (BCM) energizes the front fog lamp relay by applying ground to the front fog lamp relay control circuit. When the front fog lamp relay is energized, the relay switch contacts close and battery voltage is applied through the front fog lamp fuse to the front fog lamp control circuit which illuminates the front fog lamps.

Conditions for Running the DTC

  • Battery voltage must be between 9-16 V.
  • Front fog lamps ON.

Conditions for Setting the DTC

DTC B2530 01

The BCM detects a short to voltage in the front fog lamp relay control circuit for 5 seconds or greater.

DTC B2530 02

The BCM detects a short to ground in the front fog lamp relay control circuit.

DTC B2530 04

The BCM detects an open in the front fog lamp relay control circuit.

Actions Taken When the DTC Sets

DTC B2530 01 and B2530 04

The front fog lamps will not operate when the park lamps are ON and the front fog lamp switch is active.

DTC B2530 02

The front fog lamps always ON.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

Fog Lights Schematics (Encore) , Fog Lights Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

  1. Ignition OFF, disconnect the X5 harness connector at the K9 Body Control Module, ignition ON.
  2. Verify a test lamp illuminates between the control circuit terminal 13 and ground.

If the test lamp does not illuminate

  1. Ignition OFF, disconnect the X2 harness connector at the X50A Fuse Block - Underhood.
  2. Test for infinite resistance between the control circuit terminal and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the X50A Fuse Block - Underhood.
  • If the test lamp illuminates
  1. Ignition OFF, connect a 3 A fused jumper between the control circuit terminal 13 and ground.
  2. Remove the front fog lamp fuse at the X50A Fuse Block - Underhood, ignition ON.
  3. Verify a test lamp illuminates between the front fog lamp fuse B+ switch control terminal and ground.
  • If the test lamp does not illuminate
  1. Ignition OFF, disconnect the X2 harness connector at the X50A Fuse Block - Underhood, ignition ON.
  2. Test for less than 1 V between the control circuit terminal 13 and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the X50A Fuse Block - Underhood

If the test lamp illuminates

  1. Test or replace the K9 Body Control Module.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Front Compartment Fuse Block Replacement
  • Control Module References for BCM replacement, programming, and setup
