Chevrolet Trax: DTC B2545

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B2545 01

Backup Lamps Circuit Short to Battery

DTC B2545 02

Backup Lamps Circuit Short to Ground

DTC B2545 04

Backup Lamps Circuit Open

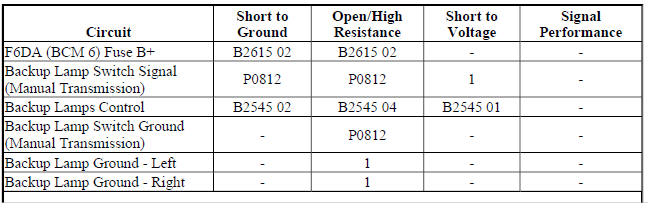

Diagnostic Fault Information

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

Automatic Transmission

With the engine running and the transmission in the reverse position, the transmission control module (TCM) sends a serial data message to the body control module (BCM). The message indicates that the gear selector is in the reverse position. The BCM applies battery voltage to the backup lamps control circuit illuminating the backup lamps. Once the driver moves the gear selector out of the reverse position, a message is sent by the TCM via serial data requesting the BCM to remove battery voltage from the backup lamps control circuit. The engine must be running for the backup lamps to operate.

Manual Transmission

The engine control module (ECM) provides a signal circuit to the backup lamp switch which is permanently grounded. With the ignition ON and the transmission in the reverse position, the backup lamp switch signal circuit is pulled low and the ECM responds by sending a serial data message to the body control module (BCM). The message indicates that the gear selector is in the reverse position. The BCM applies battery voltage to the backup lamps control circuit illuminating the backup lamps. Once the driver moves the gear selector out of the reverse position, a message is sent by the ECM via serial data requesting the BCM to remove battery voltage from the backup lamps control circuit.

Conditions for Running the DTC

  • Battery voltage must be between 9-16 V.
  • Engine RUNNING.
  • Transmission placed in REVERSE gear.

Conditions for Setting the DTC

DTC B2545 01

The BCM detects a short to voltage in the backup lamps control circuit.

DTC B2545 02

The BCM detects a short to ground in the backup lamps control circuit.

DTC B2545 04

The BCM detects an open/high resistance in the backup lamps control circuit.

Actions Taken When the DTC Sets

DTC B2545 02 and B2545 04

The backup lamps will not operate.

DTC B2545 01

The backup lamps are always ON.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.

    A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

  • Exterior Lights Schematics (Encore) , Exterior Lights Schematics (Trax)
  • Body Control System Schematics (Encore) , Body Control System Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

  1. Ignition OFF, exterior lamps OFF, rear hatch latch latched, remove the appropriate E5 Backup Lamp bulb at the appropriate E42 Tail Lamp Assembly.
  2. Test for less than 5 ohms between the ground circuit at the socket terminal and ground.
  • If 5 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 5 ohms
  1. Connect a test lamp between the control circuit at the socket terminal and ground, ignition ON.
  2. Verify the test lamp turns ON and OFF when commanding the Backup Lamps ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If the test lamp is always ON
  1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit terminal and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If the test lamp turns ON and OFF
  1. Test or replace the appropriate E5 Backup Lamp.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Backup Lamp Bulb Replacement (Trax) , Backup Lamp Bulb Replacement (Encore)
  • Control Module References for BCM replacement, programming, and setup
