Chevrolet Trax: Clutch pedal position sensor learn

NOTE:

The clutch pedal position (CPP) sensor learn procedure is required when the following service procedures have been performed regardless of whether DTC P080A is set:

  • An engine control module (ECM) replacement
  • A CPP sensor replacement
  • Any repairs which affect the CPP sensor relationship
  1. Install a scan tool.
  2. Monitor the ECM for DTCs with a scan tool. If other DTCs are set, except DTC P080A, refer to Diagnostic Trouble Code (DTC) List - Vehicle for the applicable DTC that set.
  3. With a scan tool, select Clutch Pedal Position Learn under Module Setup in Manual Transmission, and perform the following instructions displayed on the scan tool screen.

NOTE: The CPP sensor learn procedure cannot be performed more than once per ignition cycle. The clutch pedal needs to be fully depressed and held steady throughout this procedure in order to perform a correct learning.

  1. The scan tool will display under CPP Learn Status: Not Learned, In Process, Complete, Fail - Low Volt, Fail - High Volt, or Fail Moving. The scan tool will display under CPP Learn Status Complete if the process was successful.
  2. If the scan tool indicates that DTC P080A ran and passed this ignition the CPP sensor learn procedure is complete. If the scan tool indicates DTC P080A failed or did not run this ignition, refer to DTC P080A, .

    If any other DTC is set, refer to Diagnostic Trouble Code (DTC) List - Vehicle for the applicable DTC.

  3. Turn OFF the ignition for 30 s after the learn procedure has successfully completed in order to store the CPP sensor variation values in ECM history.

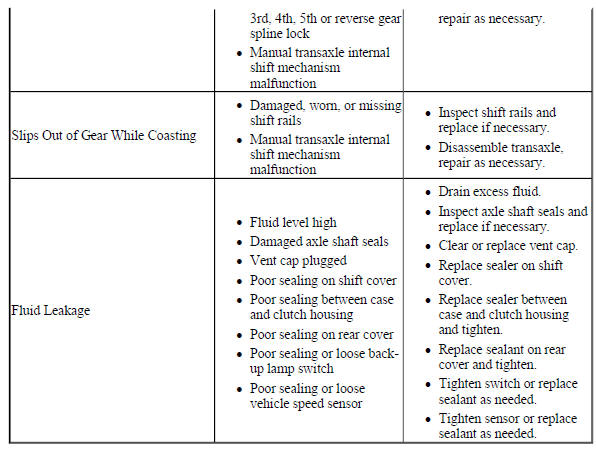

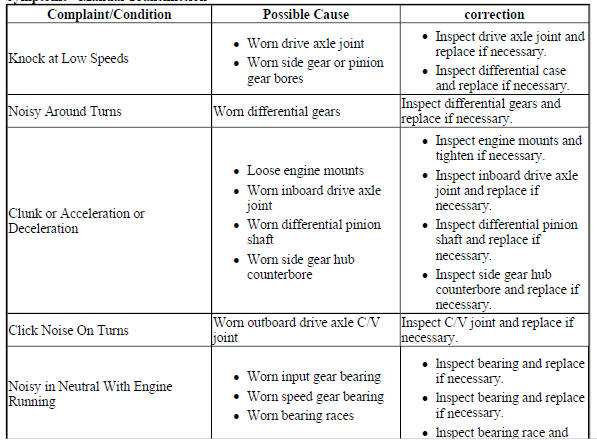

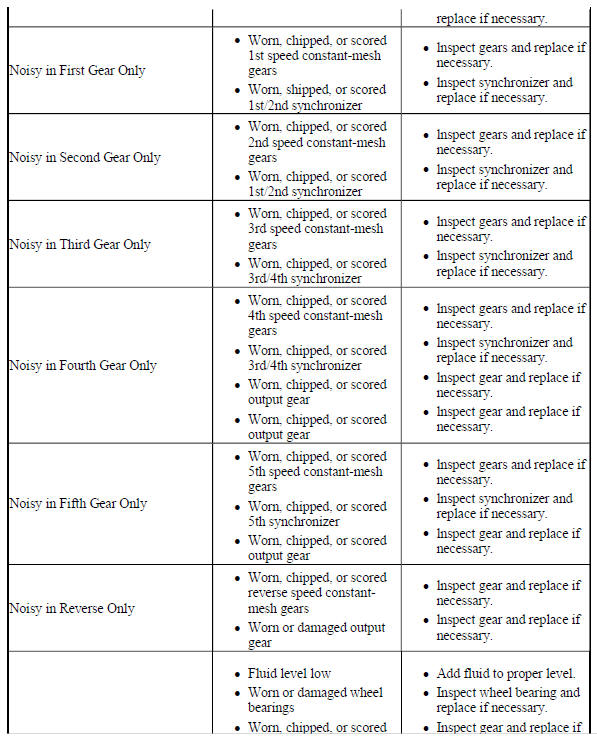

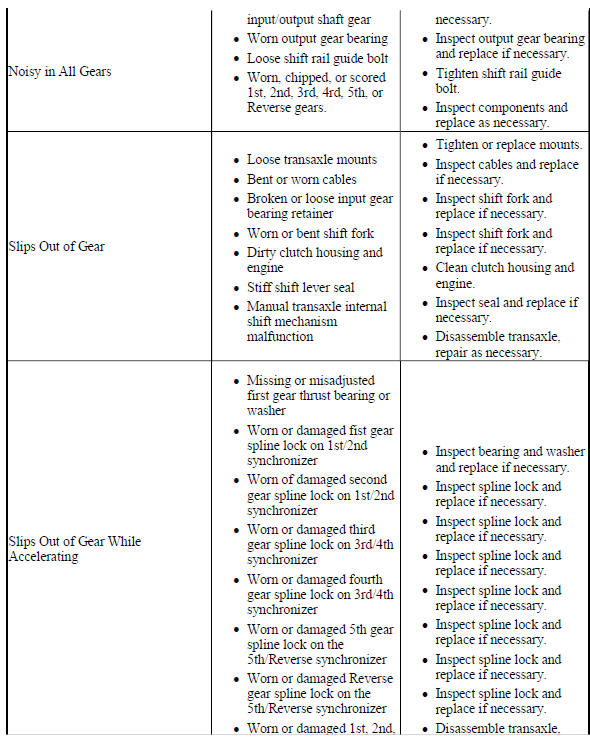

SYMPTOMS - MANUAL TRANSMISSION

Symptoms - Manual Transmission

SYMPTOMS - MANUAL TRANSMISSION

SYMPTOMS - MANUAL TRANSMISSION

SYMPTOMS - MANUAL TRANSMISSION

SYMPTOMS - MANUAL TRANSMISSION

TRANSMISSION SHIFTS HARD

Diagnostic Aids

An intermittent hard shift may be caused by an intermittent clutch condition.

Test Description

The numbers below refer to the step numbers on the diagnostic table.

3

A static shift test is performed by shifting into all of the gear positions with the engine not operating.

While performing the test one should note how the shift lever movement is felt. Also while shifting from one gear to the other feel for binding in the shift rails. You should be able to feel the detent plungers operating when coming out of a gear and going into a gear.

6

A dynamic shift test is performed by shifting into the gear positions with the engine operating. Test for the correct mesh of the synchronizers and for the clutch releasing correctly. When shifting into and out of a gear, feel for the shift detent plungers and for the synchronizers sleeve for moving freely.

8

The transmission uses a synthetic transmission fluid that allows proper synchronizer operation. The incorrect fluid may cause hard shifting by varnish build-up, or not enough lubrication for proper synchronizer operation.

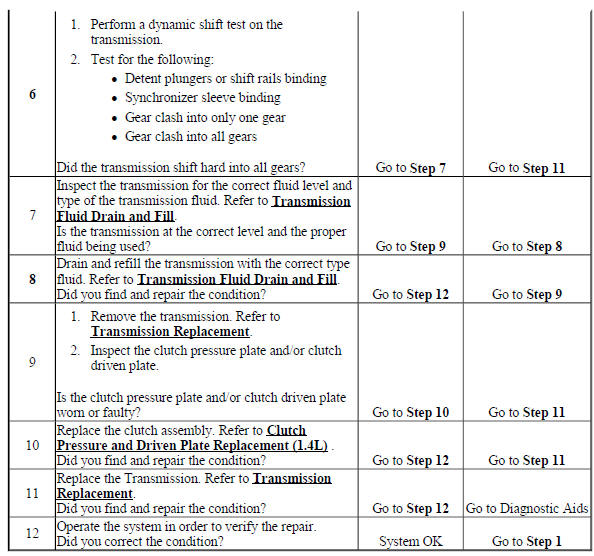

Transmission Shifts Hard

Transmission Shifts Hard

Transmission Shifts Hard

TRANSMISSION GEAR CLASH WHEN SHIFTING GEARS

Diagnostic Aids

Gear clashing may be caused by shifting at too high of an engine RPM or by rushing the shift. If gear clashing is occurring in more than one gear, the clutch may not be releasing properly for proper synchronizer operation.

Test Description

The numbers below refer to the step numbers on the diagnostic table.

2

This step tests for the proper releasing of the clutch. If the clutch reserve is not proper, the mainshaft gears may still be turning causing the gear clashing.

5

This step inspects for the proper transaxle fluid. A special fluid is required for the correct lubrication of the synchronizers.

7

A static shift test is performed by shifting into all of the gear positions with the engine not operating.

While performing the test, you should note how the shift lever movement is felt. Also, while shifting from one gear to another, feel for binding in the shift rails. You should be able to feel the detent plungers operating when coming out of a gear and going into a gear. Excessive play in the gear shift lever may prevent the shift forks from fully engaging the synchronizer.

10

A dynamic shift test is performed by shifting into all of the gear positions with the engine operating. Test for the correct mesh of the synchronizers, and for the clutch releasing correctly. Move the shift lever and feel for the synchronizer sleeve to just release from the gear, then let up on the clutch pedal. Depress the clutch pedal and move the shift lever to engage that gear again. If it shifts back into the gear without clashing, the clutch is releasing correctly and the synchronizer is working. If clashing occurs, test on another gear. If all gears clash, the clutch is not releasing correctly.

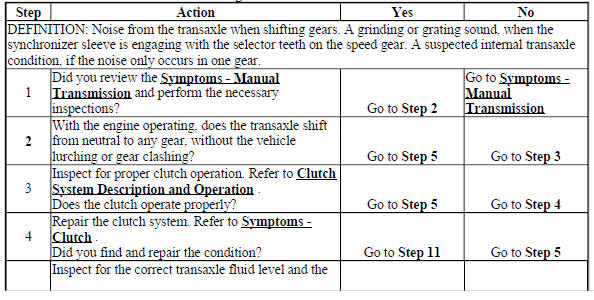

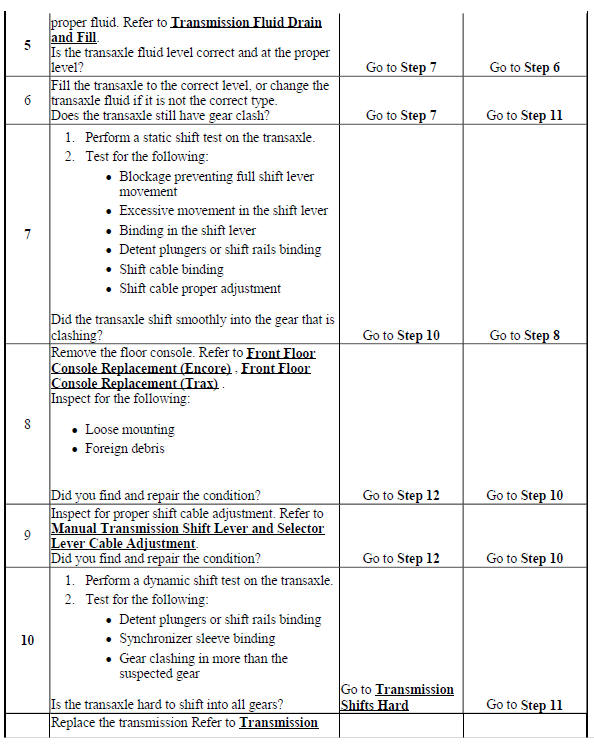

Transmission Gear Clash When Shifting Gears

Transmission Gear Clash When Shifting Gears

Transmission Gear Clash When Shifting Gears

Transmission Gear Clash When Shifting Gears
