Chevrolet Trax: Backup lamps malfunction (manual transmission)

Diagnostic Instructions

• Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
• Review Strategy Based Diagnosis for an overview of the diagnostic approach.
• Diagnostic Procedure Instructions provides an overview of each diagnostic category.

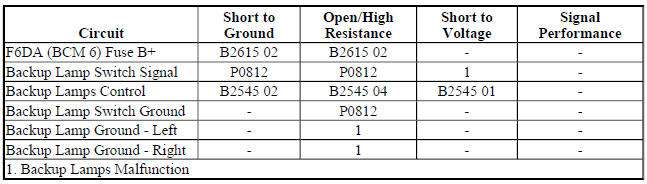

Diagnostic Fault Information

Circuit/System Description

The engine control module (ECM) provides a signal circuit to the backup lamp switch which is permanently grounded. With the engine running and the transmission in the reverse position, the backup lamp switch signal circuit is pulled low and the ECM responds by sending a serial data message to the body control module (BCM). The message indicates that the gear selector is in the reverse position. The BCM applies battery voltage to the backup lamps control circuit illuminating the backup lamps. Once the driver moves the gear selector out of the reverse position, a message is sent by the ECM via serial data requesting the BCM to remove battery voltage from the backup lamps control circuit. The engine must be running for the backup lamps to operate

Diagnostic Aids

When testing at the backup lamp bulb socket, make sure all measurements and test lamp connections are in the correct terminal location and do not come in contact with each other during testing.

Reference Information

Schematic Reference

• Exterior Lights Schematics (Encore) , Exterior Lights Schematics (Trax)
• Body Control System Schematics (Encore) , Body Control System Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

• Circuit Testing
• Connector Repairs
• Testing for Intermittent Conditions and Poor Connections
• Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

1. Engine ON.
2. Verify the scan tool Reverse Position Switch parameter changes between ON and OFF while shifting the vehicle between the neutral and reverse gears.

• If the parameter does not change

Refer to Backup Lamp Switch Malfunction.

• If the parameter changes

3. Verify the backup lamps turn ON and OFF when commanding the Backup Lamps ON and OFF with a scan tool.

• If the backup lamps do not turn ON and OFF

Refer to Backup Lamps Malfunction.

• If the backup lamps turn ON and OFF

4. All OK.

Circuit/System Testing

Backup Lamp Switch Malfunction

1. Ignition OFF, exterior lamps OFF, all doors closed, disconnect the harness connector at the B16 Backup Lamp Switch. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 5 ohms between the ground circuit terminal 2 and ground.

• If 5 ohms or greater

1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 5 ohms

3. Ignition ON.
4. Verify the scan tool Reverse Position Switch parameter is Off.

• If not Off

1. Ignition OFF, disconnect the appropriate harness connector listed below at the K20 Engine Control Module.

• X1 - with M4P
• X3 - with MR5

2. Test for infinite resistance between the signal circuit terminal 1 and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the K20 Engine Control Module.
• If Off

5. Install a 3 A fused jumper wire between the signal circuit terminal 1 and the ground circuit terminal 2.
6. Verify the scan tool Reverse Position Switch parameter is On.

• If not On

1. Ignition OFF, disconnect the appropriate harness connector listed below at the K20 Engine Control Module, ignition ON.

• X1 - with M4P
• X3 - with MR5

2. Test for less than 1 V between the signal circuit terminal 1 and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V

3. Test for less than 2 ohms in the signal circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K20 Engine Control Module.
• If On

7. Test or replace the B16 Backup Lamp Switch.

Backup Lamps Malfunction

1. Ignition OFF, exterior lamps OFF, rear hatch latch latched, remove the appropriate E5 Backup Lamp bulb at the appropriate E42 Tail Lamp Assembly.
2. Test for less than 5 ohms between the ground circuit at the socket terminal and ground.

• If 5 ohms or greater

1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 5 ohms

3. Connect a test lamp between the control circuit at the socket terminal and ground, ignition ON.
4. Verify the test lamp turns ON and OFF when commanding the Backup Lamps ON and OFF with a scan tool.

• If the test lamp is always OFF

1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the control circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance

3. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If the test lamp is always ON

1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module, ignition ON.
2. Test for less than 1 V between the control circuit terminal and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K9 Body Control Module.
• If the test lamp turns ON and OFF

5. Test or replace the appropriate E5 Backup Lamp.
