Chevrolet Trax: Backup lamps malfunction (automatic transmission)

Diagnostic Instructions

• Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
• Review Strategy Based Diagnosis for an overview of the diagnostic approach.
• Diagnostic Procedure Instructions provides an overview of each diagnostic category.

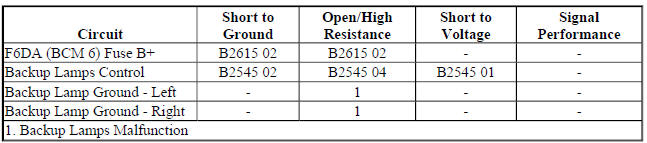

Diagnostic Fault Information

Circuit/System Description

With the engine running and the transmission in the reverse position, the transmission control module (TCM) sends a serial data message to the body control module (BCM). The message indicates that the gear selector is in the reverse position. The BCM applies battery voltage to the backup lamps control circuit illuminating the backup lamps. Once the driver moves the gear selector out of the reverse position, a message is sent by the TCM via serial data requesting the BCM to remove battery voltage from the backup lamps control circuit. The engine must be running for the backup lamps to operate.

Diagnostic Aids

When testing at the backup lamp bulb socket, make sure all measurements and test lamp connections are in the correct terminal location and do not come in contact with each other during testing.

Reference Information

Schematic Reference

• Exterior Lights Schematics (Encore) , Exterior Lights Schematics (Trax)
• Body Control System Schematics (Encore) , Body Control System Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

• Circuit Testing
• Connector Repairs
• Testing for Intermittent Conditions and Poor Connections
• Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

1. Ignition OFF, exterior lamps OFF, rear hatch latch latched, remove the appropriate E5 Backup Lamp bulb at the appropriate E42 Tail Lamp Assembly.
2. Test for less than 5 ohms between the ground circuit at the socket terminal and ground.

• If 5 ohms or greater

1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 5 ohms

3. Connect a test lamp between the control circuit at the socket terminal and ground, ignition ON.
4. Verify the test lamp turns ON and OFF when commanding the Backup Lamps ON and OFF with a scan tool.

• If the test lamp is always OFF

1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the control circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance

3. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If the test lamp is always ON

1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module, ignition ON.
2. Test for less than 1 V between the control circuit terminal and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K9 Body Control Module.
• If the test lamp turns ON and OFF

5. Test or replace the appropriate E5 Backup Lamp.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

• Backup Lamp Bulb Replacement (Trax) , Backup Lamp Bulb Replacement (Encore)
• Control Module References for BCM replacement, programming, and setup
