Chevrolet Trax: Transmission fluid cooler hose/pipe replacement

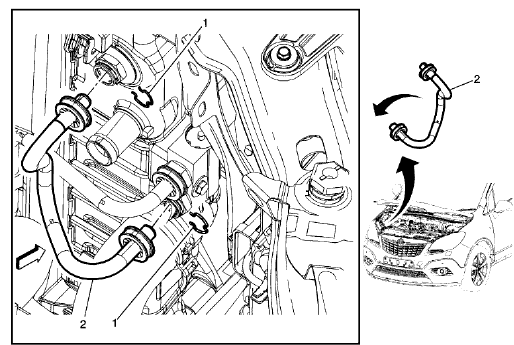

Fig. 32: Transmission Fluid Cooler Hose/Pipe
Fig. 32: Transmission Fluid Cooler Hose/Pipe

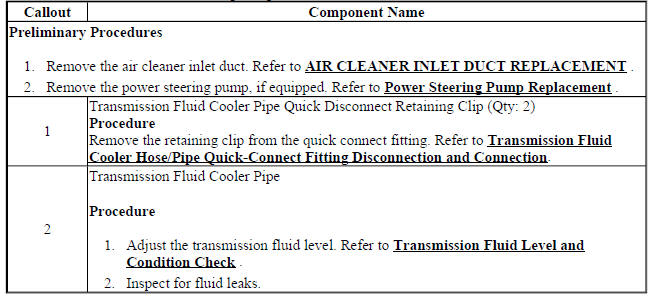

Transmission Fluid Cooler Hose/Pipe Replacement

Transmission fluid cooler hose/pipe replacement

TRANSMISSION FLUID COOLER INLET PIPE REPLACEMENT

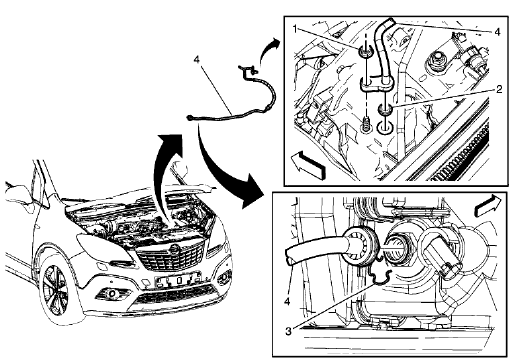

Fig. 33: Transmission Fluid Cooler Inlet Pipe
Fig. 33: Transmission Fluid Cooler Inlet Pipe

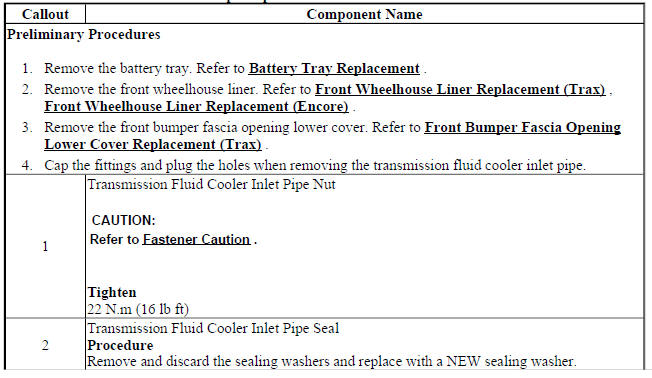

Transmission Fluid Cooler Inlet Pipe Replacement

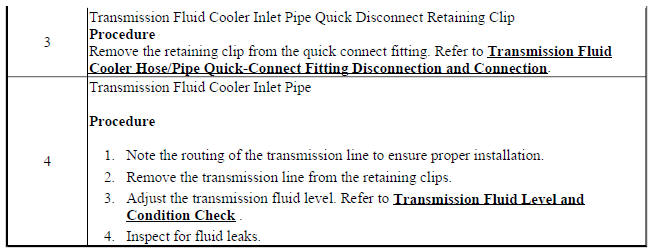

Transmission Fluid Cooler Inlet Pipe Replacement

Transmission Fluid Cooler Inlet Pipe Replacement

TRANSMISSION FLUID COOLER OUTLET PIPE REPLACEMENT

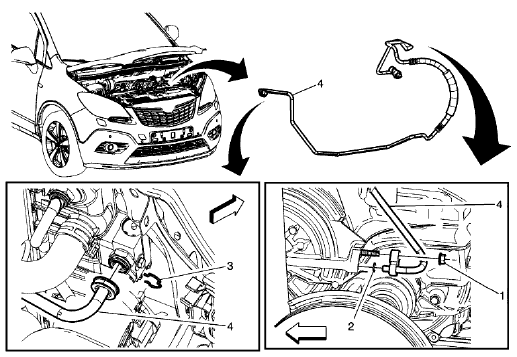

Fig. 34: Transmission Fluid Cooler Outlet Pipe
Fig. 34: Transmission Fluid Cooler Outlet Pipe

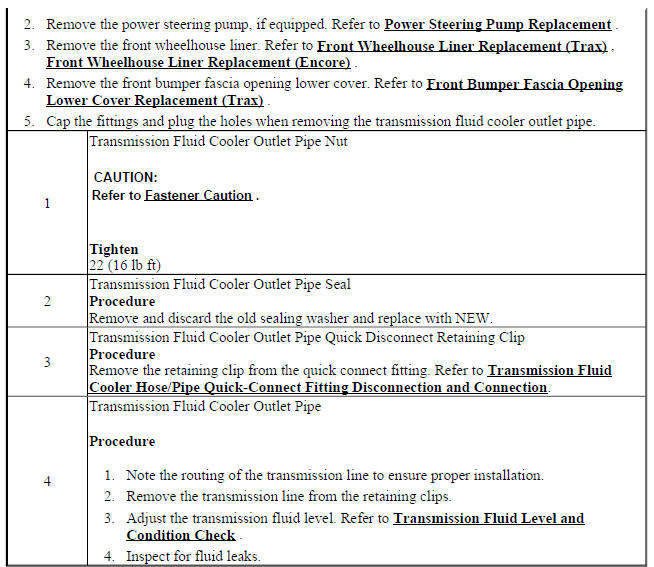

Transmission Fluid Cooler Outlet Pipe Replacement

Transmission Fluid Cooler Outlet Pipe Replacement

Transmission Fluid Cooler Outlet Pipe Replacement

SPECIAL TOOLS AND EQUIPMENT

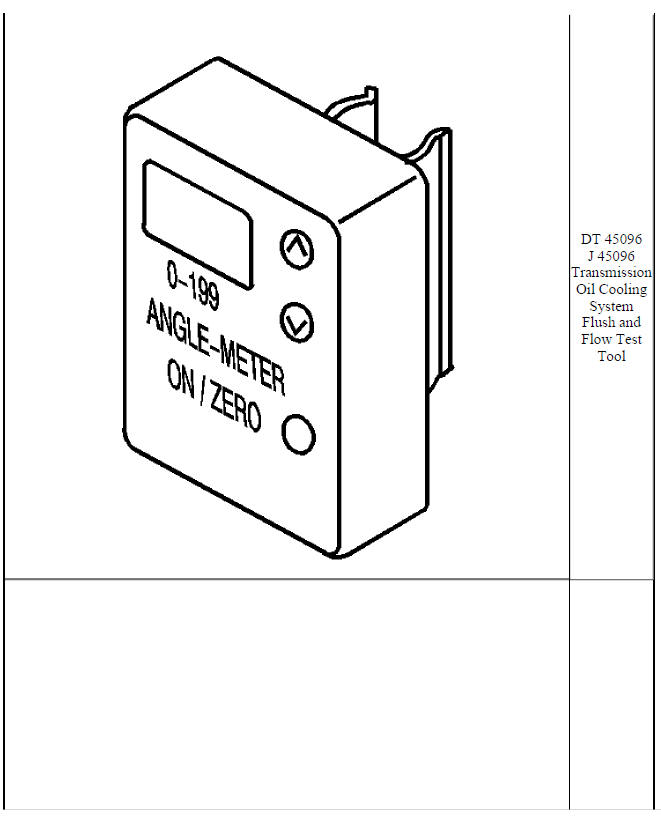

SPECIAL TOOLS

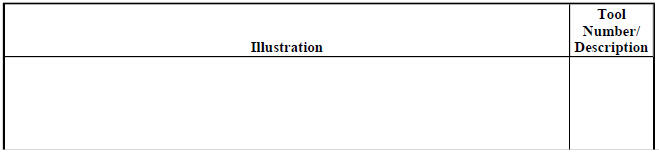

SPECIAL TOOLS AND EQUIPMENT

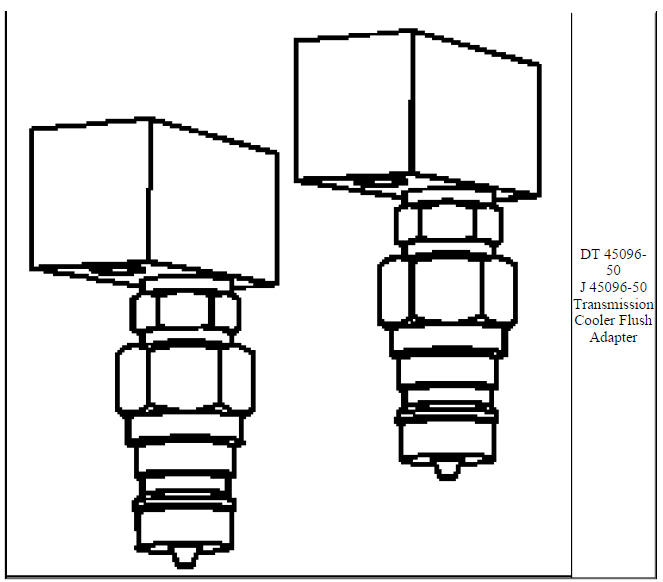

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS AND EQUIPMENT
