Chevrolet Trax: Throttle body assembly replacement
Removal Procedure
- Disconnect the throttle body wiring harness connector.
- Remove the charge air cooler outlet air hose from the throttle body.
Refer to Charge Air Cooler Outlet
Air Hose Replacement.

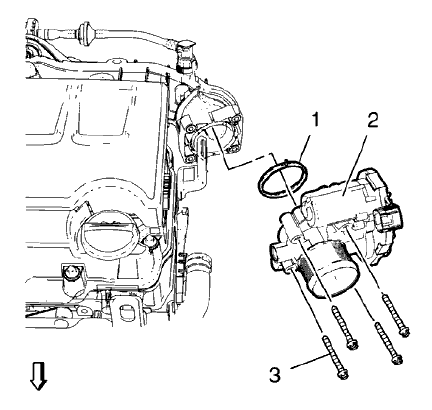

Fig. 12: Throttle Body
- Remove the 4 throttle body fasteners (3).
- Remove the throttle body (2) along with the throttle body seal ring (1).
Installation Procedure

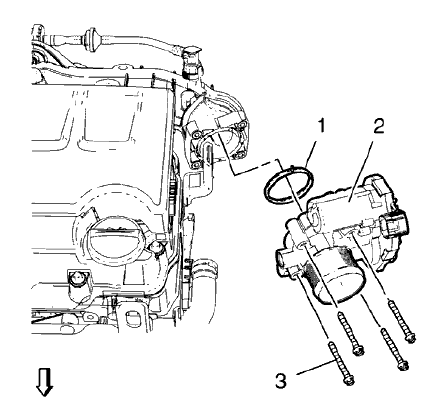

Fig. 13: Throttle Body
- Install the throttle fasteners (3) along with a NEW throttle body seal
ring (1).
CAUTION: Refer to Fastener Caution .
- Install the 4 throttle body fastener (3) and tighten to 8 (71 lb in).
- Install the charge air cooler outlet air hose to the throttle body.
Refer to Charge Air Cooler Outlet Air
Hose Replacement.
- Connect the throttle body wiring harness connector.
- Perform the throttle/idle learn. Refer to Q38 Throttle Body: Throttle/Idle
Learn.
Throttle body inspection and cleaning
NOTE:
Over extended time and mileage, deposits may accumulate on the back of the
throttle valve plate. The source of the deposit is exhaust gas. Typically these
deposits pose no problem. Occasionally the deposit may accumulate to a point
where perceived pedal effort or throttle valve movement is effected. This
procedure should not be performed on vehicles with mileage under 80,450 km
(50,000 mi).
- Remove the charge air cooler outlet air hose. Refer to Charge Air Cooler
Outlet Air Hose
Replacement.
WARNING: Turn OFF the ignition before inserting fingers into the
throttle bore.
Unexpected movement of the throttle blade could cause personal
injury.
CAUTION: Do not insert any tools into the throttle body bore in order
to avoid
damage to the throttle valve plate.
- Inspect the throttle body bore and the throttle valve plate for deposits.
You will need to open the throttle
valve in order to inspect all surfaces.
CAUTION: Do not use any solvent that contains Methyl Ethyl Ketone (MEK).
This
solvent may damage fuel system components.
- Clean the throttle body bore and the throttle valve plate using a clean
shop towel with an appropriate
cleaner.
- Install the charge air cooler outlet air hose. Refer to Charge Air
Cooler Outlet Air Hose Replacement.
FUEL PRESSURE RELIEF
WARNING: Refer to Gasoline/Gasoline Vapors Warning .
WARNING: Remove the fuel tank cap and relieve the fuel system
pressure before
servicing the fuel system in order to reduce the risk of personal injury.
After you relieve the fuel system pressure, a small amount of fuel may be
released when servicing the fuel lines, the fuel injection pump, or the
connections. In order to reduce the risk of personal injury, cover the fuel
system components with a shop towel before disconnection. This will
catch any fuel that may leak out. Place the towel in an approved container
when the disconnection is complete.
- Disconnect the battery. Refer to Battery Negative Cable Disconnection
and Connection
- Loosen the fuel fill cap in order to relieve the fuel tank vapor
pressure.
- Remove the engine cover, if required.
- Remove the fuel rail service port cap.
- Wrap a shop towel around the fuel rail service port and using a small
flat bladed tool, depress (open) the fuel rail test port
valve.
- Remove the shop towel from around the fuel rail
service port, and place in an approved gasoline
container.
- Install the fuel rail service port cap.
- Install the engine cover, if required.
- Tighten the fuel fill cap.
