Chevrolet Trax: Symptoms - wiper/washer systems

NOTE: The following steps must be completed before using the symptom tables:

  1. Perform Diagnostic System Check - Vehicle , in order to verify that all of the following conditions are true:
  • No DTCs are set.
  • The control modules can communicate via the serial data link.
  1. Refer to Wiper/Washer System Description and Operation in order to familiarize yourself with the system functions.

Visual/Physical Inspection

  • Inspect for aftermarket devices which may affect the operation of the windshield wiper/washer system.

    Refer to Checking Aftermarket Accessories .

  • Inspect the easily accessible or visible system components for obvious damage or conditions which may cause the symptom.
  • Inspect the washer fluid reservoir for the proper fluid level.

Intermittent

Faulty electrical connections or wiring may be the cause of intermittent conditions. Refer to Testing for Intermittent Conditions and Poor Connections

Symptom List

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

  • Windshield Wiper System Malfunction
  • Washer Malfunction
  • Rear Washer System Malfunction
  • Rear Wiper System Malfunction
  • Rain Sensor Malfunction

WINDSHIELD WIPER SYSTEM MALFUNCTION

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B3715

Windshield Wiper Relay Circuit

DTC B3875

Windshield Wiper High Speed Relay Circuit

For symptom byte information, refer to Symptom Byte List .

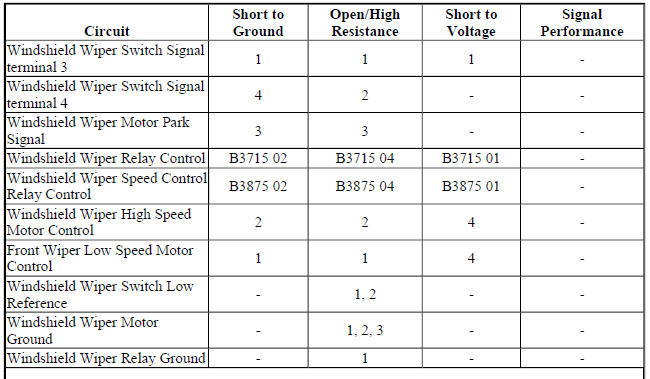

Diagnostic Fault Information

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

The body control module (BCM) controls the windshield wiper motor based on inputs from the windshield wiper/washer switch. The BCM monitors the windshield wiper/washer switch through two separate signal circuits and a low reference circuit. The windshield wiper/washer switch uses a resistor ladder to determine low speed and intermittent operation. The BCM monitors applies and monitors voltage on the windshield wiper switch signal circuit. When the wiper switch is placed in the low speed or intermittent position, the voltage is pulled down through a different resistor in the resistor ladder, reducing the voltage seen at the BCM. The BCM will respond by commanding on the low speed or intermittent wipers. The high speed wipers are controls through a discrete signal circuit. With the windshield wiper/washer switch is in the high speed position, the windshield wiper high speed switch signal circuit is pulled directly to ground. The BCM will respond by commanding on the high speed wipers.

The windshield wiper motor is controlled by the BCM through the windshield wiper replay and the windshield wiper speed control relay. A constant and ground is supplied to the rear wiper motor. When low speed windshield wiper operation is requested, the BCM will apply voltage to the windshield wiper relay control circuit. This will cause the contacts in the windshield wiper relay to close and apply B+ to the windshield wiper motor through the windshield wiper low speed control circuit, enabling low speed wiper operation. When high speed windshield wiper operation is requested, the BCM continues to apply voltage to the windshield wiper relay control circuit and also applies ground to the windshield wiper speed control relay control circuit. This will cause the contacts in the windshield wiper speed control relay to close and apply B+ to the windshield wiper motor through the windshield wiper high speed control circuit, enabling high speed wiper operation.

When the windsheild wiper request is no longer present, the contacts in the windshield wiper relay and windshield wiper speed control relay will open, removing B+ from the wiper motor control circuits. The windshield wiper motor will continue to operate using a discrete B+ circuit provided by the BCM until the wipers are in the park position.

Conditions for Running the DTC

  • A wiper output is actively being requested by the BCM.
  • The system voltage is between 9-16 V.

Conditions for Setting the DTC

B3715 01

A short to voltage is detected in the windshield wiper relay control circuit.

B3715 02

A short to ground is detected in the windshield wiper relay control circuit.

B3715 04

An open or high resistance is detected in the windshield wiper relay control circuit.

B3875 01

A short to voltage is detected in the windshield wiper high speed relay control circuit.

A short to ground is detected in the windshield wiper high speed relay control circuit.

A short to ground is detected in the windshield wiper high speed relay control circuit.

B3875 04

An open or high resistance is detected in the windshield wiper high speed relay control circuit.

Action Taken When the DTC Sets

The BCM will not activate the wiper output.

Conditions for Clearing the DTC

  • A current DTC will clear when the condition for setting the fault is no longer present.
  • A history DTC will clear after 50 consecutive ignition cycles without a fault present.

Reference Information

Schematic Reference

Wiper/Washer Schematics (Encore), Wiper/Washer Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Wiper/Washer System Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

  1. Ignition ON.
  2. Verify the scan tool Windshield Wiper Switch parameter changes between Off and Low when activating the low speed windshield wipers.
  • If the parameter does not change

Refer to Circuit/System Testing - Windshield Wiper/Washer Switch Malfunction.

  • If the parameter changes
  1. Verify the scan tool Windshield Wiper Switch parameter changes between Delay 1 and Delay 5 when cycling the intermittent speed windshield wipers.
  • If the parameter does not change

Test or replace the S82 Windsheild Wiper/Washer Switch.

  • If the parameter changes
  1. Verify the scan tool Windshield Wiper High Speed Switch parameter changes between Active and Inactive when activating the high speed windshield wipers.
  • If the parameter does not change

Refer to Circuit/System Testing - Windshield Wiper/Washer Switch Malfunction.

  • If the parameter changes
  1. Verify the M75 Windshield Wiper Motor changes between Off, Low, and High when cycling the S82 Windshield Wiper/Washer Switch between Off, Low, and High.
  • If the Windshield Wiper Motor does not cycle between Off, Low, and High

Refer to Circuit/System Testing - Windshield Wiper Motor Malfunction

  • If the Windshield Wiper Motor cycles between Off, Low, and High
  1. Ignition OFF.
  2. Verify the scan tool Windshield Wiper Park Switch parameter is Active
  • If the parameter does not change

Refer to Circuit/System Testing - Windshield Wiper Motor Malfunction.

  • If the parameter changes
  1. All OK.

Circuit/System Testing

Windshield Wiper/Washer Switch Malfunction

  1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the S82 Windshield Wiper/Washer Switch. It may take up to 11 min for all vehicle systems to power down.
  2. Test for less than 10 ohms between the low reference circuit terminal 2 and ground.
  • If 10 ohms or greater
  1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module.
  2. Test for less than 2 ohms in the low reference circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If less than 10 ohms
  1. Ignition ON.
  2. Verify the scan tool Windshield Wiper High Speed Switch parameter is Inactive.

If not Inactive

  1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the signal circuit terminal 1 and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the K9 Body Control Module.
  • If Inactive
  1. Install a 3 A fused jumper wire between the signal circuit terminal 1 and the low reference circuit terminal 2.
  2. Verify the scan tool Windshield Wiper High Speed Switch parameter is Active.
  • If not Active
  1. Ignition OFF, remove the jumper wire, disconnect the X3 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If Active
  1. Test for greater than 8 V between the signal circuit terminal 3 and ground.
  • If less than 8 V
  1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the signal circuit and ground
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If 8 V or greater
  1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the S82 Windshield Wiper/Washer Switch signal circuit terminal 3 and ground.
  • If 1 V or greater

Repair the short to voltage on the circuit.

  • If less than 1 V
  1. Test or replace the S82 Windshield Wiper/Washer Switch.

Windshield Wiper Motor Malfunction

  1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the M75 Windshield Wiper Motor. It may take up to 2 min for all vehicle systems to power down.
  2. Test for less than 10 ohms between the ground circuit terminal 1 and ground.
  • If 10 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 10 ohms
  1. Ignition ON.
  2. Verify the scan tool Windshield Wiper Park Switch parameter is Inactive.

If not Inactive

  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the M75 Windshield Wiper Motor signal circuit terminal 2 and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the K9 Body Control Module.
  • If Inactive
  1. Install a 3 A fused jumper wire between the signal circuit terminal 2 and ground.
  2. Verify the scan tool Windshield Wiper Park Switch parameter is Active.
  • If not Active
  1. Ignition OFF, remove the jumper wire, disconnect the X4 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If Active
  1. Connect a test lamp between the following control circuits and ground, ignition ON.
  • Control Circuit Terminal 4
  • Control Circuit Terminal 5
  1. Verify the test lamp does NOT turn ON and OFF when commanding the appropriate Windshield Wiper Relay On and Off with a scan tool.
  • If the test lamp turns ON and OFF for both terminals

Test or replace the M75 Windshield Wiper Motor.

  • If the test lamp does not turn ON and OFF for one or both terminals
  1. Ignition OFF and all vehicle systems OFF, connect the harness connector at the M75 Windshield Wiper Motor. Disconnect the X2 harness connector at the X50A Fuse Block - Underhood. It may take up to 2 min for all vehicle systems to power down.
  2. Test for less than 10 ohms between the ground circuit terminals listed below and ground:
  • Terminal C5
  • Terminal H1
  • If 10 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 10 ohms
  1. Ignition ON.
  2. Verify the M75 Windshield Wiper Motor is not activated.
  • If the M75 Windshield Wiper Motor is activated
  1. Ignition OFF, disconnect the harness connector at the M75 Windshield Wiper Motor, ignition ON.
  2. Test for less than 1 V between each control circuit listed below and ground:
  • Terminal 4
  • Terminal 5
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the M75 Windshield Wiper Motor.
  • If the M75 Windshield Wiper Motor is not activated
  1. Connect a 20 A fused jumper wire between the control circuit terminals listed below, one at a time, and B+.
  • Terminal H2
  • Terminal C1
  1. Verify the M75 Windshield Wiper Motor activates
  • If the M75 Windshield Wiper Motor does not activate
  1. Ignition OFF, remove the jumper wire, disconnect the harness connector at the M75 Windshield Wiper Motor.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than Infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the M75 Windshield Wiper Motor.
  • If the M75 Windshield Wiper Motor activates
  1. Ignition OFF, connect the X2 harness connector at the X50A Fuse Block - Underhood. Disconnect the X4 harness connector at the K9 Body Control Module, ignition ON.
  2. Verify the M75 Windshield Wiper Motor low speed is not activated.
  • If the M75 Windshield Wiper Motor low speed is activated
  1. Ignition OFF, disconnect the X2 harness connector at the X50A Fuse Block - Underhood, ignition ON.
  2. Test for less than 1 V between the control circuit terminal D3 and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the X50A Fuse Block - Underhood.
  • If the M75 Windshield Wiper Motor low speed is not activated
  1. Ignition OFF, disconnect the X5 harness connector at the K9 Body Control Module, ignition ON.
  2. Verify the M75 Windshield Wiper Motor High Speed is not activated.
  • If the M75 Windshield Wiper Motor high speed is activated
  1. Ignition OFF, disconnect the X2 harness connector at the X50A Fuse Block - Underhood, ignition ON.
  2. Test for infinite resistance between the control circuit terminal D2 and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the X50A Fuse Block - Underhood.
  • If the M75 Windshield Wiper Motor high speed is not activated
  1. Connect a 10 A fused jumper wire between the control circuit terminal 16 X4 and B+.
  2. Verify the M75 Windshield Wiper Motor activates.

If the M75 Windshield Wiper Motor does not activate

  1. Ignition OFF, remove the jumper wire, disconnect the X2 harness connector at the X50A Fuse Block - Underhood.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If less than infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, test or replace the X50A Fuse Block - Underhood.
  • If the M75 Windshield Wiper Motor activates
  1. Connect a 10 A fused jumper wire between the control circuit terminal 24 X5 and ground.
  2. Verify the M75 Windshield Wiper Motor activates.
  • If the M75 Windshield Wiper Motor does not activate
  1. Ignition OFF, remove the jumper wire, disconnect the X2 harness connector at the X50A Fuse Block - Underhood.
  2. Test for less than 1 V between the control circuit and ground.
  • If 1 V or greater, repair the short to ground on the circuit.
  • If less than 1 V
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, test or replace the X50A Fuse Block - Underhood.
  • If the M75 Windshield Wiper Motor activates
  1. Replace the K9 Body Control Module.

Component Testing

Windshield Wiper/Washer Switch

  1. Ignition OFF, disconnect the harness connector at the S82 Windshield Wiper/Washer Switch.
  2. Test for infinite resistance between the signal terminal 1 and the low reference terminal 2 with the switch in the open position.

If less than infinite resistance

Replace the S82 Windshield Wiper/Washer Switch.

If infinite resistance

  1. Test for less than 2 ohms between the signal circuit terminal 1 and the low reference circuit terminal 2 with the switch in the closed position.
  • If 2 ohms or greater

Replace the S82 Windshield Wiper/Washer Switch.

  • If less than 2 ohms
  1. Test for infinite resistance between the signal terminal 3 and the low reference terminal 2 with the switch in the open position.
  • If less than infinite resistance

Replace the S82 Windshield Wiper/Washer Switch.

  • If infinite resistance
  1. Verify the resistance readings are within the specified range listed below between the signal circuit terminal 3 and the low reference circuit terminal 2 by pushing the switch in the listed positions below.
  • Delay 1 : 3.75-3.85kohms
  • Delay 2 : 2.75-2.85kohms
  • Delay 3 : 1.95-2.05kohms
  • Delay 4 : 1.25-1.35kohms
  • Delay 5 : 765-775ohms
  • If not within the specified range

Replace the S82 Windshield Wiper/Washer Switch.

  • If within the specified range
  1. All OK

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Windshield Wiper Motor Replacement
  • Front Compartment Fuse Block Replacement
  • Windshield Wiper and Washer Switch Replacement (Encore), Windshield Wiper and Washer Switch Replacement (Trax)
  • Control Module References for body control module replacement, programming, and setup.

    READ NEXT:

     Washer malfunction

    Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic approach. Diag

     Rain sensor malfunction

    Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic approach. Diag

     Rear wiper system malfunction

    Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic approach. Diag

    SEE MORE:

     DTC C0176: Control module temperature sensor high temperature

    DIAGNOSTIC CODE INDEX DTC C0176: CONTROL MODULE TEMPERATURE SENSOR HIGH TEMPERATURE Diagnostic Instructions Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic appro

     Positive crankcase ventilation pipe installation

    Fig. 464: Turbocharger, Positive Crankcase Ventilation Pipe Assembly And Charger Air Bypass Valve Pipe Install the positive crankcase ventilation pipe assembly (1) to the camshaft cover retainer clips. Connect the positive crankcase ventilation pipe to turbocharger (3). Install the charger

    © 2019-2024 Copyright www.chevtrax.com
