Chevrolet Trax: Steering wheel controls malfunction

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

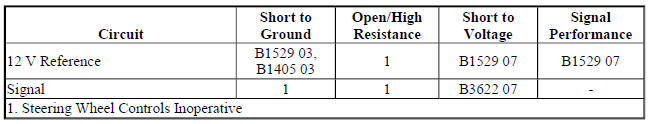

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

The body control module (BCM) supplies voltage to the audio steering wheel control switches and monitors the return signal. Each switch state is associated to a set resistance value and when pressed a specific voltage drop occurs across the resistor unique to the switch. The BCM identifies the switch selection and activates the feature.

Reference Information

Schematic Reference

Steering Wheel Secondary/Configurable Control Schematics (Encore), Steering Wheel

Secondary/Configurable Control Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Steering Wheel Controls Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

  1. Ignition ON.
  2. Verify the primary controls of the associated component are functioning properly.
  • If any of the primary controls do not function properly

Refer to Symptoms - Entertainment , Symptoms - Entertainment

  • If all of the primary controls function properly
  1. Refer to Circuit/System Testing

Circuit/System Testing

  1. Ensure a battery charger is not connected to the battery.
  2. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the S70R Steering Wheel Controls Switch - Right, ignition ON.
  3. Test for 11-12.2 V between the reference voltage circuit terminal 1 and ground.
  • If less than 11 V
  1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the reference voltage circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the reference voltage circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If greater than 12.2 V
  1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the reference voltage circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If between 11-12.2 V
  1. Test for 11-12.2 V between the reference voltage circuit terminal 1 and signal circuit terminal 2.

If not between 11-12.2 V

  1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module.
  2. Test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms replace the K9 Body Control Module.
  • If between 11-12.2 V
  1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the signal circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the S70R Steering Wheel Controls Switch - Right.

Component Testing

  1. Ignition OFF, disconnect the harness connector at the S70R Steering Wheel Controls Switch - Right.

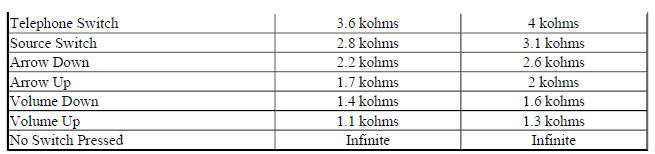

  2. Test the resistance between the signal terminal 2 and the reference voltage terminal 1 while pressing the appropriate steering wheel controls switch button listed below:
  • If not the specified value

Replace the S70R Steering Wheel Controls Switch - Right.

  • If the specified value
  1. All OK

Component Testing

Component Testing

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

Control Module References for BCM replacement, programming and setup.
