Chevrolet Trax: Shifting out of Park

This vehicle is equipped with a shift lock control. The shift lock control is designed to:

  • Prevent ignition key removal unless the shift lever is in P (Park) with the shift lever button fully released.
  • Prevent movement of the shift lever out of P (Park) unless the ignition is in ON/RUN and the brake pedal is applied

The shift lock control is always functional except in the case of an uncharged or low voltage (less than 9-volt) battery.

If the vehicle has an uncharged battery or a battery with low voltage, try charging or jump starting the battery.

To shift out of P (Park):

  1. Apply the brake pedal.
  2. Turn the ignition to ON/RUN.
  3. Press the shift lever button.
  4.  Move the shift lever to the desired position.

If still unable to shift out of P (Park):

  1. Fully release the shift lever button.
  2. Hold the brake pedal down and press the shift lever button again.
  3. Move the shift lever to the desired position.

If the shift lever still cannot be moved from P (Park), see "Shift Lock Manual Release."

Shift Lock Manual Release

The automatic transmission has an electric park lock. The key must be in the ON/RUN position, and the brake pedal pressed so the shift lever can be moved from the P (Park) position. If the battery has lost power, the shift lever cannot be moved from P (Park) unless the shift lock manual release is disengaged manually.

To access the shift lock manual release:

  1. Turn the ignition OFF and remove the key.
  2. Hold the brake pedal down.

    Apply the parking brake.

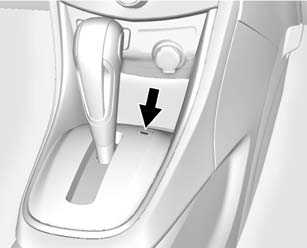

Shift Lock Manual Release

  1. Remove the cover on the console.

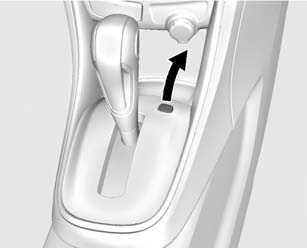

Shift Lock Manual Release

  1. Insert and press the ignition key into the slot.
  2. Move the shift lever out of P (Park). If P (Park) is selected again after the key is removed from the slot, the shift lever will be locked again.
  3. Remove the key from the slot.
  4. Close the cover.
  5. Have the cause of the problem fixed by your dealer.

Parking

If the vehicle has a manual transmission, before getting out of the vehicle, move the shift lever into R (Reverse) if parking on a downhill slope. On a level surface or an uphill slope, use 1 (First) gear.

Firmly apply the parking brake. Turn the wheels toward the curb for a downhill slope, or away from the curb for an uphill slope. Once the shift lever has been placed into gear with the clutch pedal pressed in, turn the ignition key to LOCK/OFF, remove the key, and release the clutch.

Parking over Things That Burn

Warning

Things that can burn could touch hot exhaust parts under the vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn.
