Chevrolet Trax: Power windows malfunction (AXG, AED, AEQ)

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

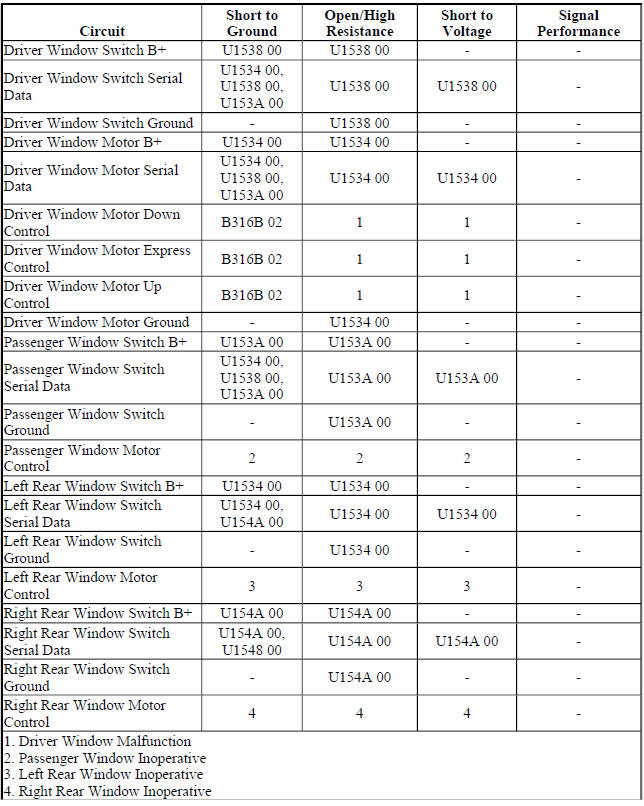

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

The driver window motor supplies 12 V signal circuits to the driver window switch, when a window switch has been activated, a switch closes providing a ground to the appropriate signal circuit causing the voltage to drop to 0 V. The driver window motor will detect the voltage drop in the signal circuit and will command the window to move in the desired direction.

The driver window master control switch also contains control switches for the passenger, left rear and right rear window functions. When a window switch is pressed, a serial data message is sent to the body control module (BCM). The BCM examines the request and checks for messages from other power window motors that may prohibit window movement. If no prohibitive messages have been received, the BCM will send a serial data message to the appropriate passenger or rear window switch which will perform the command as requested.

Diagnostic Aids

If the driver window is not performing the express up and express down functions, this may indicate that it has not been normalized. This may occur during the following conditions:

  • When the driver window motor has been disconnected
  • When the driver door harness has been disconnected
  • When the battery has been disconnected or replaced

To normalize the driver window motor, refer to Window Motor Programming - Express Function.

Reference Information

Schematic Reference

Moveable Window Schematics (Encore), Moveable Window Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Power Windows Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

  1. Ignition ON.
  2. Verify the driver window functions while commanding the Driver Window Motor Up and Down with a scan tool.
  • If the window does not move Up and Down as commanded

Refer to Circuit/System Testing - Driver Window Motor Malfunction.

  • If the window moves Up and Down as commanded
  1. Verify the driver window moves while commanding the window UP, express UP, DOWN and express DOWN with the S79D Window Switch-Driver.
  • If the driver window does not move UP or DOWN as commanded

Refer to Circuit/System Testing - Driver Window Switch Malfunction.

  • If the driver window does not express UP or express DOWN

Normalize the driver window motor, refer to Window Motor Programming - Express Function.

  • If after normalization, the driver window does not express UP or express DOWN

Refer to Circuit/System Testing - Driver Window Switch Malfunction.

  • If the driver window moves UP, express UP, DOWN and express DOWN as commanded
  1. Verify the scan tool parameters listed below change when pressing and pulling the switches for the passenger, left rear and right rear window on the driver window master control;
  • Left Rear Main Control Down Switch - Inactive and Active
  • Left Rear Main Control Express Switch - Inactive and Active
  • Left Rear Main Control Up Switch - Inactive and Active
  • Right Rear Main Control Down Switch - Inactive and Active Right Rear Main Control Express Switch - Inactive and Active
  • Right Rear Main Control Up Switch - Inactive and Active
  • Front Passenger Main Control Down Switch - Inactive and Active
  • Front Passenger Main Control Express Switch - Inactive and Active
  • Front Passenger Main Control Up Switch - Inactive and Active
  • If any parameter does not change

Refer to Circuit/System Testing - Driver Window Switch Malfunction.

  • If the parameters changes
  1. Verify the passenger, left rear and right rear window functions while commanding the Passenger Window Motor, Left Rear Window Motor and Right Rear Window Motor Up and Down with a scan tool.
  • If the window does not move Up and Down as commanded

Refer to Circuit/System Testing - Passenger Power Window Inoperative.

  • If the window moves Up and Down as commanded
  1. All OK.

Circuit/System Testing

Driver Window Motor Malfunction

  1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the M74D Window Motor-Driver. It may take up to 2 minutes for all vehicle systems to power down.
  2. Test for less than 10 ohms between the ground circuit terminal 1 and ground.
  • If 10 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 10 ohms
  1. Ignition ON.
  2. Verify a test lamp illuminates between the B+ circuit terminal 2 and ground.
  • If the test lamp does not illuminate and the circuit fuse is good
  1. Ignition OFF.
  2. Test for less than 2 ohms in the B+ circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, verify the fuse is not open and there is voltage at the fuse.
  • If the test lamp does not illuminate and the circuit fuse is open
  1. Ignition OFF.
  2. Test for infinite resistance between the B+ circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the M74D Window Motor-Driver.
  • If the test lamp illuminates
  1. Test or replace the M74D Window Motor-Driver.

Driver Window Switch Malfunction

  1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the S79D Window Switch-Driver. It may take up to 2 minutes for all vehicle systems to power down.
  2. Test for less than 10 ohms between the ground circuit terminal 1 and ground.
  • If 10 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 10 ohms
  1. Ignition ON.
  2. Verify a test lamp illuminates between the B+ circuit terminal 4 and ground.
  • If the test lamp does not illuminate and the circuit fuse is good
  1. Ignition OFF.
  2. Test for less than 2 ohms in the B+ circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, verify the fuse is not open and there is voltage at the fuse.
  • If the test lamp does not illuminate and the circuit fuse is open
  1. Ignition OFF.
  2. Test for infinite resistance between the B+ circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the S79D Window Switch-Driver.
  • If the test lamp illuminates
  1. Verify the scan tool Driver Window Main Control Down Switch parameter is Inactive.
  • If not Inactive
  1. Ignition OFF, disconnect the harness connector at the M74D Window Motor-Driver.
  2. Test for infinite resistance between the S79D Window Switch-Driver signal circuit terminal 3 and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the M74D Window Motor-Driver.
  • If Inactive
  1. Install a 3 A fused jumper wire between the signal circuit terminal 3 and the ground circuit terminal 1.
  2. Verify the scan tool Driver Window Main Control Down Switch parameter is Active

If not Active

  1. Ignition OFF, remove the 3 A fused jumper wire, disconnect the harness connector at the M74D Window Motor-Driver, ignition ON.
  2. Test for less than 1 V between the S79D Window Switch-Driver signal circuit terminal 3 and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the M74D Window Motor-Driver.
  • If Active
  1. Verify the scan tool Driver Window Main Control Up Switch parameter is Inactive.

If not Inactive

  1. Ignition OFF, disconnect the harness connector at the M74D Window Motor-Driver.
  2. Test for infinite resistance between the S79D Window Switch-Driver signal circuit terminal 6 and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the M74D Window Motor-Driver.
  • If Inactive
  1. Install a 3 A fused jumper wire between the signal circuit terminal 6 and the ground circuit terminal 1.
  2. Verify the scan tool Driver Window Main Control Up Switch parameter is Active
  • If not Active
  1. Ignition OFF, remove the 3 A fused jumper wire, disconnect the harness connector at the M74D Window Motor-Driver, ignition ON.
  2. Test for less than 1 V between the S79D Window Switch-Driver signal circuit 6 and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the M74D Window Motor-Driver.
  • If Active
  1. Verify the scan tool Driver Window Main Control Express Switch parameter is Inactive.
  • If not Inactive
  1. Ignition OFF, disconnect the harness connector at the M74D Window Motor-Driver.
  2. Test for infinite resistance between the S79D Window Switch-Driver signal circuit terminal 2 and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the M74D Window Motor-Driver.
  • If Inactive
  1. Install a 3 A fused jumper wire between the signal circuit terminal 2 and the ground circuit terminal 1.
  2. Verify the scan tool Driver Window Main Control Express Switch parameter is Active
  • If not Active
  1. Ignition OFF, remove the 3 A fused jumper wire, disconnect the harness connector at the M74D Window Motor-Driver, ignition ON.
  2. Test for less than 1 V between the S79D Window Switch-Driver signal circuit 2 and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the M74D Window Motor-Driver.
  • If Active
  1. Test or replace the S79D Window Switch-Driver.

Passenger Power Window Inoperative

  1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the appropriate passenger or rear S79 Window Switch. It may take up to 2 minutes for all vehicle systems to power down.
  2. Test for less than 10 ohms between the ground circuit terminal listed below and ground:
  • S79P Window Switch-Passenger - ground circuit terminal 1
  • S79LR Window Switch-Left Rear - ground circuit terminal 5
  • S79RR Window Switch-Right Rear - ground circuit terminal 5
  • If 10 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 10 ohms
  1. Ignition ON.
  2. Verify a test lamp illuminates between the B+ circuit terminal listed below and ground:
  • S79P Window Switch-Passenger - B+ circuit terminal 4
  • S79LR Window Switch-Left Rear - B+ circuit terminal 8
  • S79RR Window Switch-Right Rear - B+ circuit terminal 8
  • If the test lamp does not illuminate and the circuit fuse is good
  1. Ignition OFF.
  2. Test for less than 2 ohms in the B+ circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, verify the fuse is not open and there is voltage at the fuse.
  • If the test lamp does not illuminate and the circuit fuse is open
  1. Ignition OFF.
  2. Test for infinite resistance between the B+ circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the S79 Window Switch.
  • If the test lamp illuminates
  1. Ignition OFF, connect the harness connector at the S79 Window Switch and disconnect the harness connector at the M74 Window Motor.
  2. Test for less than 5 ohms between the control circuit terminal 1 and ground.

If 5 ohms or greater

  1. Ignition OFF, disconnect the harness connector at the S79 Window Switch.
  2. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the S79 Window Switch.
  • If less than 5 ohms
  1. Test for less than 5 ohms between the control circuit terminal 2 and ground.
  • If 5 ohms or greater
  1. Ignition OFF, disconnect the harness connector at the S79 Window Switch.
  2. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the S79 Window Switch.
  • If less than 5 ohms
  1. Connect a test lamp between control circuit terminal 1 and control circuit terminal 2, ignition ON.
  2. Verify the test lamp turns ON when commanding the UP and DOWN states with the S79 Window Switch.
  • If the test lamp remains OFF during either of the commands
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S79 Window Switch.
  2. Test for infinite resistance between each control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the S79 Window Switch.
  • If the test lamp turns ON during each of the commands
  1. Test or replace the M74 Window Motor.

Component Testing

Passenger/Rear Window Motor

  1. Ignition OFF, disconnect the harness connector at the appropriate passenger or rear M74 Window Motor.
  2. Install a 25 A fused jumper wire between one of the control terminals and 12 V. Momentarily install a jumper wire between the other control terminal and ground. Reverse the jumper wires at least two times, the M74 Window Motor should perform the UP and DOWN functions.
  • If the function does not perform the UP and DOWN functions

Replace the passenger or rear M74 Window Motor.

  • If the function performs the UP and DOWN functions
  1. All OK

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Rear Side Door Window Switch Replacement
  • Front Side Door Window Regulator Motor Replacement
  • Rear Side Door Window Regulator Motor Replacement
  • Front Side Door Window Switch Replacement (Driver Side, Encore), Front Side Door Window Switch Replacement (Passenger Side, Encore), Front Side Door Window Switch Replacement (Driver Side, Trax), Front Side Door Window Switch Replacement (Passenger Side, Trax)

    READ NEXT:

     Power windows malfunction (A55, A66 WITHOUT A33)

    Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic approach. Diag

     Power windows malfunction (A55, A66 WITH A33)

    Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic approach. Diag

     Power windows malfunction (AXG, A66, A33)

    Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic approach. Diag

    SEE MORE:

     Bluetooth malfunction (onstar)

    Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic approach. Diagnostic Procedure Instructions provide an overview of each diagnostic category. Circuit/System Des

     Engine replacement - Installation Procedure

    Install the transmission to the engine. Fig. 165: Upper Transmission-To-Engine Bolts CAUTION: Refer to Fastener Caution . If equipped with a manual transmission, install the upper transmission to engine bolts (1) to 60 (44 lb ft). Fig. 166: Upper Transmission To Engine Bolts If equippe

    © 2019-2024 Copyright www.chevtrax.com
