Chevrolet Trax: Roof rail front stowage compartment replacement (encore)

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Interior Trim and Paneling / Interior Trim and Paneling - Repair instructions / Roof rail front stowage compartment replacement (encore)

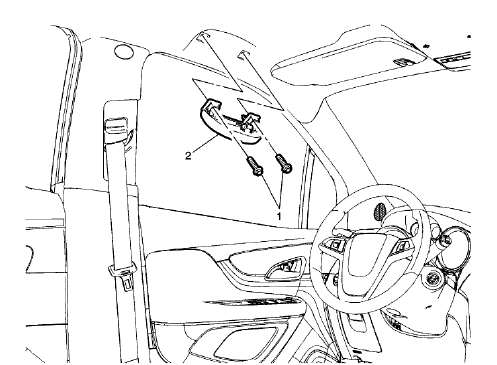

Fig. 12: Roof Rail Front Stowage Compartment
Fig. 12: Roof Rail Front Stowage Compartment

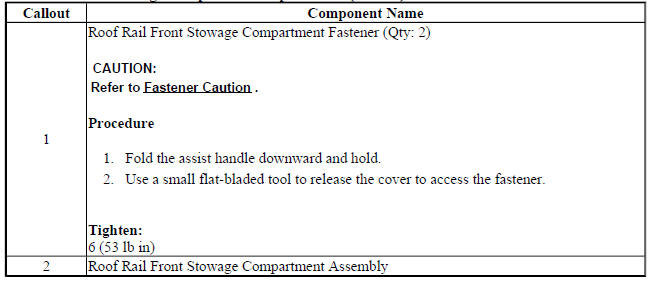

Roof Rail Front Stowage Compartment Replacement (Encore)

Roof Rail Front Stowage Compartment Replacement (Encore)

ROOF RAIL FRONT STOWAGE COMPARTMENT REPLACEMENT (TRAX)

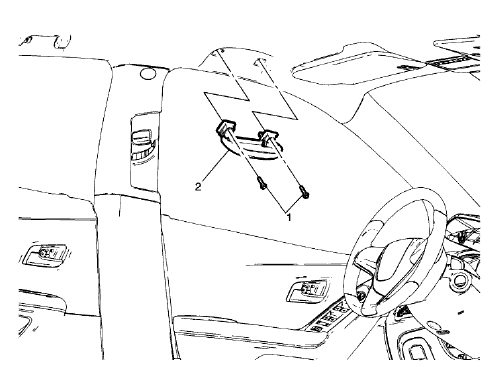

Fig. 13: Roof Rail Front Stowage Compartment
Fig. 13: Roof Rail Front Stowage Compartment

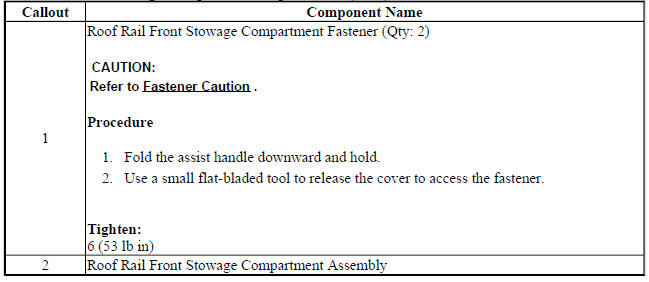

Roof Rail Front Stowage Compartment Replacement (Trax)

Roof Rail Front Stowage Compartment Replacement (Trax)

ROOF RAIL ASSIST HANDLE REPLACEMENT (ENCORE)

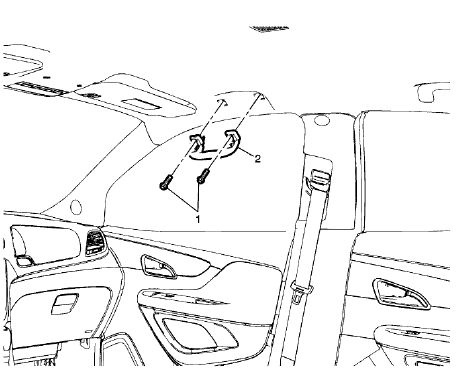

Fig. 14: Roof Rail Assist Handle Assembly
Fig. 14: Roof Rail Assist Handle Assembly

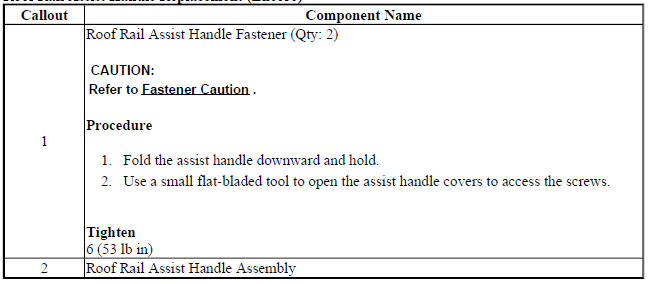

Roof Rail Assist Handle Replacement (Encore)

Roof Rail Assist Handle Replacement (Encore)

ROOF RAIL ASSIST HANDLE REPLACEMENT (TRAX)

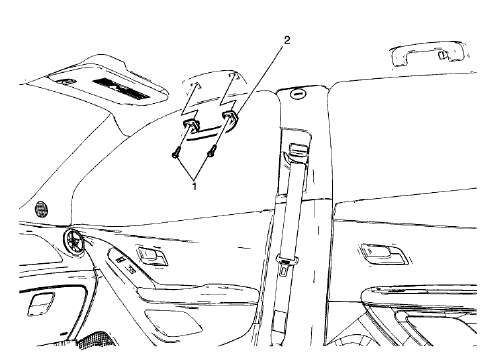

Fig. 15: Roof Rail Assist Handle Assembly
Fig. 15: Roof Rail Assist Handle Assembly

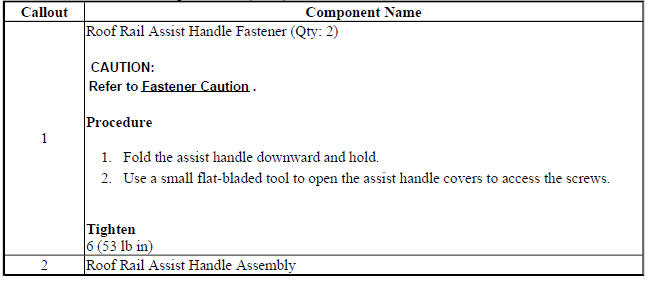

Roof Rail Assist Handle Replacement (Trax)

Roof Rail Assist Handle Replacement (Trax)

ROOF RAIL REAR ASSIST HANDLE REPLACEMENT (ENCORE)

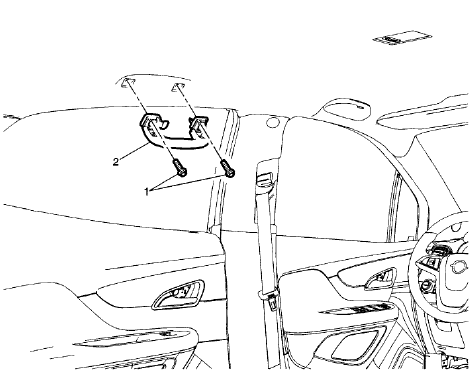

Fig. 16: Roof Rail Rear Assist Handle Assembly
Fig. 16: Roof Rail Rear Assist Handle Assembly

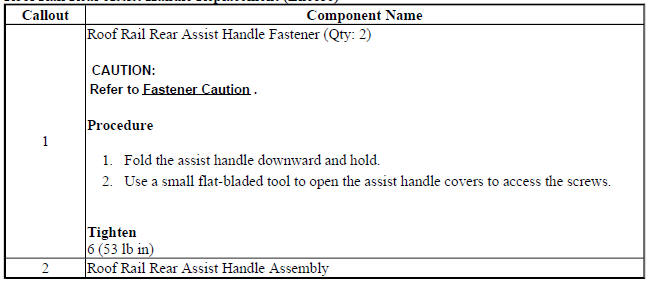

Roof Rail Rear Assist Handle Replacement (Encore)

Roof Rail Rear Assist Handle Replacement (Encore)

ROOF RAIL REAR ASSIST HANDLE REPLACEMENT (TRAX)

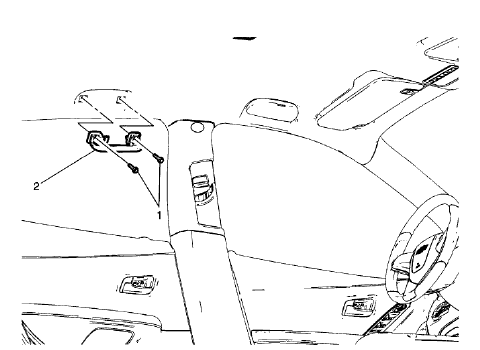

Fig. 17: Roof Rail Rear Assist Handle Assembly
Fig. 17: Roof Rail Rear Assist Handle Assembly

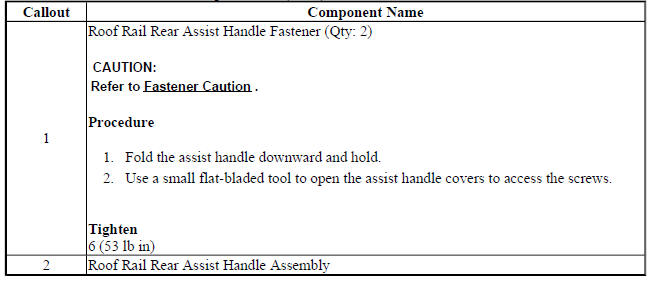

Roof Rail Rear Assist Handle Replacement (Trax)

Roof Rail Rear Assist Handle Replacement (Trax)
