Chevrolet Trax: Rear output shaft seal replacement
Removal Procedure
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Drain the transfer case fluid. Refer to Transfer Case Fluid Replacement.
- Remove the rear propeller shaft. Refer to Two-Piece Propeller Shaft
Replacement .
- Remove the rear output shaft housing. Refer to Transfer Case Rear Output
Shaft Housing Removal in
Transfer Case Disassemble.
- Remove the transfer case rear output shaft flange. Refer to Transfer
Case Propeller Shaft Flange Removal in Transfer Case
Disassemble.
- Remove the transfer case rear output shaft seal.
Refer to Transfer Case Rear Output Shaft Removal in
Transfer Case Disassemble.
Installation Procedure
- Install the transfer case rear output shaft seal. Refer to Transfer Case
Rear Output Shaft Installation in
Transfer Case Assemble.
- Install the transfer case propeller shaft flange. Refer to Transfer Case
Propeller Shaft Flange in Transfer
Case Assemble.
- Install the rear output shaft housing. Refer to Transfer Case Rear
Output Shaft Housing Installation in
Transfer Case Assemble.
- Install the rear propeller shaft. Refer to Two-Piece Propeller Shaft
Replacement .
- Fill the transfer case with fluid. Refer to Transfer Case Fluid
Replacement.
- Lower the vehicle.
TRANSFER CASE REPLACEMENT
Removal Procedure

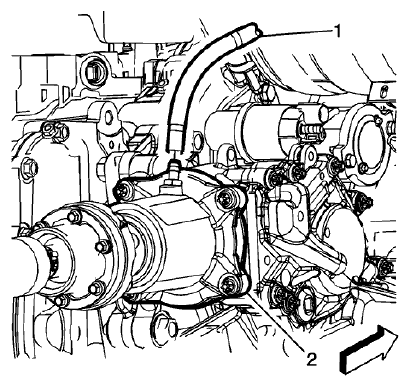

Fig. 18: Transfer Case Vent Hose
- Disconnect the transfer case vent hose (1) from the transfer case.
- Drain the fluid from the transmission. Refer to Transmission Fluid Drain
and Fill .
- Remove the right drive shaft. Refer to Front Wheel Drive Shaft
Replacement - Right Side .
NOTE: The intermediate drive shaft is to be removed from the
transfer case
assembly prior to the transfer case assembly being removed from the
vehicle. Prior to removal of the shaft from the assembly, seal protector DT-
50937 must be installed to protect the front wheel drive intermediate shaft
seal.
- Remove the intermediate drive shaft from the transfer case. Refer to
Front Wheel Drive Intermediate
Shaft Replacement.
- Remove the front exhaust pipe. Refer to Exhaust Front Pipe Replacement (LUV)
, Exhaust Front
Pipe Replacement .
- Remove the propeller shaft. Refer to Two-Piece Propeller Shaft
Replacement .
- Support the transfer case (2) with a suitable jack, and secure with
suitable straps.

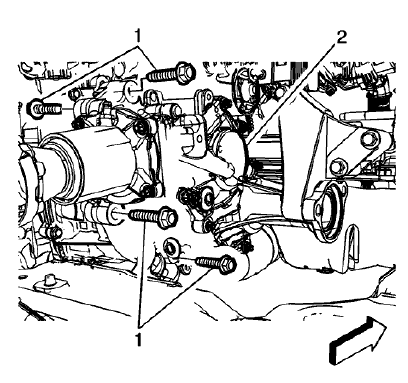

Fig. 19: Transfer Case Bolts
- Remove and DISCARD the four transfer case fasteners (1).
- Separate the transfer case (2) from the transmission and remove the
transfer case.

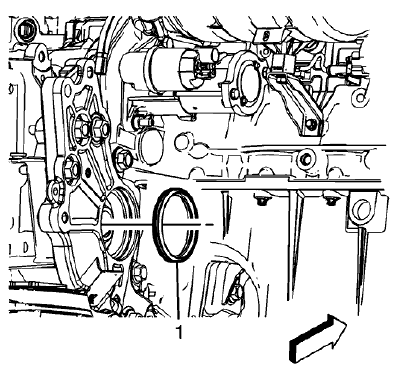

Fig. 20: Transfer Case-To-Transfer Case Bracket Seal
- Remove and discard the transfer case-to-transfer case bracket seal (1).
Installation Procedure

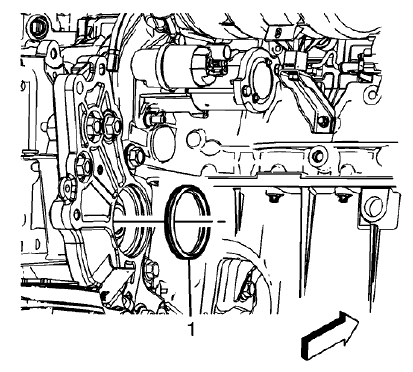

Fig. 21: Transfer Case-To-Transfer Case Bracket Seal
- Clean the contact surfaces between the transfer case and the transfer
case bracket.
- Install a new transfer case-to-transfer case bracket seal (1).
- Support the transfer case with a suitable jack, and secure with suitable
straps.
- Raise and align the transfer case in the correct position in relation to
the transmission

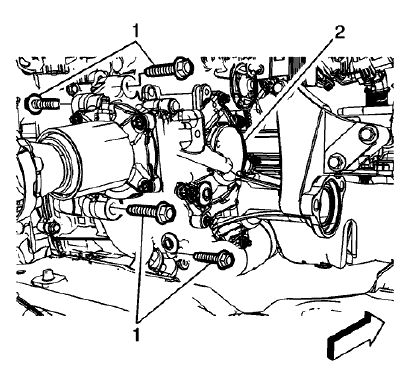

Fig. 22: Transfer Case Bolts
- Install the transfer case (2) to the transfer case bracket.
CAUTION: Refer to Fastener Caution .
- Install the NEW transfer case-to-transfer case bracket fasteners (1) and
tighten to 100 (74 lb ft) plus 30-45
degrees.
NOTE: The intermediate drive shaft is to be installed into the
transfer case
assembly after the transfer case assembly is installed into the vehicle.
Prior to installation of the shaft into the assembly, seal protector DT-50937
must be installed to protect the front wheel drive intermediate shaft seal.
- Install the intermediate drive shaft into the transfer case. Refer to
Front Wheel Drive Intermediate
Shaft Replacement.
- Install the right drive shaft. Refer to Front Wheel Drive Shaft
Replacement - Right Side .
- Install the propeller shaft. Refer to Two-Piece Propeller Shaft
Replacement .

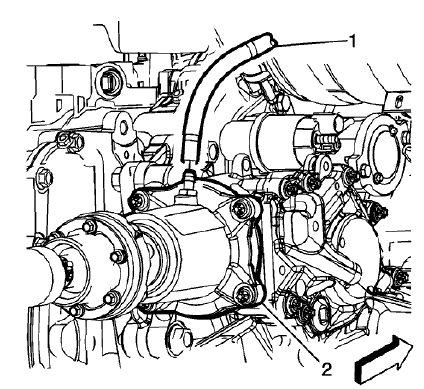

Fig. 23: Transfer Case Vent Hose
- Connect the transfer case vent hose (1) to the transfer case.
- Install the front exhaust pipe. Refer to Exhaust Front Pipe
Replacement (LUV) , Exhaust Front Pipe
Replacement .
- Fill the transmission with fluid. Refer to Transmission Fluid Drain and
Fill .
- Check the transfer case fluid. Refer to Approximate Fluid Capacities.
