Chevrolet Trax: Power steering fluid reservoir outlet hose replacement

Chevrolet Trax (2013-2022) Workshop Manual / Suspension & Steering / Power Steering / Repair instructions / Power steering fluid reservoir outlet hose replacement

Removal Procedure

  1. Place drain pans under the vehicle.
  2. Remove as much power steering fluid from the power steering fluid reservoir as possible.

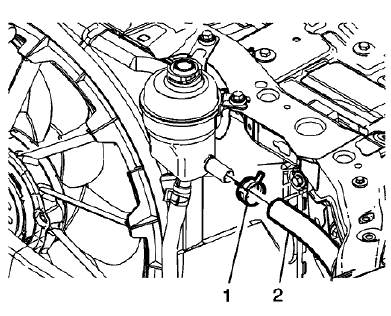

Fig. 24: Steering Fluid Reservoir Outlet Hose And Clamp
Fig. 24: Steering Fluid Reservoir Outlet Hose And Clamp

  1. Release the power steering fluid reservoir outlet hose clamp (1) and disconnect the power steering fluid reservoir outlet hose (2) from the power steering fluid reservoir.

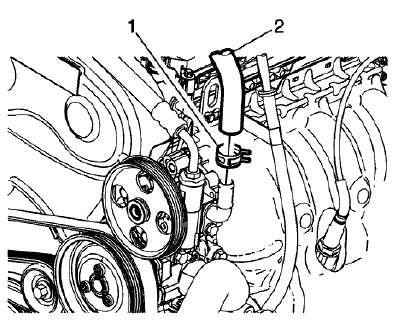

Fig. 25: Power Steering Fluid Reservoir Outlet Hose
Fig. 25: Power Steering Fluid Reservoir Outlet Hose

  1. Loosen the power steering fluid reservoir outlet hose clamp (1) and disconnect the power steering fluid reservoir outlet hose (2) from the power steering pump.
  2. Remove the power steering fluid reservoir outlet hose from the vehicle.

Installation Procedure

  1. Position the power steering fluid reservoir outlet hose on the vehicle.

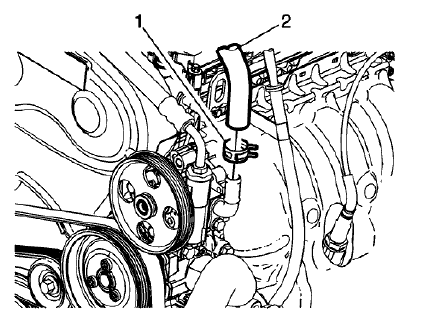

Fig. 26: Power Steering Fluid Reservoir Outlet Hose
Fig. 26: Power Steering Fluid Reservoir Outlet Hose

  1. Connect the power steering fluid reservoir outlet hose (2) to the power steering pump and secure with the power steering fluid reservoir outlet hose clamp (1).

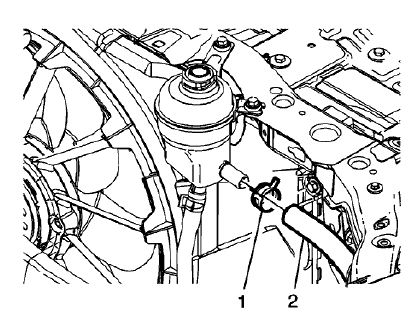

Fig. 27: Steering Fluid Reservoir Outlet Hose And Clamp
Fig. 27: Steering Fluid Reservoir Outlet Hose And Clamp

  1. Connect the power steering fluid reservoir outlet hose (2) to the power steering fluid reservoir and secure with the power steering fluid reservoir outlet hose clamp (1).
  2. Clean any excess power steering fluid from the vehicle and remove the drain pans.
  3. Fill and bleed the power steering system. Refer to Power Steering System Bleeding.

POWER STEERING FLUID RESERVOIR INLET PIPE REPLACEMENT

Removal Procedure

  1. Place drain pans under the vehicle.
  2. Remove as much power steering fluid from the power steering fluid reservoir as possible.

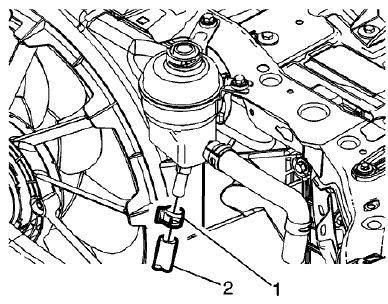

Fig. 28: Steering Fluid Reservoir Inlet Pipe
Fig. 28: Steering Fluid Reservoir Inlet Pipe

  1. Release the power steering fluid reservoir inlet pipe clamp (1) and disconnect the power steering fluid reservoir inlet pipe (2) from the power steering fluid reservoir.

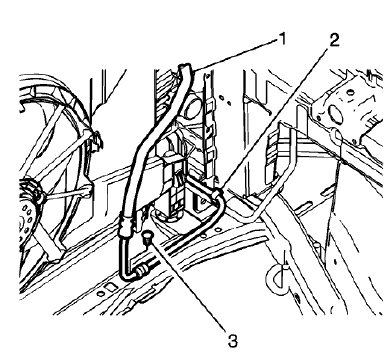

Fig. 29: Power Steering Fluid Reservoir Inlet Hose
Fig. 29: Power Steering Fluid Reservoir Inlet Hose

  1. Release the power steering fluid reservoir inlet hose (1) from the plastic clip (2) and remove the plastic push pin retainer (3).

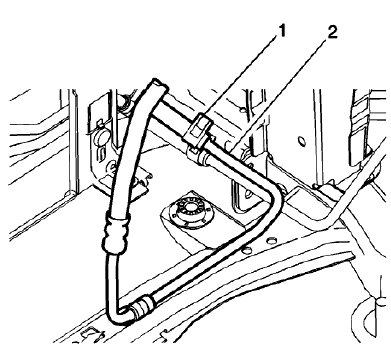

Fig. 30: P/S Fluid Reservoir Inlet Pipe
Fig. 30: P/S Fluid Reservoir Inlet Pipe

  1. Release the power steering fluid reservoir inlet pipe clamp (1) and disconnect the power steering fluid reservoir inlet pipe (2) from the power steering fluid cooler.
  2. Remove the power steering fluid reservoir inlet pipe from the vehicle.

Installation Procedure

  1. Position the power steering fluid reservoir inlet pipe on the vehicle.

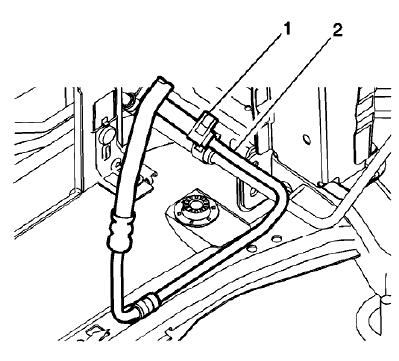

Fig. 31: P/S Fluid Reservoir Inlet Pipe
Fig. 31: P/S Fluid Reservoir Inlet Pipe

  1. Connect the power steering fluid reservoir inlet pipe (2) to the power steering fluid cooler and secure with the power steering fluid reservoir inlet pipe clamp (1).

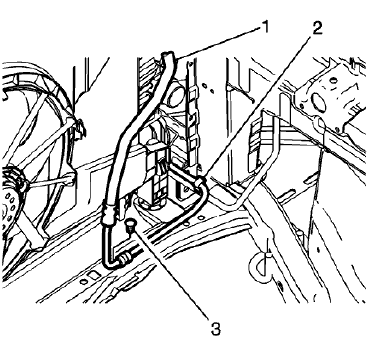

Fig. 32: Power Steering Fluid Reservoir Inlet Hose
Fig. 32: Power Steering Fluid Reservoir Inlet Hose

  1. Install the plastic push pin retainer (3) and secure the power steering fluid reservoir inlet pipe clamp (1) in the plastic clip (2).

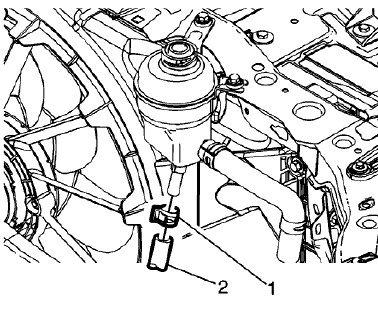

Fig. 33: Steering Fluid Reservoir Inlet Pipe
Fig. 33: Steering Fluid Reservoir Inlet Pipe

  1. Connect the power steering fluid reservoir inlet pipe (2) to the power steering fluid reservoir and secure with the power steering fluid reservoir inlet pipe clamp (1).
  2. Clean any excess power steering fluid from the vehicle and remove the drain pans.
  3. Fill and bleed the power steering system. Refer to Power Steering System Bleeding.
