OUTSIDE REARVIEW MIRROR REPLACEMENT

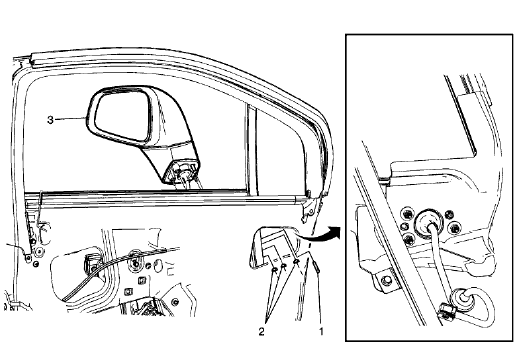

Fig. 7: Outside Rearview Mirror
Fig. 7: Outside Rearview Mirror

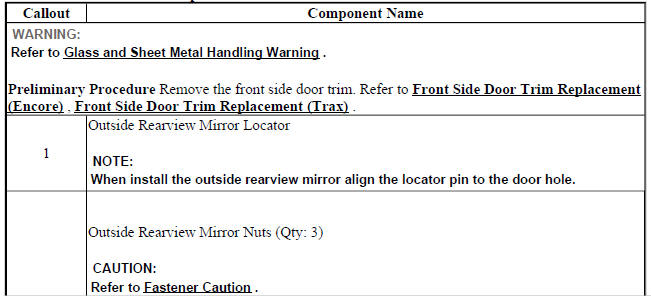

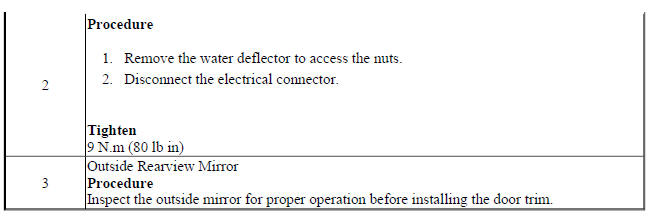

Outside Rearview Mirror Replacement

Outside Rearview Mirror Replacement

Outside Rearview Mirror Replacement

OUTSIDE REARVIEW MIRROR HOUSING UPPER COVER REPLACEMENT

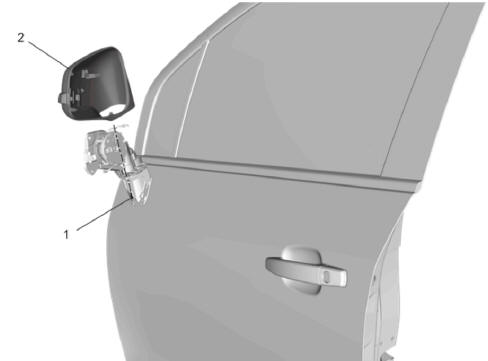

Fig. 8: Outside Rearview Mirror Housing Upper Cover
Fig. 8: Outside Rearview Mirror Housing Upper Cover

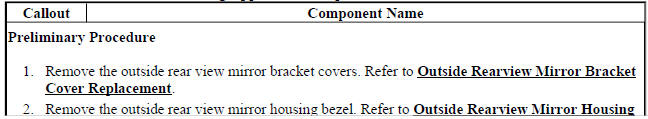

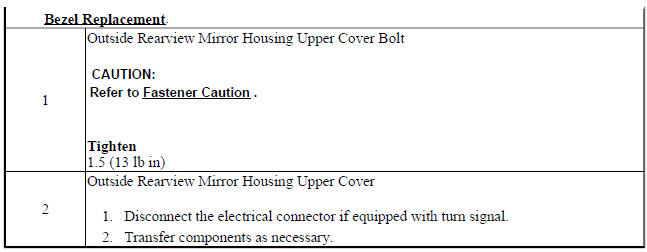

Outside Rearview Mirror Housing Upper Cover Replacement

Outside Rearview Mirror Housing Upper Cover Replacement

Outside Rearview Mirror Housing Upper Cover Replacement

OUTSIDE REARVIEW MIRROR BRACKET COVER REPLACEMENT

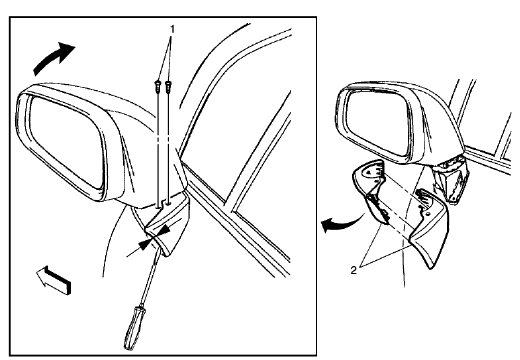

Fig. 9: Outside Rearview Mirror Bracket Cover
Fig. 9: Outside Rearview Mirror Bracket Cover

Outside Rearview Mirror Bracket Cover Replacement

Outside Rearview Mirror Bracket Cover Replacement

Outside Rearview Mirror Bracket Cover Replacement

OUTSIDE REARVIEW MIRROR HOUSING BEZEL REPLACEMENT

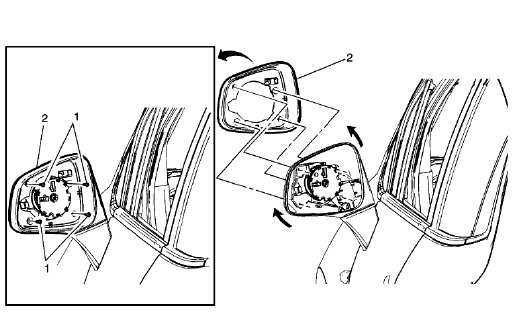

Fig. 10: Outside Rearview Mirror Housing Bezel
Fig. 10: Outside Rearview Mirror Housing Bezel

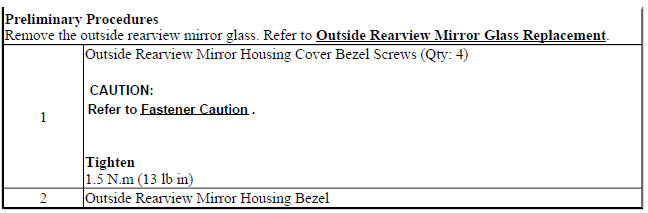

Outside Rearview Mirror Housing Bezel Replacement

Outside Rearview Mirror Housing Bezel Replacement

Outside Rearview Mirror Housing Bezel Replacement

OUTSIDE REARVIEW MIRROR REMOTE CONTROL SWITCH REPLACEMENT (ENCORE)

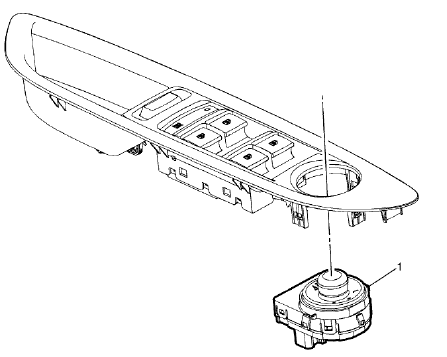

Fig. 11: Outside Rearview Mirror Remote Control Switch
Fig. 11: Outside Rearview Mirror Remote Control Switch

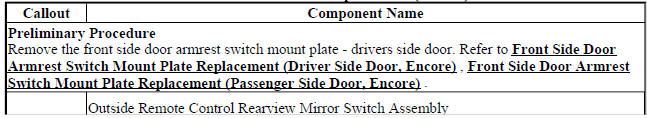

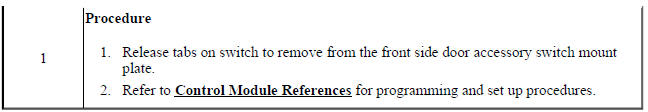

Outside Rearview Mirror Remote Control Switch Replacement (Encore)

Outside Rearview Mirror Remote Control Switch Replacement (Encore)

Outside Rearview Mirror Remote Control Switch Replacement (Encore)

OUTSIDE REARVIEW MIRROR REMOTE CONTROL SWITCH REPLACEMENT (TRAX)

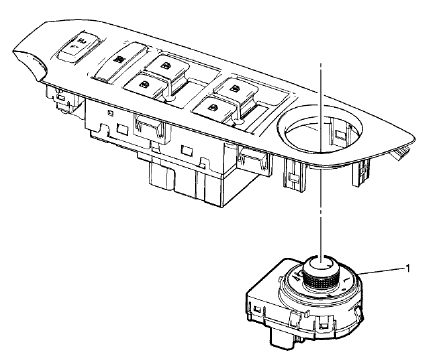

Fig. 12: Outside Rearview Mirror Remote Control Switch
Fig. 12: Outside Rearview Mirror Remote Control Switch

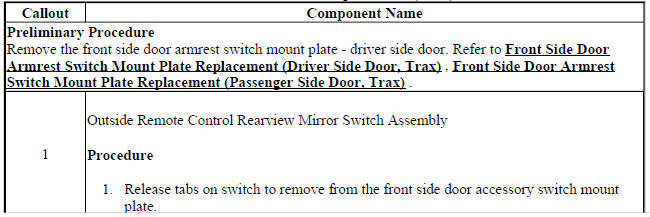

Outside Rearview Mirror Remote Control Switch Replacement (Trax)

Outside Rearview Mirror Remote Control Switch Replacement (Trax)

Outside Rearview Mirror Remote Control Switch Replacement (Trax)

OUTSIDE REARVIEW MIRROR INNER ACTUATOR REPLACEMENT

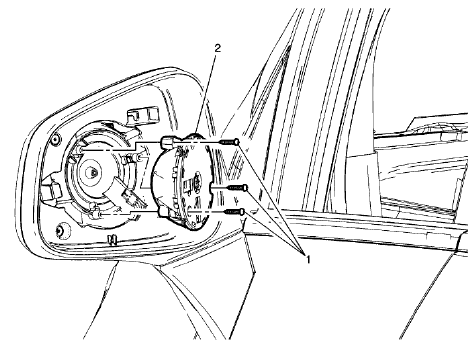

Fig. 13: Outside Rearview Mirror Inner Actuator
Fig. 13: Outside Rearview Mirror Inner Actuator

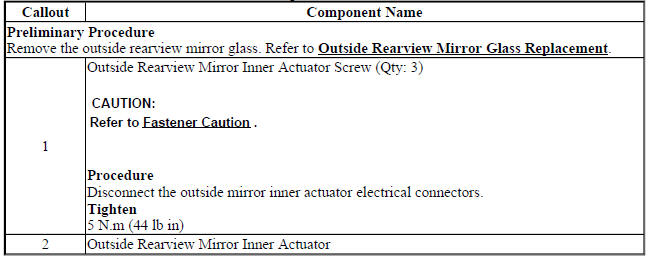

Outside Rearview Mirror Inner Actuator Replacement

Outside Rearview Mirror Inner Actuator Replacement

OUTSIDE REARVIEW MIRROR GLASS REPLACEMENT

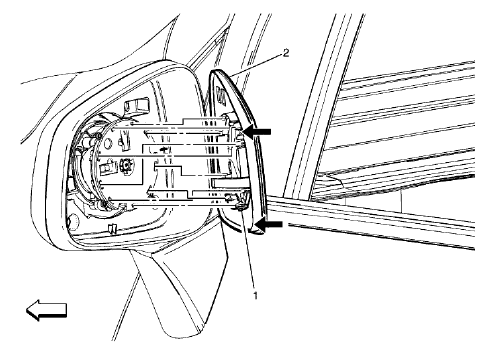

Fig. 14: Outside Rearview Mirror Glass
Fig. 14: Outside Rearview Mirror Glass

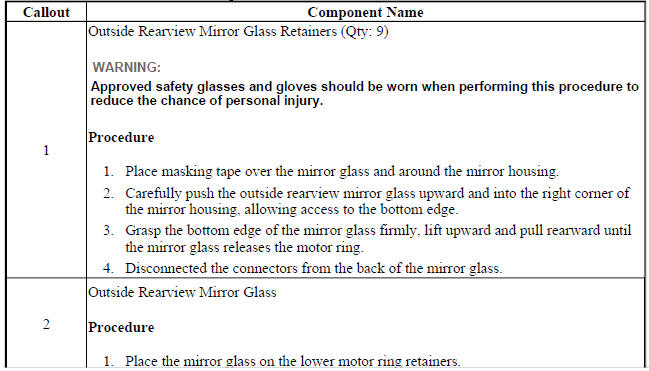

Outside Rearview Mirror Glass Replacement

Outside Rearview Mirror Glass Replacement

Outside Rearview Mirror Glass Replacement

INSIDE REARVIEW MIRROR REPLACEMENT

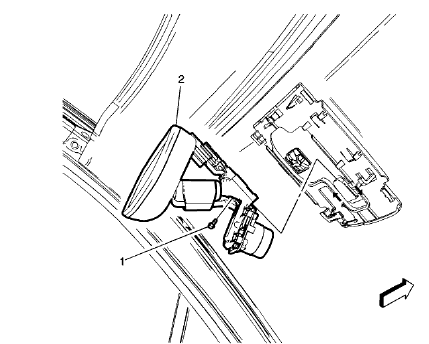

Fig. 15: Inside Rearview Mirror
Fig. 15: Inside Rearview Mirror

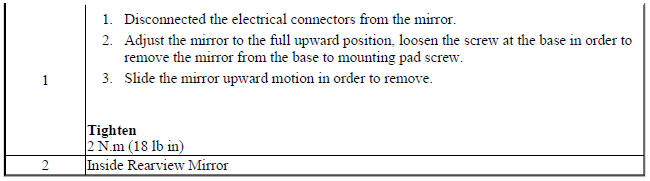

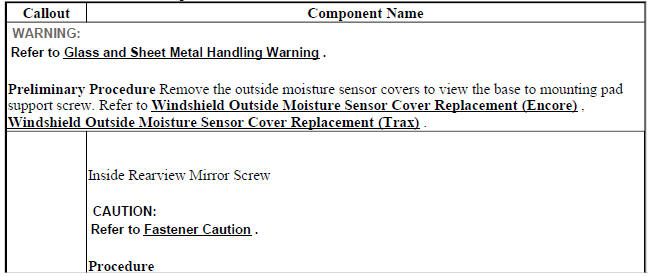

Inside Rearview Mirror Replacement

Inside Rearview Mirror Replacement

Inside Rearview Mirror Replacement
