Chevrolet Trax: Interior Lighting
Instrument Panel Illumination Control
.gif)

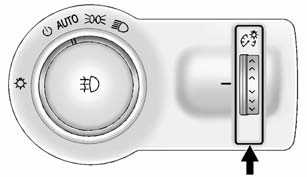

This feature controls the brightness of the instrument panel controls and infotainment display screen. The thumbwheel is to the left of the steering column on the instrument panel.
.gif)
(Instrument Panel
Brightness): Move the
thumbwheel up or down and hold, to
brighten or dim the instrument panel
controls and infotainment display
screen.
Courtesy Lamps
The courtesy lamps come on automatically when any door is opened and the dome lamp is in the door position.
Dome Lamps
Front and Rear Dome Lamps
.gif)

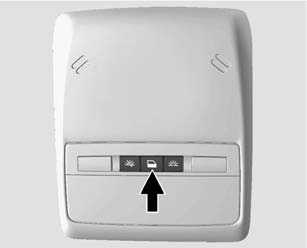

The front dome lamp controls are in the overhead console.
.gif)
(Dome Lamp Override): Press
to turn the lamps off, even when a
door is open.
.gif)
(Door): When the button is
returned to the middle position, the
lamps turn on automatically when a
door is opened.
.gif)
(On): Press to turn on the
dome lamps.
.gif)

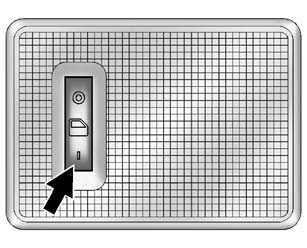

The rear dome lamp controls are in the headliner above the rear seats.
.gif)
(Dome Lamp Override): Press
to turn the lamps off, even when a
door is open.
.gif)
(Door): When the button is
returned to the middle position, the
lamps turn on automatically when a
door is opened.
.gif)
(On): Press to turn on the dome
lamps.
Reading Lamps
.gif)

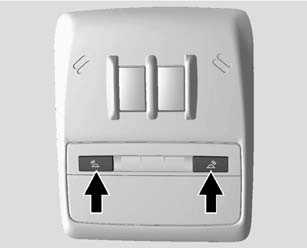

The front reading lamps are in the overhead console.
.gif)
or
.gif)
(Reading Lamps): Press
to turn each lamp on or off.
