Chevrolet Trax: Heater outlet hose replacement (LUJ, LUV REAR)

Chevrolet Trax (2013-2022) Workshop Manual / HVAC & Restraints / Heating, Ventilation, and Air Conditioning / Repair instructions / Heater outlet hose replacement (LUJ, LUV REAR)

Removal Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling .
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .

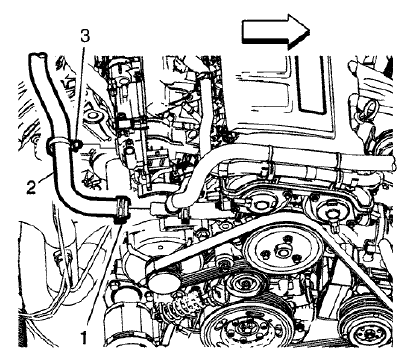

Fig. 58: Rear Hose, Hose Retainer And Rear Hose Clamp
Fig. 58: Rear Hose, Hose Retainer And Rear Hose Clamp

  1. Using BO-38185 Hose Clamp Pliers , reposition the heater outlet rear hose clamp (1) on the heater outlet rear hose (2).
  2. Remove the heater outlet rear hose (2) from the heater outlet rear hose tee.
  3. Remove the heater outlet rear hose retainer (3) from the engine.

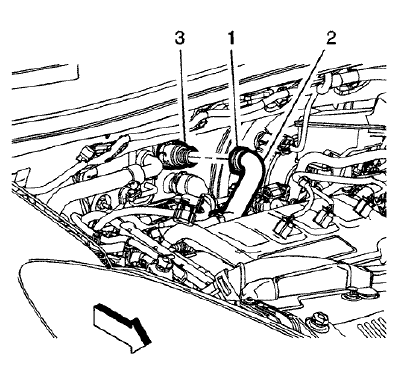

Fig. 59: Heater Outlet Hose
Fig. 59: Heater Outlet Hose

  1. Using BO-38185 Hose Clamp Pliers , reposition the heater outlet rear hose clamp (1) on the heater outlet rear hose (2).
  2. Remove the heater outlet rear hose (2) from the heater outlet hose connector (3).
  3. Remove the heater outlet hose assembly (2) from the vehicle.

Installation Procedure

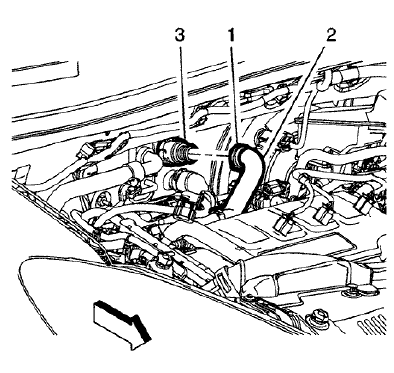

Fig. 60: Heater Outlet Hose
Fig. 60: Heater Outlet Hose

  1. Install the heater outlet rear hose (2) into the heater outlet hose connector (3).
  2. Using BO-38185 Hose Clamp Pliers , reposition the heater outlet rear hose clamp (1) on the heater outlet rear hose (2).

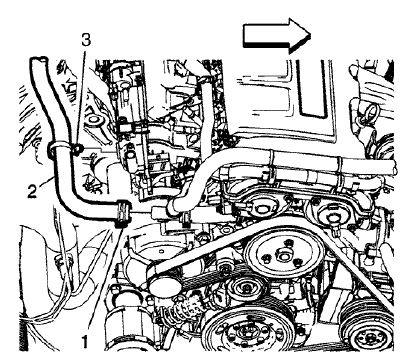

Fig. 61: Rear Hose, Hose Retainer And Rear Hose Clamp
Fig. 61: Rear Hose, Hose Retainer And Rear Hose Clamp

  1. Install the heater outlet rear hose retainer (3) to the engine.
  2. Install the heater outlet rear hose (2) to the heater outlet rear hose tee.
  3. Using BO-38185 Hose Clamp Pliers , reposition the heater outlet rear hose clamp (1), on the heater outlet rear hose (2).
  4. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  5. Fill the cooling system. Refer to Cooling System Draining and Filling .
  6. Check the cooling system for leaks.

HEATER CORE OUTLET TUBE REPLACEMENT

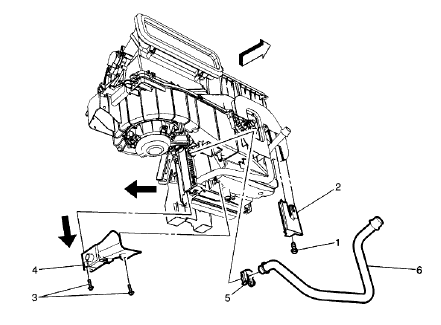

Fig. 62: Heater Core Outlet Tube
Fig. 62: Heater Core Outlet Tube

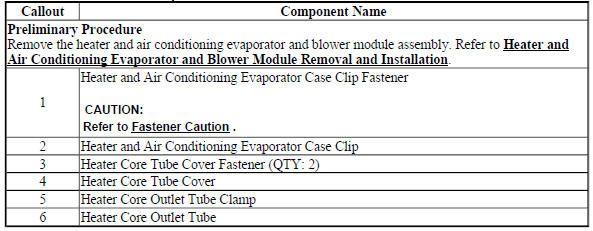

Heater Core Outlet Tube Replacement

Heater Core Outlet Tube Replacement

HEATER CORE INLET TUBE REPLACEMENT

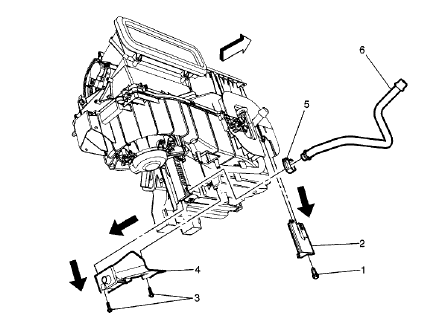

Fig. 63: Heater Core Inlet Tube
Fig. 63: Heater Core Inlet Tube

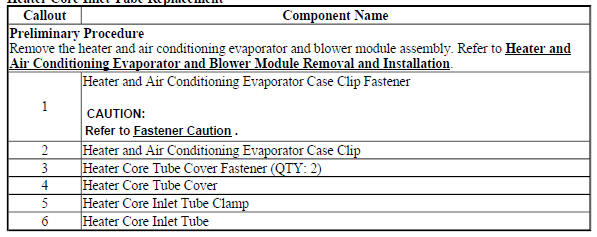

Heater Core Inlet Tube Replacement

Heater Core Inlet Tube Replacement

HEATER INLET HOSE CONNECTOR REPLACEMENT

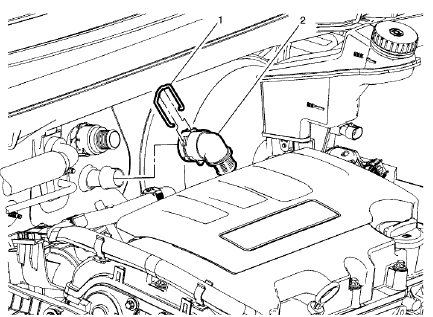

Fig. 64: Heater Inlet Hose Connector
Fig. 64: Heater Inlet Hose Connector

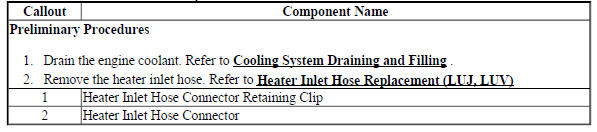

Heater Inlet Hose Connector Replacement

Heater Inlet Hose Connector Replacement

HEATER OUTLET HOSE CONNECTOR REPLACEMENT

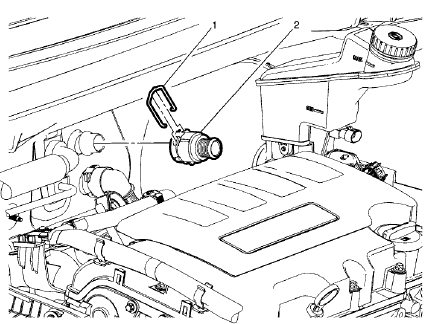

Fig. 65: Heater Outlet Hose Connector
Fig. 65: Heater Outlet Hose Connector

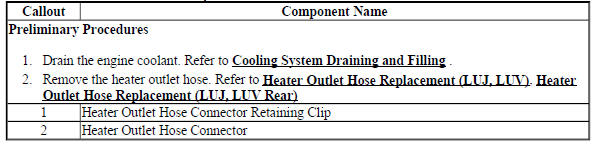

Heater Outlet Hose Connector Replacement

Heater Outlet Hose Connector Replacement

PASSENGER COMPARTMENT AIR FILTER REPLACEMENT

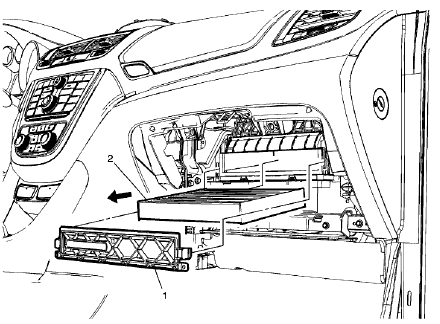

Fig. 66: Passenger Compartment Air Filter
Fig. 66: Passenger Compartment Air Filter

Passenger Compartment Air Filter Replacement

Passenger Compartment Air Filter Replacement
