Chevrolet Trax: Headlining trim panel replacement (with sunroof, encore)
Removal Procedure
WARNING: Do not attempt to repair or alter the head impact
energy-absorbing
material glued to the headliner or to the garnish trims. If the material
is damaged, replace the headliner and/or the garnish trim. Failure to
do so could result in personal injury.
CAUTION: If a vehicle is equipped with a head curtain inflator module
ensure
that the inflator module and tether are undamaged. If tether or curtain
airbag are damaged in any way, they must be replaced.
CAUTION: Use care when working around the head curtain inflator module.
Sharp tools may puncture the curtain airbag. If the head curtain
inflator module is damaged in any way, it must be replaced.
- Disable the SIR system. Refer to SIR Disabling and Enabling
Fig. 32: Windshield Garnish Molding Assembly
- Remove the windshield garnish molding assembly (1). Refer to Windshield
Garnish Molding
Replacement (Encore) .
Fig. 33: Sunshade Assembly
- Remove the sunshade assembly (3). Refer to Sunshade Replacement (Encore)
.
Fig. 34: Sunshade Support Assembly
- Remove the sunshade support assembly (2). Refer to Sunshade Support
Replacement (Encore) .

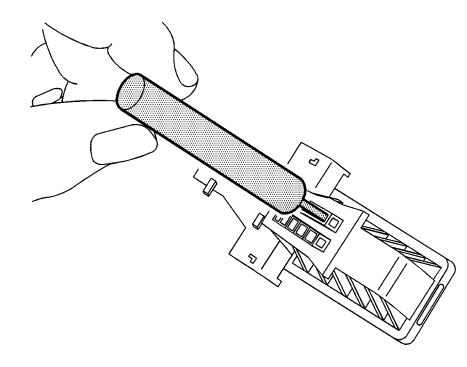

Fig. 35: Roof Rail Assist Handle Assembly
- Remove the roof rail assist handle assembly (2). Refer to Roof Rail
Assist Handle Replacement
(Encore) .
Fig. 36: Roof Rail Front Stowage Compartment
- Remove the roof rail front stowage compartment (2). Refer to Roof Rail
Front Stowage Compartment
Replacement (Encore) .
Fig. 37: Roof Rail Rear Assist Handle Assembly
- Remove the roof rail rear assist handle assembly (2). Refer to Roof Rail
Rear Assist Handle
Replacement (Encore) .
Fig. 38: Windshield Outside Moisture Sensor Cover
- Remove the windshield outside moisture sensor cover (1). Refer to
Windshield Outside Moisture
Sensor Cover Replacement (Encore)
Fig. 39: Roof Console Assembly
- Remove the roof console assembly (2). Refer to Roof Console Replacement
.
Fig. 40: Rear Seat Position Center Courtesy Lamp
- Remove the rear seat position center courtesy lamp (1). Refer to Rear
Seat Position Center Courtesy
Lamp Replacement .
Fig. 41: Center Pillar Upper Trim Panel Assembly
- Remove the center pillar upper trim panel assembly (3). Refer to Center
Pillar Upper Trim Panel
Replacement (Encore) .
Fig. 42: Body Lock Pillar Upper Trim Panel
- Remove the body lock pillar upper trim panel (3). Refer to Body Lock
Pillar Upper Trim Panel
Replacement .
- Fully recline the driver and passenger seats backward.
- Fold down the rear seat backs.
Fig. 43: Headliner Trim Panel And Retainers
- Remove the 3 headliner trim panel retainers (1).
- Disconnect the electrical connectors from the headliner trim panel
assembly.
- With the aid of an assistant, remove the headliner trim panel assembly
(2) from the vehicle through the
liftgate opening.
- Prior to removal, note the routing of the wire harness to aid in
reassembly and ensure proper installation.
Installation Procedure
Fig. 44: Headliner Trim Panel And Retainers
- With the aid of an assistant, position the headliner trim panel assembly
(2) into the vehicle through the
liftgate opening.
- Connect the electrical connectors to the headliner trim panel assembly
(2).
- Tape any unused connectors to the headliner with a high adhesive tape.
- Install the 3 headliner trim panel retainers (1).

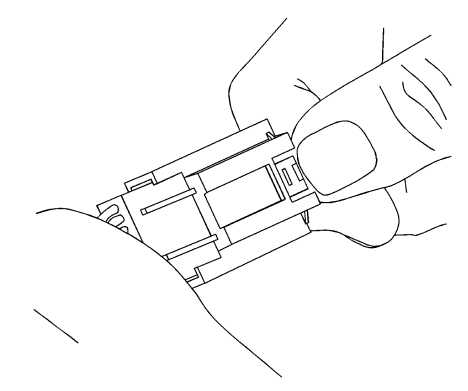

Fig. 45: Body Lock Pillar Upper Trim Panel
- Install the body lock pillar upper trim panel (3). Refer to Body Lock
Pillar Upper Trim Panel
Replacement .
Fig. 46: Center Pillar Upper Trim Panel Assembly
- Install the center pillar upper trim panel assembly (3). Refer to Center
Pillar Upper Trim Panel
Replacement (Encore) .

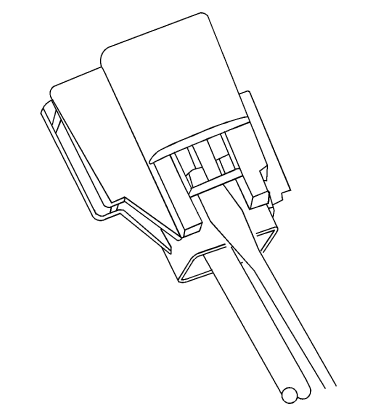

Fig. 47: Rear Seat Position Center Courtesy Lamp
- Install the rear seat position center courtesy lamp (1). Refer to Rear
Seat Position Center Courtesy
Lamp Replacement .
Fig. 48: Roof Console Assembly
- Install the roof console assembly (2). Refer to Roof Console Replacement
.

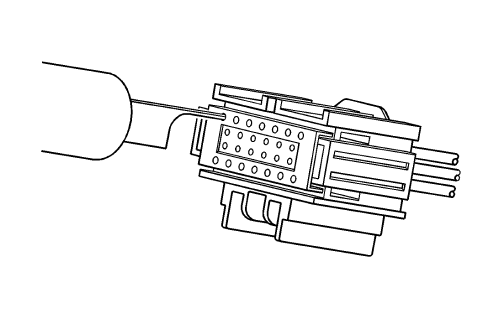

Fig. 49: Windshield Outside Moisture Sensor Cover
- Install the windshield outside moisture sensor cover (1). Refer to
Windshield Outside Moisture Sensor
Cover Replacement (Encore) .
Fig. 50: Roof Rail Front Stowage Compartment
- Install the roof rail front stowage compartment (2). Refer to Roof Rail
Front Stowage Compartment
Replacement (Encore) .
Fig. 51: Roof Rail Rear Assist Handle Assembly
- Install the roof rail rear assist handle assembly (2). Refer to Roof
Rail Rear Assist Handle Replacement
(Encore) .
Fig. 52: Roof Rail Assist Handle Assembly
- Install the roof rail assist handle assembly (2). Refer to Roof Rail
Assist Handle Replacement
(Encore) .
Fig. 53: Sunshade Support Assembly
- Install the sunshade support assembly (2). Refer to Sunshade Support
Replacement (Encore) .
Fig. 54: Sunshade Assembly
- Install the sunshade assembly (3). Refer to Sunshade Replacement (Encore)
.

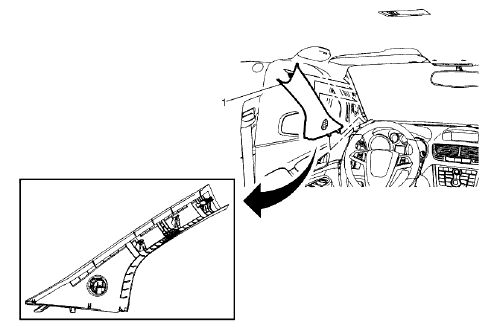

Fig. 55: Windshield Garnish Molding Assembly
- Install the windshield garnish molding assembly (1). Refer to Windshield
Garnish Molding
Replacement (Encore) .
- Enable the SIR system. Refer to SIR Disabling and Enabling .
