Chevrolet Trax: Front wheel drive shaft outer joint and boot replacement

Special Tools

DT-35910 Drive Axle Boot Clamp Pliers

For equivalent regional tools, refer to Special Tools

Disassemble Procedure

1. Remove the wheel drive shaft from the vehicle. Refer to Front Wheel Drive Shaft Replacement - Left Side, and Front Wheel Drive Shaft Replacement - Right Side.

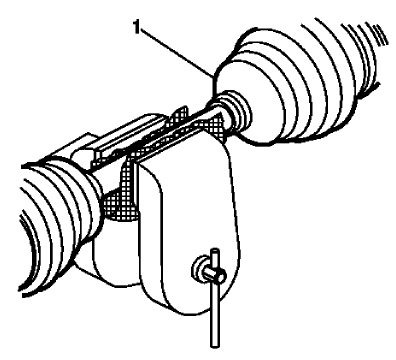

Fig. 51: View Of Front Wheel Drive Shaft Inner Joint

2. Install the drive axle shaft (1) in a soft jawed vice.

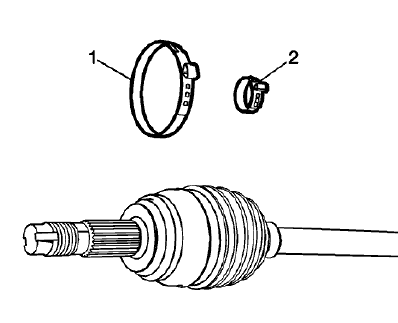

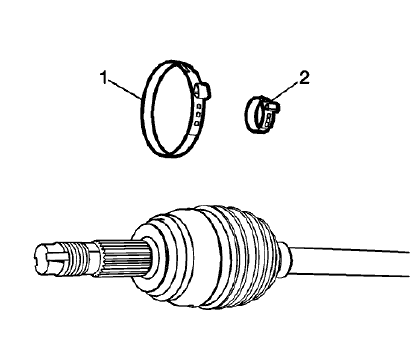

Fig. 52: Drive Shaft Boot Clamps

CAUTION: Do not cut through the wheel drive shaft inboard or outboard boot during service. Cutting through the boot may damage the sealing surface of the housing and the tripot or the constant velocity joint bushing. Damage to the sealing surface may lead to water and dirt intrusion and premature wear of the constant velocity joint.

3. Using a pair of side cutters, remove the outer boot clamp (1) and the inner boot clamp (2).
4. Discard the boot clamps (1) and (2). Use NEW clamps only.

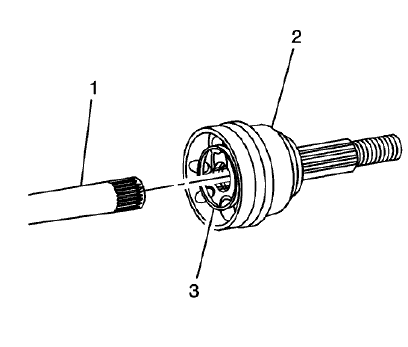

Fig. 53: Wheel Drive Shaft, Inner Race And CV Joint

5. Remove the CV joint (2) from the wheel drive shaft (1) while tapping the inner race (3) using a bronze bar and a hammer.

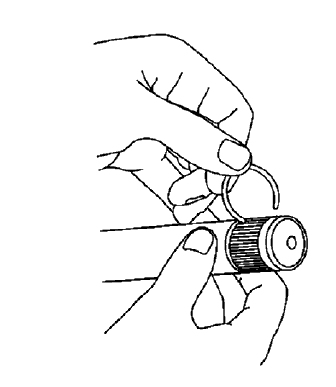

Fig. 54: View Of Axle Shaft Retaining Ring

6. Using the appropriate tool, remove and discard the retaining clip.

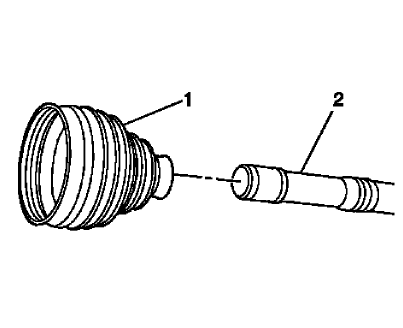

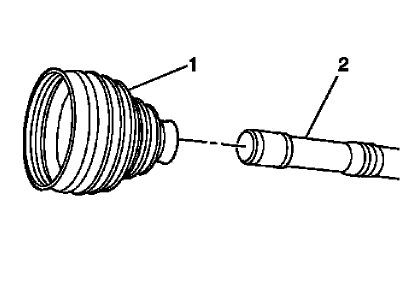

Fig. 55: Identifying Clamp & Wheel Drive Shaft

7. Remove the boot (1) from the wheel drive shaft (2).
8. Inspect the outer CV joint for damage and wear. Refer to Wheel Drive Shaft Outer Joint Inspection.

Assemble Procedure

Fig. 56: Identifying Clamp & Wheel Drive Shaft

1. Position the boot (1) on the wheel drive shaft (2).

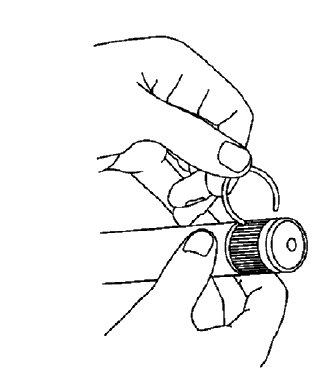

Fig. 57: View Of Axle Shaft Retaining Ring

2. Using the appropriate tool, install the NEW retaining clip.

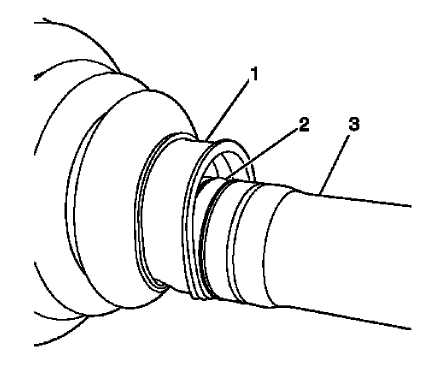

Fig. 58: Identifying Groove In Wheel Drive Shaft

3. Ensure that the boot (1) is properly seated in the grooved (2) wheel drive shaft (3).

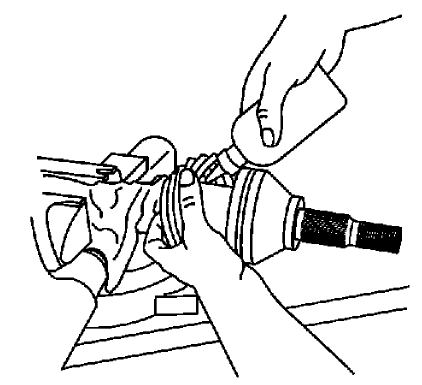

Fig. 59: Inserting Remaining Grease From Service Kit Into Seal

4. Place approximately half the lubricant from the service kit inside the outboard boot and pack the CV joint with the remaining lubricant.

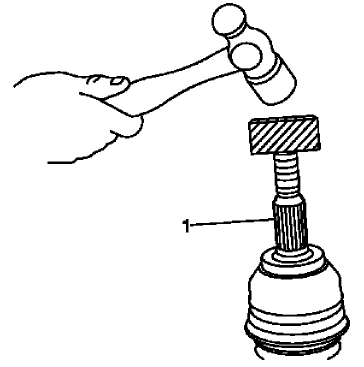

Fig. 60: Installing CV Joint

5. Using a block of wood and a hammer, install the CV joint (1) on the wheel drive shaft.

Fig. 61: Drive Shaft Boot Clamps

6. Install the inner boot clamp (2) and the outer boot clamp (1).

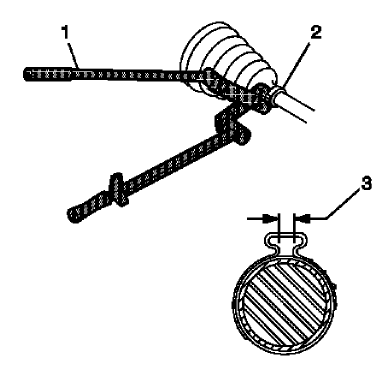

Fig. 62: Identifying Pliers Breaker Bar, Torque Wrench, Ratchet & Gap Measurement

NOTE: Ensure that the boot clamp is properly positioned around the entire circumference of the boot.

7. Using the DT-35910 pliers and a torque or ratchet wrench and breaker bar (1), close the boot clamp (2) until the gap (3) measures 1.9 mm (0.07 in).

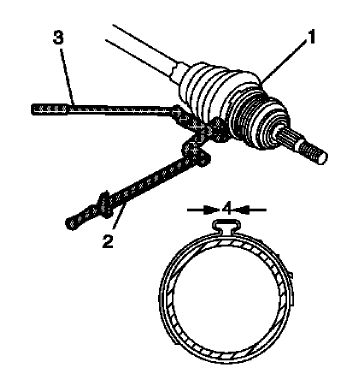

Fig. 63: View Of Outboard Seal, Large Seal Retaining Clamp & CV Joint Outer Race

8. Using the DT-35910 pliers and a torque or ratchet wrench (2) and breaker bar (3), close the boot clamp (1) until the gap (4) measures 1.7 mm (0.06 in).
9. Distribute the lubricant within the outer CV joint by moving it in a circular motion at least four to five times.
10. Remove the wheel drive shaft from the bench vise.
11. Install the wheel drive shaft assembly. Refer to Front Wheel Drive Shaft Replacement - Left Side, and Front Wheel Drive Shaft Replacement - Right Side.
