FIRING ORDER & CYLINDER IDENTIFICATION

NOTE: This information is intended as a quick reference for firing order and cylinder identification only. The information provided covers many vehicles and may include some information that does not apply to the vehicle you have currently selected.

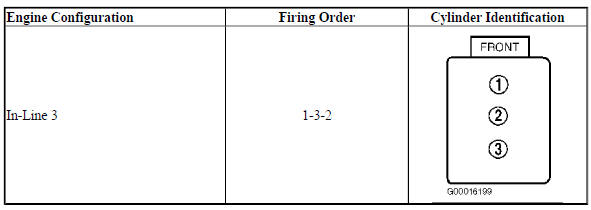

3 CYLINDER ENGINE

3 CYLINDER ENGINE

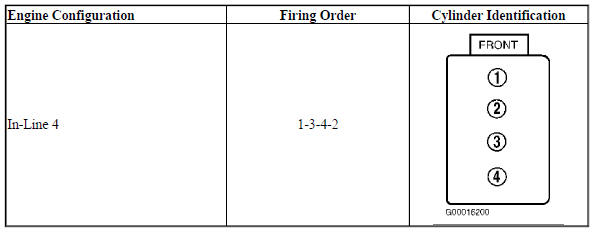

4 CYLINDER ENGINE

4 CYLINDER ENGINE

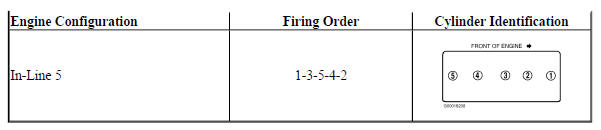

5 CYLINDER ENGINE

5 CYLINDER ENGINE

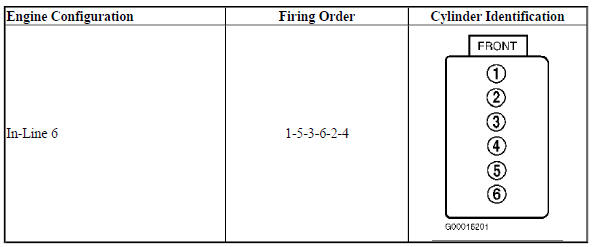

IN-LINE 6 ENGINE

IN-LINE 6 ENGINE

V6 ENGINE

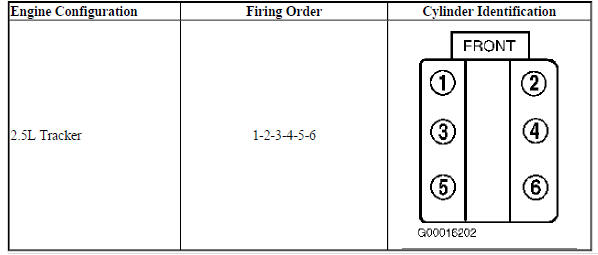

2.5L V6 Engine - Tracker

2.5L V6 Engine - Tracker

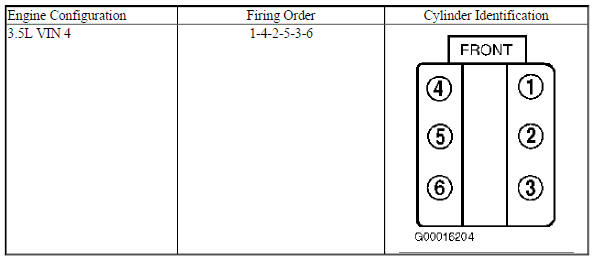

3.5L VIN 4 V6 Engine

3.5L VIN 4 V6 Engine

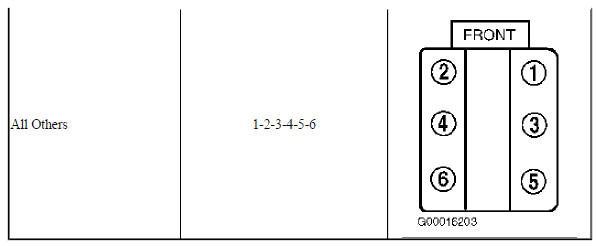

All Other V6 Engines

All Other V6 Engines

All Other V6 Engines

8 CYLINDER ENGINE

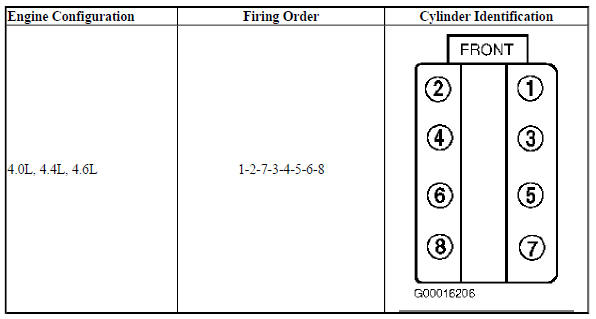

4.0L, 4.4L & 4.6L V8 Engines

4.0L, 4.4L & 4.6L V8 Engines

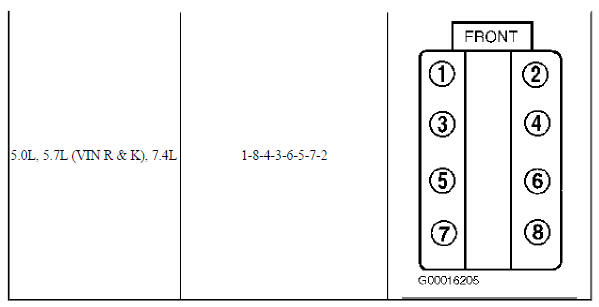

5.0L, 5.7L (VIN R & VIN K) & 7.4L V8 Engines

5.0L, 5.7L (VIN R & VIN K) & 7.4L V8 Engines

5.0L, 5.7L (VIN R & VIN K) & 7.4L V8 Engines

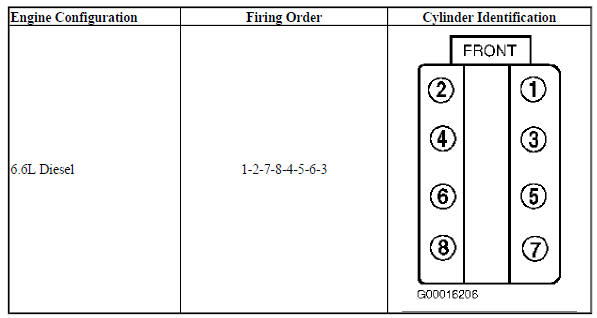

6.6L Diesel V8 Engine

6.6L Diesel V8 Engine

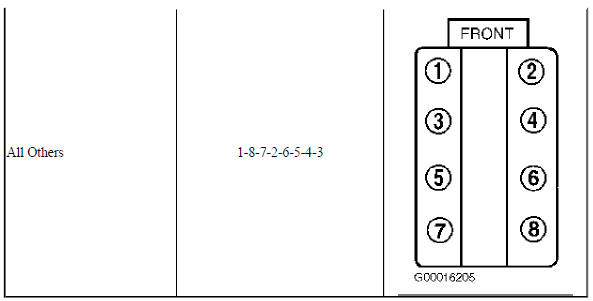

All Other V8 Engines

All Other V8 Engines

All Other V8 Engines
