Chevrolet Trax: DTC P00B3 OR P00B4 (2H0 OR LUJ): Radiator coolant temperature (RCT) sensor

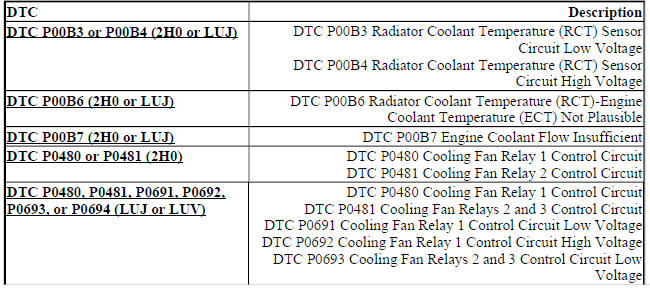

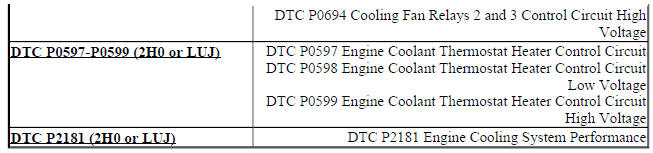

DIAGNOSTIC CODE INDEX

DIAGNOSTIC CODE INDEX

DIAGNOSTIC CODE INDEX

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC P00B3

Radiator Coolant Temperature (RCT) Sensor Circuit Low Voltage

DTC P00B4

Radiator Coolant Temperature (RCT) Sensor Circuit High Voltage

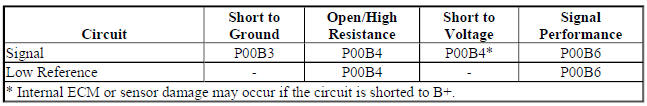

Diagnostic Fault Information

Diagnostic Fault Information

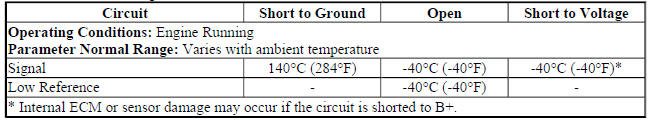

Typical Scan Tool Data

Radiator Coolant Temperature Sensor

Radiator Coolant Temperature Sensor

Circuit/System Description

NOTE: The radiator coolant temperature sensor is referred to as B34B Engine Coolant Temperature Sensor 2 in schematics and other areas.

The radiator coolant temperature (RCT) sensor is a variable resistor that measures the temperature of the engine coolant in the radiator. This diagnostic checks for an open, short to ground or an intermittent circuit condition between the engine control module (ECM) and RCT sensor.

The following table illustrates the difference between temperature, resistance, and voltage:

Circuit/System Description

Conditions for Running the DTC

P00B3

  • The engine run time is greater than 10 s.
  • The intake air temperature (IAT) is colder than 70ºC (158ºF).
  • The DTC runs continuously when the above conditions are met.

P00B4

  • The engine run time is greater than 60 s.
  • The intake air temperature (IAT) is warmer than -7ºC (19ºF).
  • The DTC runs continuously when the above conditions are met.

Conditions for Setting the DTC

P00B3

The ECM detects that the RCT sensor is warmer than 149ºC (300ºF) for greater than 10 s.

P00B4

NOTE: The scan tool only displays to -40ºC (-40ºF).

The ECM detects that the RCT sensor is colder than -60ºC (-76ºF) for greater than 10 s.

Action Taken When the DTC Sets

DTC P00B3 and P00B4 are Type B DTCs.

Conditions for Clearing the MIL/DTC

DTC P00B3 and P00B4 are Type B DTCs.

Diagnostic Aids

NOTE:

The engine coolant temperature (ECT) sensor is mounted on the engine and the radiator coolant temperature (RCT) sensor is mounted on the radiator.

  • As the thermostat opens, the RCT sensor temperature should rise steadily, then stabilize once the thermostat opens completely.
  • Test the RCT sensor at various temperature levels in order to evaluate the possibility of a skewed sensor.
  • If the vehicle has sat for greater than 8 hours, the ECT sensor and the RCT sensor values should display within 3ºC (5ºF).

Reference Information

Schematic Reference

Engine Heating/Cooling Schematics (Encore), Engine Heating/Cooling Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions (LUV) , Powertrain Diagnostic Trouble Code (DTC) Type Definitions (2H0)

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

  1. Ignition ON.
  2. Verify the scan tool Radiator Coolant Temperature Sensor parameter is between -39 to + 120ºC (-38 to +248ºF) and changes with engine run time.
  • If not between -39 to + 120ºC (-38 to +248ºF) or does not change

Refer to Circuit/System Testing.

  • If between -39 to + 120ºC (-38 to +248ºF) and changes
  1. Operate the vehicle within the Conditions for Running the DTC. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.
  2.  Verify the DTC does not set.
  • If the DTC sets

Refer to Circuit/System Testing.

  • If the DTC does not set
  1. All OK.

Circuit/System Testing

  1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the B34B Engine Coolant Temperature Sensor. It may take up to 2 min for all vehicle systems to power down.
  2. Test for less than 5 ohms between the low reference circuit terminal 2 and ground.
  • If 5 ohms or greater
  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for less than 2 ohms in the low reference circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.
  • If less than 5 ohms
  1. Ignition ON.
  2. Verify the scan tool Radiator Coolant Temperature Sensor parameter is colder than -39ºC (-38ºF).
  • If warmer than -39ºC (-38ºF)
  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for infinite resistance between the signal circuit terminal 1 and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the K20 Engine Control Module.
  • If colder than -39ºC (-38ºF)
  1. Install a 3 A fused jumper wire between the signal circuit terminal 1 and the low reference circuit terminal 2.
  2. Verify the scan tool Radiator Coolant Temperature sensor parameter is warmer than 137ºC (280ºF).
  • If colder than 137ºC (280ºF)
  1. Ignition OFF, remove the jumper wire, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V
  1. Ignition OFF.
  2. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.
  • If warmer than 137ºC (280ºF)
  1. Test or replace the B34B Engine Coolant Temperature Sensor.

Component Testing

  1. Ignition OFF, disconnect the harness connector at the B34B Engine Coolant Temperature Sensor.
  2. Test the RCT sensor by varying the sensor temperature while monitoring the sensor resistance. Compare the readings with the Temperature Versus Resistance table. The resistance values should be in range of the table values.
  • If not within the specified range
  • Replace the B34B Engine Coolant Temperature Sensor.
  • If within the specified range
  1. Test for infinite resistance between each terminal and the sensor housing.
  • If less than infinite resistance

Replace the B34B Engine Coolant Temperature Sensor.

  • If infinite resistance
  1. All OK.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the diagnostic procedure.

  • Engine Coolant Temperature Sensor Replacement (Water Outlet) , Engine Coolant Temperature Sensor Replacement (Radiator) for radiator coolant temperature sensor replacement.
  • Engine Control Module Replacement for engine control module replacement, setup, and programming.
