Chevrolet Trax: DTC B1825, B2355, B2365, OR B2375: Driver seat front vertical position sensor

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Power Seats / Power Seats - Diagnostic information and procedures / DTC B1825, B2355, B2365, OR B2375: Driver seat front vertical position sensor

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B2355 01

Driver Seat Front Vertical Position Sensor Circuit Short to Battery

DTC B2355 06

Driver Seat Front Vertical Position Sensor Circuit Low Voltage/Open

DTC B2365 01

Driver Seat Rear Vertical Position Sensor Circuit Short to Battery

DTC B2365 06

Driver Seat Rear Vertical Position Sensor Circuit Low Voltage/Open

DTC B2375 01

Driver Seat Assembly Horizontal Position Sensor Circuit Short to Battery

DTC B2375 06

Driver Seat Assembly Horizontal Position Sensor Circuit Low Voltage/Open

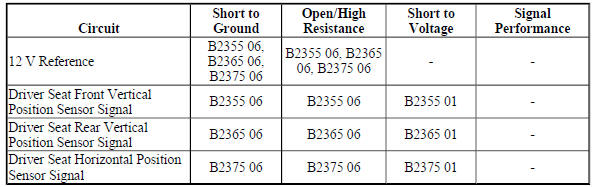

Diagnostic Fault Information

Diagnostic Fault Information

Circuit Description

The seat memory control module monitors the position of the seat motors by using hall effect position sensors which are an internal part of each motor. The module supplies each sensor with a 12 V reference circuit and a low side signal circuit. During seat motor operation, the hall effect position sensor provides a determined number of pulse signals for every revolution of the motor shaft. The scan tool displays these pulse signals as counts that range from 0-65,535. The module counts the feedback pulses from each sensor to determine seat position and end of travel limits for each of the seat motors. High scan tool count values indicate forward or upward seat positions while low count values indicate rearward or downward seat positions.

Conditions for Running the DTC

  • DTC B1325 must not be present.
  • Module battery voltage must be between 9-16 V.

Conditions for Setting the DTC

The seat memory control module does not detect position sensor movement or pulse signals while the adjuster motor is active. The following conditions will set this DTC:

B2355 01, B2365 01, or B2375 01

The seat memory control module detects a voltage greater than 5 V on the sensor signal circuit.

B2355 06, B2365 06, or B2375 06

The seat memory control module detects a short to ground or an open on the sensor signal circuit.

Action Taken When the DTC Sets

  • With a short to ground or an open circuit, the seat memory control module disables the memory recall and easy exit/entry action commands of the motor monitored by the sensor. The motor will respond to manual position commands.
  • With a short to battery voltage, the seat memory control module disables the memory recall and easy exit/entry action commands for all four seat motors. The motors will respond to manual position commands.

Conditions for Clearing the DTC

  • The current DTC clears when the fault is no longer present and the power mode changes to OFF then back to ACC or RUN.
  • The history DTC will clear after 40 consecutive fault-free ignition cycles have occurred.

Reference Information

Schematic Reference

Driver Seat Schematics (Encore), Driver Seat Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Memory Seats Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

  1. Ignition OFF, disconnect the harness connector at the appropriate driver seat motor listed below for which the DTC set:
  • M50D Seat Front Vertical Motor - Driver
  • M55D Seat Rear Vertical Motor - Driver
  • M51D Seat Horizontal Motor - Driver
  1. Ignition ON.
  2. Test for greater than 10.8 V between the 12 V reference circuit terminal 2 and ground.

If 10.8 V or less

  1. Ignition OFF, disconnect the X1 harness connector at the K40 Seat Memory Control Module.
  2. Test for infinite resistance between the 12 V reference circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the 12 V reference circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K40 Seat Memory Control Module.

If greater than 10.8 V

  1. Test for 0.2-2.0 V between the signal circuit terminal 4 and ground.

If less than 0.2 V

  1. Ignition OFF, disconnect the X1 harness connector at the K40 Seat Memory Control Module.
  2. Test for infinite resistance between the signal circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K40 Seat Memory Control Module.

If greater than 2.0 V

  1. Ignition OFF, disconnect the X1 harness connector at the K40 Seat Memory Control Module, ignition ON.
  2. Test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K40 Seat Memory Control Module.

If between 0.2-2.0 V

  1. Test or replace the seat motor.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Front Seat Tilt Adjuster Actuator Replacement
  • Driver or Passenger Seat Vertical Adjuster Actuator Replacement
  • Front Seat Adjuster Actuator Replacement
  • Control Module References for K40 Seat Memory Control Module replacement, programming and setup
