Chevrolet Trax: DTC B1025, B1035, B1045, OR B1055: Audio output circuit

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provide an overview of each diagnostic category.

DTC Descriptors

DTC B1025

Left Front Audio Output Circuit

DTC B1035

Front Audio Output Circuit

DTC B1045

Left Rear Audio Output Circuit

DTC B1055

Right Rear Audio Output Circuit

For symptom byte information refer to Symptom Byte List

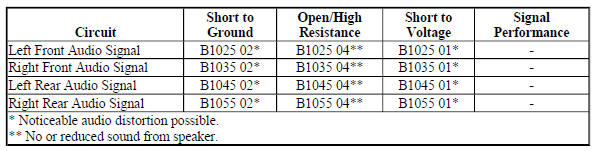

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

Each of the audio output channel circuits (+) and (-), at the radio and audio amplifier have a DC bias voltage that is approximately one half of battery voltage. When using a DMM, each of the audio output channel circuits will measure approximately 6.5 V DC. The audio being played on the system is produced by a varying AC voltage that is centered around the DC bias voltage on the same circuit. The AC voltage is what causes the speaker cone to move and produce sound. The frequency (Hz) of the AC voltage signal is directly related to the frequency of the input (audio source playing) to the audio system. Both the DC bias voltage and the AC voltage signals are needed for the audio system to properly produce sound.

Conditions for Running the DTC

  • Ignition is ON or in the accessory position
  • The system voltage is 9-16 V
  • The test is run once during radio wake up

Conditions for Setting the DTC

B1025 01, B1035 01, B1045 01, B1055 01

The radio detects a short to voltage on the specified audio (+) or (-) circuit.

B1025 02, B1035 02, B1045 02, B1055 02

The radio detects a short to ground on the specified audio (+) or (-) circuit.

B1025 04, B1035 04, B1045 04, B1055 04

The radio detects an open on the specified audio (+) or (-) circuit.

Action Taken When the DTC Sets

The radio continues to send the output signal to the speaker signal circuit with the current fault.

Conditions for Clearing the DTC

  • A current DTC clears when the conditions for setting the DTC are no longer present and the ignition has been cycled from OFF to ON.
  • A history DTC clears after 50 malfunction-free ignition cycles.

Diagnostic Aids

  • Improper speaker mounting or loose trim may cause an audible buzz or distortion. Inspect the appropriate speaker and the surrounding interior trim for proper and secure mounting. If the speaker or surrounding interior trim is found to be loose or improperly secured, correctly secure the item.
  • When equipped with an amplifier, the radio does not set DTCs for the audio outputs.

Reference Information

Schematic Reference

Radio/Navigation System Schematics (Encore), Radio/Navigation System Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Radio/Audio System Description and Operation (with Monochrome Display), Radio/Audio System Description and Operation (with Color Display)

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

  1. Ignition ON, A11 Radio ON, mute OFF.
  2. Verify clear audio is heard from each speaker, adjusting fade and balance controls to test each speaker individually.

If audio is inoperative from one or more speakers, or the audio emitted is not clear.

Refer to Circuit/System Testing.

If clear audio is heard from all speakers.

  1. All OK.

Circuit/System Testing

  1. Ignition OFF, disconnect the harness connector at the appropriate P19 Speaker. Ignition ON, A11 Radio ON, mute OFF.
  2. Test for 5-7 V between each audio signal circuit terminal 1 and terminal 2 and ground.

If less than 5 V

  1. Ignition OFF, disconnect the X1 harness connector at the A11 Radio.
  2. Test for infinite resistance between the signal circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the A11 Radio.

If greater than 7 V

  1. Ignition OFF, disconnect the X1 harness connector at the A11 Radio. Ignition ON.
  2. Test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the A11 Radio.

If between 5-7 V

  1. Test or replace the P19 Speaker.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Speaker Replacement Reference
  • Control Module References for radio replacement, programming, and setup.
