Chevrolet Trax: DTC B0954, B0955, B0956, OR B0957: Parking assist front sensor
Diagnostic Instructions
- Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
- Review Strategy Based Diagnosis for an overview of the diagnostic
approach.
- Diagnostic Procedure Instructions provides an overview of each
diagnostic category.
DTC Descriptors
DTC B0954
Parking Assist Front Sensor Left Corner Circuit
DTC B0955
Parking Assist Front Sensor Left Middle Circuit
DTC B0956
Parking Assist Front Sensor Right Middle Circuit
DTC B0957
Parking Assist Front Sensor Right Corner Circuit
For symptom byte information, refer to Symptom Byte List .

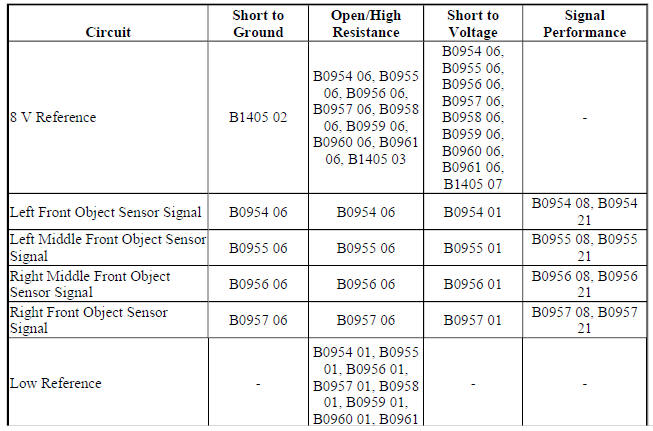

Diagnostic Fault Information
Circuit/System Description
The object sensors are 3-wire sensors that are used to determine the distance
between the vehicle and an object
of interest. The front and rear parking assist control module supplies 8 V to
the object sensors via the 8 V
reference circuit and provides ground via the low reference circuit. The front
and rear parking assist control
module triggers the sensors in a sequential loop. After each sensor transmits,
the front and rear parking assist
control module uses the sensor echo received through the signal circuit to
calculate the distance and position of
an object.
Conditions for Running the DTC
Ignition ON
The park assist is activated. The activation takes place through putting in
the reverse gear or through
operating the park assist switch.
Conditions for Setting the DTC
B0954 01, B0955 01, B0956 01, or B0957 01
The front and rear parking assist control module has detected the voltage at
the sensor circuit is greater than
11.5 V or the object sensor is not grounded.
B0954 06, B0955 06, B0956 06, or B0957 06
The front and rear parking assist control module has detected the voltage at
the sensor circuit is less than 0.5 V.
B0954 08, B0955 08, B0956 08, or B0957 08
The front and rear parking assist control module has received an invalid
signal.
B0954 21, B0955 21, B0956 21, or B0957 21
The object sensor determines no change in the position of an object while the
vehicle is in motion
B0954 3A, B0955 3A, B0956 3A, or B0957 3A
The front and rear parking assist control module determines the wrong sensor
type is installed.
Action Taken When the DTC Sets
- The parking assist is disabled.
- The driver information center displays SERVICE PARK ASSIST.
Conditions for Clearing the DTC
The condition for setting the DTC is no longer present.
Reference Information
Schematic Reference
Object Detection Schematics (Encore), Object Detection Schematics (Trax)
Connector End View Reference
WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS -
INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT
CONNECTOR END VIEWS - INDEX - TRAX
Description and Operation
Object Detection Description and Operation (Rearvision Camera, UVC),
Object Detection Description
and Operation (Rear Park Assist, UD7), Object Detection Description and
Operation (Side Blind Zone
Alert, UFT), Object Detection Description and Operation (Rear Cross Traffic
Alert, UFG)
Electrical Information Reference
- Circuit Testing
- Connector Repairs
- Testing for Intermittent Conditions and Poor Connections
Wiring Repairs
Scan Tool Reference
Control Module References for scan tool information
Circuit/System Verification
- Ignition ON.
- Verify that DTC B1405 is not set.
Refer to DTC B1405 (Rear Park Assist - UD7), DTC B1405 (Front and Rear Park
Assist -
UD5)
- Verify that DTC B0954 01, B0955 01, B0956 01, B0957 01 B0954 21, B0955
21, B0956 21 or B0957 21
is not set.
- Verify the appropriate B78 Front Object Sensor is free of contamination
from snow, mud, dirt, slush or ice.
- If contaminated, clean sensor.
- If there is no contamination
- Refer to Circuit/System Testing.
- Verify that DTC B0954 3A, B0955 3A, B0956 3A or B0957 3A is not set.
Replace the B78 Front Object Sensor with the correct sensor type.
- Ignition ON, transmission in REVERSE.
- Verify the scan tool Parking Assist System Status parameter displays
Enabled.
- If the Parking Assist System displays Disabled
Refer to Circuit/System Testing.
- If the Parking Assist System displays Enabled
- All OK
Circuit/System Testing
- Ignition OFF, scan tool disconnected, disconnect the harness at the
appropriate B78 Front Object Sensor.
It may take up to 2 min for all vehicle systems to power down.
- Test for less than 10 ohms between the low reference circuit terminal 2
and ground.
- Ignition OFF, disconnect the harness connector X3 at the K41 Front and
Rear Parking Assist
Control Module.
- Test for less than 2 ohms in the low reference circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms replace the K41 Front and Rear Parking Assist
Control Module.
- If less than 10 ohms
- Ignition ON.
- Test for 7.5-9.5 V between the 8 V reference circuit terminal 1 and
ground.
- Ignition OFF, disconnect the harness connector at the K41 Front and Rear
Parking Assist Control
Module.
- Test for infinite resistance between the 8 V reference circuit and
ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
If infinite resistance
- Test for less than 2 ohms in the 8 V reference circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K41 Front and Rear Parking Assist
Control Module.
- If greater than 9.5 V
- Ignition OFF, disconnect the harness connector at the K41 Front and Rear
Parking Assist Control
Module, ignition ON.
- Test for less than 1 V between the 8 V reference circuit and ground.
- If 1 V or greater, repair the short to voltage on the circuit.
- If less than 1 V, replace the K41 Front and Rear Parking Assist Control
Module.
- If between 7.5-9.5 V
- Ignition OFF, remove the appropriate B78 Front Object Sensor and switch
locations with another
properly operating sensor. Connect harness connector at both sensors.
Ignition ON.
- Verify the DTC is set for the new location in which the malfunctioning
sensor is installed.
- If DTC set for the new location
Replace the malfunctioning B78 Front Object Sensor.
- If DTC set for the original location
- Ignition OFF, disconnect the harness connector at the K41 Front and Rear
Parking Assist Control
Module, ignition ON.
- Test for less than 1 V between the signal circuit and ground.
- If 1 V or greater, repair the short to voltage on the circuit.
- If less than 1 V
- Ignition OFF.
- Test for infinite resistance between the signal circuit and ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance
- Test for less than 2 ohms in the circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K41 Front and Rear Parking Assist
Control Module.
- If no DTC set
- All OK.
Repair Instructions
Perform the Diagnostic Repair Verification after completing the repair.
- Front Object Alarm Sensor Housing Replacement
- Rear Parking Assist Alarm Sensor Replacement
- Control Module References for front and rear parking assist control
module replacement, programming and setup.
