Chevrolet Trax: DTC B0163, B0183, OR B1405: Passenger compartment
temperature sensor/solar load sensor/control module voltage reference
Diagnostic Instructions
- Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
- Review Strategy Based Diagnosis for an overview of the diagnostic
approach.
- Diagnostic Procedure Instructions provides an overview of each
diagnostic category.
DTC Descriptors
DTC B0163
Passenger Compartment Temperature Sensor Circuit
DTC B0183
Solar Load Sensor Circuit
DTC B1405
Control Module Voltage Reference Output 2 Circuit
For symptom byte information, refer to Symptom Byte List .
Diagnostic Fault Information

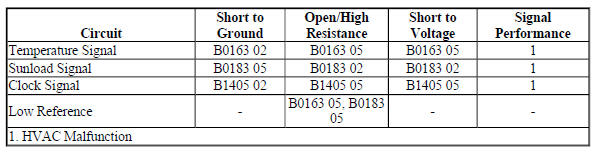

![Diagnostic Fault Information](images/manuals/4484/index412(11).jpg)
Circuit/System Description
The ambient light/sunload sensor integrates the sunload and passenger
compartment temperature functions
within a single assembly.
The solar sensor uses 4 unique circuits as detailed below:
- Low reference circuit - This is a common ground for the ambient light/sunload
sensor assembly.
- Temperature signal circuit - This is the signal circuit for the
temperature sensor.
- Clock signal circuit - This has 2 functions, via a high side PWM signal,
the HVAC control module
supplies power to the sensor as well as a clock input for the sensor
microprocessor.
- Sunload signal circuit - This is used as an output from the solar sensor
to the HVAC control module to
transmit sun heat (IR) intensity, elevation, and azimuth data.
The passenger compartment temperature sensor is a negative temperature
coefficient thermistor. As the air
temperature increases, the sensor resistance decreases. The sensor signal varies
between 0-5 V.
Bright or high intensity light causes the vehicles interior temperature to
increase. The automatic HVAC system
compensates for the increased temperature by diverting additional cool air into
the vehicle.
Conditions for Running the DTC
- Ignition ON
- The HVAC control module is ON.
Conditions for Setting the DTC
B0163 02
The input signal is out of range. The HVAC control module detects voltage
less than 0.1 V on the temperature
signal circuit.
B0163 05
The input signal is out of range. The HVAC control module detects voltage
less than 0.1 V on the temperature
signal circuit.
B0163 05
The input signal is out of range. The HVAC control module detects voltage
greater than 4.9 V on the
temperature signal circuit.
B0183 02
The input signal is out of range. The HVAC control module detects voltage
less than 0.1 V on the solar sensor
signal circuit.
B0183 05
The input signal is out of range. The HVAC control module detects voltage
greater than 4.9 V on the solar
sensor signal circuit.
B1405 02
The input signal is out of range. The HVAC control module detects voltage
less than 10 V on the clock/power
supply circuit.
B1405 05
The input signal is out of range. The HVAC control module detects a short to
voltage or an open the
clock/power supply circuit.
Action Taken When the DTC Sets
B0163 02, B0163 05, B0183 02, B0183 05
The system will use the last valid values as a default.
B1405 02, B1405 05
If no value is read at the time of fault, the HVAC control module uses 0 W/m2
as intensity.
Conditions for Clearing the DTC
The condition for setting the DTC is no longer present.
Reference Information
Schematic Reference
HVAC Schematics (Encore)
Connector End View Reference
WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS -
INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT
CONNECTOR END VIEWS - INDEX - TRAX
Description and Operation
Automatic HVAC Description and Operation
Electrical Information Reference
- Circuit Testing
- Connector Repairs
- Testing for Intermittent Conditions and Poor Connections
- Wiring Repairs
Scan Tool Reference
Control Module References for scan tool information
Circuit/System Verification
- Verify DTCs B0163 and B0183 are not both set concurrently.
If both DTCs are set
Refer to Low Reference Test.
- If both DTCs are not set
- Verify DTC B0163, B0183, or B1405 is not set.
If one of the DTCs is set
Refer to the appropriate diagnostic in Circuit/System Testing.
If none of the DTCs are set
- Verify the B10B Ambient Light/Sunload Sensor is accurate.
If the sensor is not accurate
- Perform the following Circuit/System Testing in the order listed below:
- Circuit/System Testing - Low Reference Test
- Circuit/System Testing - DTC B0163
- Circuit/System Testing - DTC B1405
- Circuit/System Testing - DTC B0183
If the sensor is accurate
- All OK.
Circuit/System Testing
Low Reference Test
NOTE: You must perform the Circuit/System Verification before
proceeding with
Circuit/System Testing.
- Ignition OFF and all vehicle systems OFF, disconnect the harness
connector at the B10B Ambient
Light/Sunload Sensor. It may take up to 10 min for all vehicle systems to
power down.
NOTE: The scan tool must be disconnected from the vehicle before
performing
the next test.
- Test for less than 10 ohms between the low reference circuit terminal 6
and ground.
- Ignition OFF, disconnect the harness connector at the K33 HVAC Control
Module.
- Test for less than 2 ohms in the low reference circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K33 HVAC Control Module.
If less than 10 ohms
- Test or replace the B10B Ambient Light/Sunload Sensor.
DTC B0163
NOTE: You must perform the Circuit/System Verification before
proceeding with
Circuit/System Testing.
- Ignition OFF, disconnect the harness connector at the B10B Ambient Light/Sunload
Sensor, ignition ON.
- Verify the scan tool Passenger Compartment Air Temperature (Unfiltered)
parameter is less than -37ºC (-
35ºF).
If -37ºC (-35ºF) or greater
- Ignition OFF, disconnect the harness connector at the K33 HVAC Control
Module.
- Test for infinite resistance between the signal circuit terminal 3 and
ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance, replace the K33 HVAC Control Module.
If less than -37ºC (-35ºF)
- Install a 3 A fused jumper wire between the signal circuit terminal 3
and the low reference circuit
terminal 6.
- Verify the scan tool parameter Passenger Compartment Air Temperature (Unfiltered)
parameter is greater
than 78ºC (172ºF).
If 78ºC (172ºF) or less
- Ignition OFF, remove the jumper wire and disconnect the harness
connector at the K33 HVAC
Control Module, ignition ON.
- Test for less than 1 V between the signal circuit and ground.
- If 1 V or greater, repair the short to voltage on the circuit.
- If less than 1 V
- Ignition OFF.
- Test for less than 2 ohms in the signal circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K33 HVAC Control Module.
If greater than 78ºC (172ºF)
- Test or replace the B10B Ambient Light/Sunload Sensor.
DTC B0183
NOTE: You must perform the Circuit/System Verification before
proceeding with
Circuit/System Testing.
- Ignition OFF, disconnect the harness connector at the B10B Ambient Light/Sunload
Sensor, ignition ON.
- Test for 4.8-5.2 V between the signal circuit terminal 4 and ground.
If less than 4.8 V
- Ignition OFF, disconnect the harness connector at the K33 HVAC Control
Module.
- Test for infinite resistance between the signal circuit and ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance
- Test for less than 2 ohms in the signal circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K33 HVAC Control Module.
If greater than for 5.2 V
- Ignition OFF, disconnect the harness connector at the K33 HVAC Control
Module, ignition ON.
- Test for less than 1 V between the signal circuit and ground.
- If 1 V or greater, repair the short to voltage on the circuit.
- If less than 1 V, replace the K33 HVAC Control Module.
If between 4.8-5.2 V
- Test or replace the B10B Ambient Light/Sunload Sensor.
- Verify DTC B0183 did not reset.
If DTC B0183 reset
Replace the K33 HVAC Control Module.
If DTC B0183 did not reset
- All OK.
DTC B1405
NOTE: You must perform the Circuit/System Verification before
proceeding with
Circuit/System Testing.
- Ignition OFF, disconnect the harness connector at the B10B Ambient Light/Sunload
Sensor, ignition ON.
- Test for greater than 10 V between signal circuit terminal 2 and ground.
If less than 10 V
- Ignition OFF, disconnect the harness connector at the K33 HVAC Control
Module.
- Test for infinite resistance between signal circuit terminal 2 and
ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance
- Test for less than 2 ohms in the signal circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K33 HVAC Control Module.
If 10 V or greater
- Ignition OFF, disconnect the harness connector at the K33 HVAC Control
Module, ignition ON.
- Test for less than 1 V between the signal circuit terminal 2 and ground.
If 1 V or greater
Repair the short to voltage on the circuit.
If less than 1 V
- Test or replace the B10B Ambient Light/Sunload Sensor.
- Verify DTC B1405 did not reset.
If DTC B1405 reset
Replace the K33 HVAC Control Module.
If DTC B1405 did not reset
- All OK.
Repair Instructions
Perform the Diagnostic Repair Verification after completing the repair.
- HVAC Component Replacement Reference
- Control Module References for HVAC control module replacement,
programming and setup
DTC B0173, B0178, B0509, B0514 OR B3933: DUCT AIR TEMPERATURE SENSOR/EVAPORATOR
TEMPERATURE SENSOR
Diagnostic Instructions
- Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
- Review Strategy Based Diagnosis for an overview of the diagnostic
approach.
- Diagnostic Procedure Instructions provides an overview of each
diagnostic category.
DTC Descriptors
DTC B0173 02
Upper Left Duct Air Temperature Sensor Circuit Short to Ground
DTC B0173 05
Upper Left Duct Air Temperature Sensor Circuit High Voltage/Open
DTC B0178 02
Lower Left Duct Air Temperature Sensor Circuit Short to Ground
DTC B0178 05
Lower Left Duct Air Temperature Sensor Circuit High Voltage/Open
DTC B0509 02
Upper Right Duct Air Temperature Sensor Circuit Short to Ground
DTC B0509 05
Upper Right Duct Air Temperature Sensor Circuit High Voltage/Open
DTC B0514 02
Lower Right Duct Air Temperature Sensor Circuit Short to Ground
DTC B0514 05
Lower Right Duct Air Temperature Sensor Circuit High Voltage/Open
DTC B3933 02
Air Conditioning Evaporator Temperature Sensor Circuit Short to Ground
DTC B3933 05
Air Conditioning Evaporator Temperature Sensor Circuit High Voltage/Open
Diagnostic Fault Information

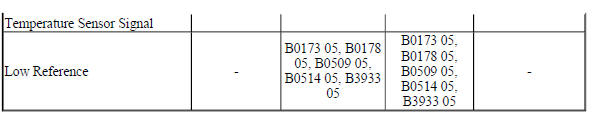

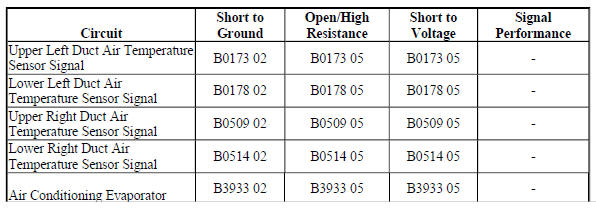

![Diagnostic Fault Information](images/manuals/4484/index413(11).jpg)
![Diagnostic Fault Information](images/manuals/4484/index414(11).jpg)
Circuit/System Description
The air temperature sensors are a 2-wire negative temperature coefficient
thermistor. The vehicle uses the
following air temperature sensors:
- Air temperature sensor - left upper
- Air temperature sensor - left lower
- Air temperature sensor - right upper
- Air temperature sensor - right lower
- A/C evaporator temperature sensor
This sensor operates using signal and low reference circuits. As the air
temperature surrounding the sensor
increases, the sensor resistance decreases. The sensor sends a signal voltage
between 0-5 V. If the HVAC
control module detects a malfunctioning sensor the software uses a default air
temperature value. The default
action ensures that the HVAC system can adjust the inside air temperature near
the desired temperature until the
condition is corrected.
Conditions for Running the DTC
- Ignition ON.
- The HVAC control module is ON.
Conditions for Setting the DTC
The HVAC control module detects the sensor signal out of range. The signal
voltage is less than 0.1 V or
greater than 4.9 V for more than 50 ms.
Action Taken When the DTC Sets
The system operates using a default value.
Conditions for Clearing the DTC
The sensor signal is within specified range between 0.1-4.9 V.
Reference Information
Schematic Reference
HVAC Schematics (Encore)
Connector End View Reference
WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS -
INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT
CONNECTOR END VIEWS - INDEX - TRAX
Description and Operation
Automatic HVAC Description and Operation
Electrical Information Reference
- Circuit Testing
- Connector Repairs
- Testing for Intermittent Conditions and Poor Connections
- Wiring Repairs
Scan Tool Reference
Control Module References for scan tool information
Circuit/System Verification
- Ignition ON.
- Verify DTC B3933 is not set.
If DTC B3933 is set
Refer to Circuit/System Testing - Without Scan Tool Support.
If DTC B3933 is not set
- Verify the appropriate temperature sensor has a parameter displayed in
HVAC scan tool information.
If there is no scan tool parameter
Refer to Circuit/System Testing - Without Scan Tool Support.
If there is a scan tool parameter
- Refer to Circuit/System Testing - With Scan Tool Support
Circuit/System Testing
With Scan Tool Support
- Ignition OFF and all vehicle systems OFF, disconnect the harness
connector at the appropriate
temperature sensor. It may take up to 10 min for all vehicle systems to
power down.
NOTE: The scan tool must be disconnected from the vehicle
before performing
the next test.
- Test for less than 10 ohms between the low reference circuit terminal B
and ground.
If 10 ohms or greater
- Ignition OFF, disconnect the harness connectors at the K33 HVAC Control
Module.
- Test for less than 2 ohms in the low reference circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K33 HVAC Control Module.
If less than 10 ohms
- Ignition ON.
- Verify the appropriate scan tool temperature sensor parameter is less
than -37ºC (-35ºF)
If greater than -37ºC (-35ºF)
- Ignition OFF, disconnect the harness connectors at the K33 HVAC Control
Module.
- Test for infinite resistance between the signal circuit terminal A and
ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance, replace the K33 HVAC Control Module.
If -37ºC (-35ºF) or less
- Install a 3 A fused jumper wire between the signal circuit terminal A
and the low reference circuit
terminal B.
- Verify the scan tool temperature sensor parameter is greater than 77ºC
(170ºF).
If less than 77ºC (170ºF)
- Ignition OFF, remove the jumper wire and disconnect the harness
connectors at the K33 HVAC
Control Module, ignition ON.
- Test for less than 1 V between the signal circuit and ground.
- If 1 V or greater, repair the short to voltage on the circuit.
- If less than 1 V
- Ignition OFF
- Test for less than 2 ohms in the signal circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K33 HVAC Control Module.
If 77ºC (170ºF) or greater
- Test or replace the temperature sensor.
Without Scan Tool Support
- Ignition OFF and all vehicle systems OFF, disconnect the harness
connector at the appropriate
temperature sensor. It may take up to 10 min for all vehicle systems to
power down.
NOTE: The scan tool must be disconnected from the vehicle before
performing
the next test
- Test for less than 10 ohms between the low reference circuit terminal B
and ground.
If 10 ohms or greater
- Ignition OFF, disconnect the harness connectors at the K33 HVAC Control
Module.
- Test for less than 2 ohms in the low reference circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K33 HVAC Control Module.
If less than 10 ohms
- Test for 4.8-5.2 V between the signal circuit terminal A and ground.
If less than 4.8 V
- Ignition OFF, disconnect the harness connectors at the K33 HVAC Control
Module.
- Test for infinite resistance between the signal circuit and ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance
- Test for less than 2 ohms in the signal circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K33 HVAC Control Module.
If greater than 5.2 V
- Ignition OFF, disconnect the harness connectors at the K33 HVAC Control
Module, ignition ON.
- Test for less than 1 V between the signal circuit and ground.
- If 1 V or greater, repair the short to voltage on the circuit.
- If less than 1 V, replace the K33 HVAC Control Module.
If between 4.8-5.2 V
- Test or replace the temperature sensor.
- Operate the vehicle within the Conditions for Running the DTC. You may
also operate the vehicle within
the conditions that you observed from the Freeze Frame/Failure Records data.
- Verify the DTC does not set.
If the DTC sets
Replace the K33 HVAC Control Module.
If the DTC does not set
- All OK
Repair Instructions
Perform the Diagnostic Repair Verification after completing the repair
- HVAC Component Replacement Reference
- Control Module References for HVAC control module replacement,
programming and setup
READ NEXT:
Diagnostic Instructions
Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
Review Strategy Based Diagnosis for an overview of the diagnostic
approach.
Diag
Diagnostic Instructions
Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
Review Strategy Based Diagnosis for an overview of the diagnostic
approach.
Diag
Diagnostic Instructions
Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
Review Strategy Based Diagnosis for an overview of the diagnostic
approach.
Diag
SEE MORE:
General Information with Touchscreen
Vehicles with a Hands-Free Phone
system can use a Bluetooth-capable
cell phone with a hands-free profile
to make and receive phone calls.
The infotainment system and voice
control are used to operate the
system. Not all phones support all
functions and not all
Diagnostic Instructions
Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
Review Strategy Based Diagnosis for an overview of the diagnostic
approach.
Diagnostic Procedure Instructions provides an overview of each
diagnostic category.
DTC Descriptors
D
