Chevrolet Trax: DTC B0072 OR B0073: Seat belt switch

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category

DTC Descriptors

DTC B0072

Driver Seat Belt Switch Circuit

DTC B0073

Passenger Seat Belt Switch Circuit

For symptom byte information refer to Symptom Byte List .

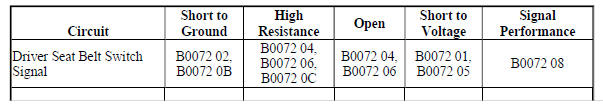

Diagnostic Fault Information

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

The inflatable restraint seat belt buckle switch is within the seat belt buckle and provides an input to the inflatable restraint sensing and diagnostic module (SDM). The inflatable restraint sensing and diagnostic module supplies a low reference circuit and a seat belt switch signal circuit to determine a buckled or unbuckled condition. The inflatable restraint sensing and diagnostic module monitors the seat belt switch circuits and if a fault is detected a DTC will be set.

Conditions for Running the DTC

Ignition voltage is between 9-16 V.

Conditions for Setting the DTC

B0072 01 or B0073 01

The seat belt switch circuit is shorted to voltage.

B0072 02 or B0073 02

The seat belt switch circuit is shorted to ground.

B0072 04 or B0073 03

The seat belt switch circuit is open.

B0072 05 or B0073 05

The seat belt switch circuit is shorted to voltage or open.

B0072 06 or B0073 06

The seat belt switch circuit is shorted to ground or open.

B0072 08 or B0073 08

The seat belt switch signal is invalid.

B0072 0B or B0073 0B

The seat belt switch signal is above threshold.

B0072 0C or B0073 0C

The seat belt switch signal is below threshold

Action Taken When the DTC Sets

The inflatable restraint sensing and diagnostic module will store a DTC and illuminate the air bag indicator in the instrument cluster.

Conditions for Clearing the DTC

The condition for setting the DTC no longer exists.

Reference Information

Schematic Reference

Seat Belt Schematics (Encore), Seat Belt Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Supplemental Inflatable Restraint System Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs
  • Connector Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

  1. Ignition ON.
  2. Verify the appropriate scan tool Seat Belt Status parameter changes between Buckled and Unbuckled when the seat belt is buckled and unbuckled.

If the parameter does not change

Refer to Circuit/System Testing.

If the parameter changes

  1. All OK.

Circuit/System Testing

NOTE: When removing connectors inspect for damage or corrosion. Damage or corrosion in the following requires repair or replacement of the affected component/connector.

  • B153D Seat Belt Buckle-Driver
  • B153P Seat Belt Buckle-Passenger
  • K36 Inflatable Restraint Sensing and Diagnostic Module
  1. Ignition OFF. Scan tool disconnected. Disconnect the harness connector at the appropriate B153 Seat Belt Buckle. It may take up to 2 min for all vehicle systems to power down.
  2. Test for less than 5 ohms between the low reference circuit terminal 2 and ground.

If 5 ohms or greater

  1. Ignition OFF, disconnect the harness connector at the K36 Inflatable Restraint Sensing and Diagnostic Module.
  2. Test for less than 2 ohms in the low reference circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K36 Inflatable Restraint Sensing and Diagnostic Module.

If less than 5 ohms

  1. Ignition ON.
  2. Verify the appropriate scan tool Seat Belt Status parameter is Buckled.

If not Buckled

  1. Ignition OFF, disconnect the harness connector at the K36 Inflatable Restraint Sensing and Diagnostic Module.
  2. Test for infinite resistance between the signal circuit terminal 1 and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the K36 Inflatable Restraint Sensing and Diagnostic Module.

If Buckled

  1. Install a 3 A fused jumper wire between the signal circuit terminal 1 and the low reference circuit terminal 2.
  2. Verify the appropriate scan tool Seat Belt Status parameter is Unbuckled.

If not Unbuckled

  1. Ignition OFF, disconnect the harness connector at the K36 Inflatable Restraint Sensing and Diagnostic Module, ignition ON.
  2. Test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K36 Inflatable Restraint Sensing and Diagnostic Module.

If Unbuckled

  1. Test or replace the B153 Seat Belt Buckle.

Component Testing

  1. Ignition OFF. Scan tool disconnected. Disconnect the harness connector at the appropriate B153 Seat Belt Buckle. It may take up to 2 min for all vehicle systems to power down.
  2. Test for infinite resistance between the signal terminal 1 and the low reference terminal 2.

If less than infinite resistance

Replace the B153 Seat Belt Buckle.

If infinite resistance

  1. Insert the seat belt into the buckle.
  2. Test for less than 5 ohms between the signal terminal 1 and the low reference terminal 2.

If 5 ohms or greater

Replace the B153 Seat Belt Buckle.

If less than 5 ohms

  1. All OK.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Front Seat Belt Buckle Replacement
  • Control Module References for inflatable restraint sensing and diagnostic module replacement, programming, and setup.
