Chevrolet Trax: Diagnostic information and procedures
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS

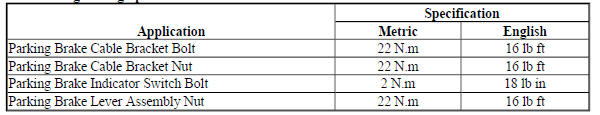

Fastener Tightening Specifications
![Fastener Tightening Specifications](images/manuals/4484/index436(4).jpg)
DIAGNOSTIC INFORMATION AND PROCEDURES
SYMPTOMS - PARK BRAKE
NOTE: Review the system operation in order to familiarize yourself
with the system
functions. Refer to Park Brake System Description and Operation
Visual/Physical Inspection
- Inspect for aftermarket devices which could affect the operation of the
park brake system.
- Inspect the easily accessible or visible system components for obvious
damage or conditions which could
cause the symptom.
Symptom List
Refer to a symptom diagnostic procedure from the following list in order to
diagnose the symptom:
- Park Brake Will Not Hold or Release
- Park Brake System Diagnosis (Drum Brake), Park Brake System Diagnosis (Disc
Brake)
PARK BRAKE WILL NOT HOLD OR RELEASE

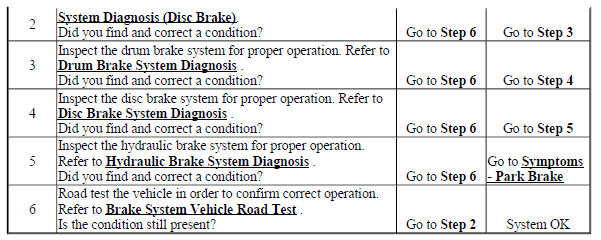

Park Brake Will Not Hold or Release
![Park Brake Will Not Hold or Release](images/manuals/4484/index437(4).jpg)
![Park Brake Will Not Hold or Release](images/manuals/4484/index438(4).jpg)
PARK BRAKE SYSTEM DIAGNOSIS (DRUM BRAKE)

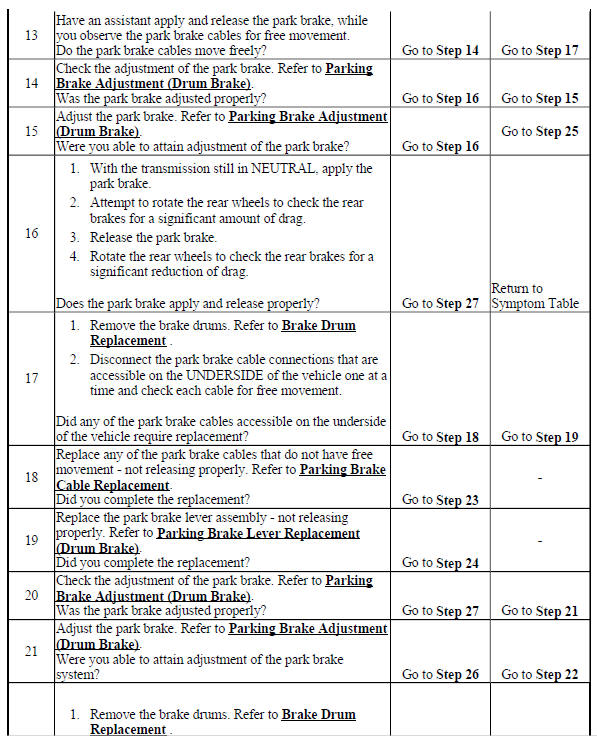

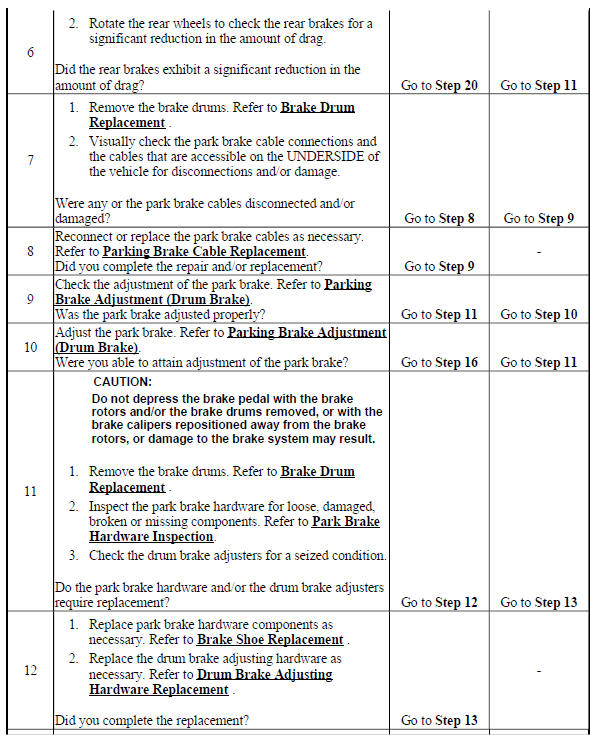

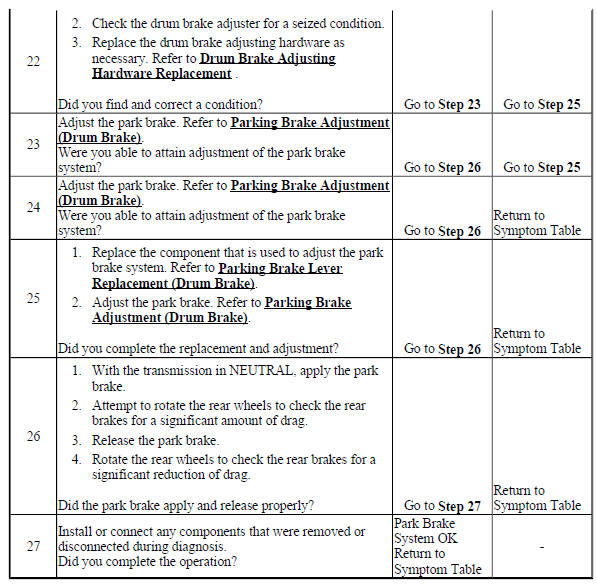

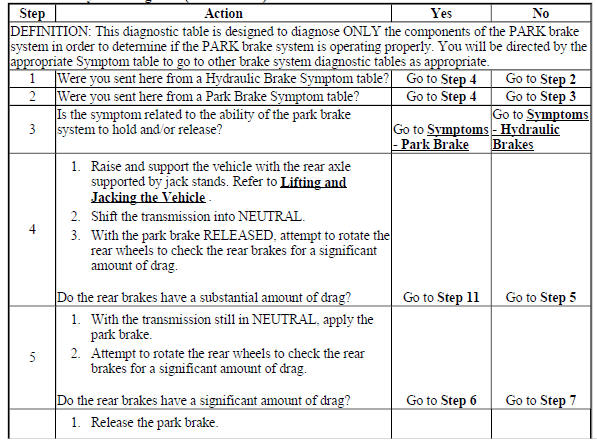

Park Brake System Diagnosis (Drum Brake)
![Park Brake System Diagnosis (Drum Brake)](images/manuals/4484/index439(4).jpg)
![Park Brake System Diagnosis (Drum Brake)](images/manuals/4484/index440(4).jpg)
![Park Brake System Diagnosis (Drum Brake)](images/manuals/4484/index441(4).jpg)
![Park Brake System Diagnosis (Drum Brake)](images/manuals/4484/index442(3).jpg)
PARK BRAKE SYSTEM DIAGNOSIS (DISC BRAKE)

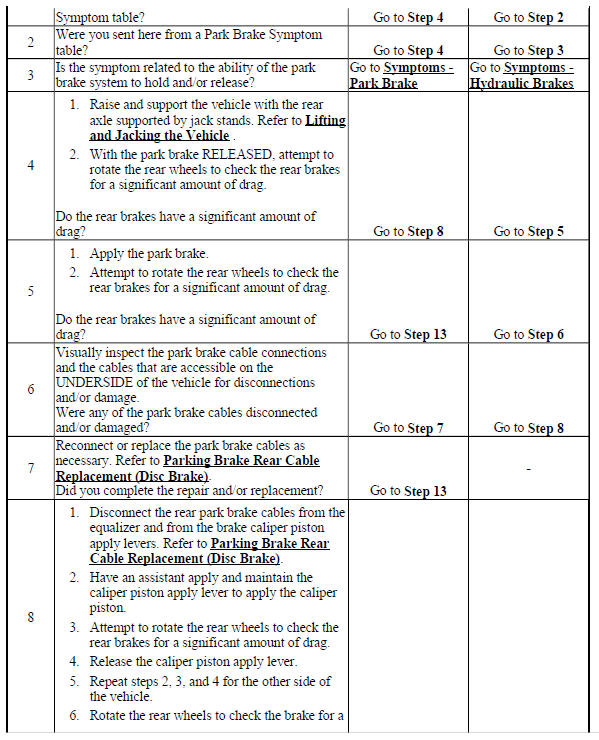

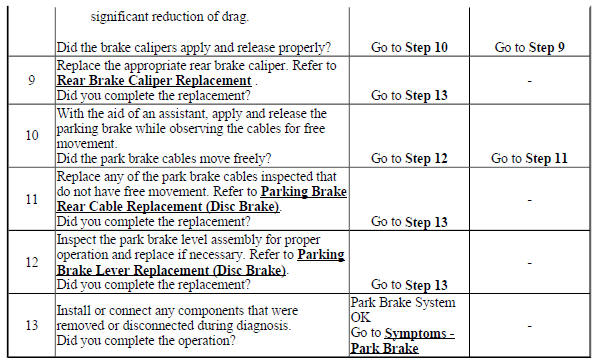

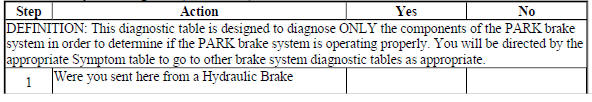

Park Brake System Diagnosis (Disc Brake)
![Park Brake System Diagnosis (Disc Brake)](images/manuals/4484/index443(3).jpg)
![Park Brake System Diagnosis (Disc Brake)](images/manuals/4484/index444(3).jpg)
![Park Brake System Diagnosis (Disc Brake)](images/manuals/4484/index445(3).jpg)
PARK BRAKE HARDWARE INSPECTION
![Fig. 1: Park Brake Lever And Pivot Pin](images/manuals/4484/index446(3).gif)

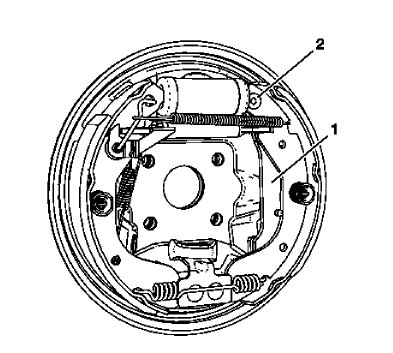

Fig. 1: Park Brake Lever And Pivot Pin
WARNING: Refer to Brake Dust Warning .
- Visually inspect the park brake lever (1) and the lever pivot pin (2)
for the following conditions
- The lever being bent or broken at any point - particularly at the cable
attachment
- A seized or binding condition at lever pivot pin
- A broken lever pivot pin
NOTE: The brake shoe and park brake lever are not serviced
separately. If either
component requires replacement, they must be replaced as an assembly.
- If any of the conditions listed were found, the park brake lever and
brake shoe assembly requires
replacement.
