Chevrolet Trax: Cooling System
The cooling system allows the
engine to maintain the correct
working temperature.

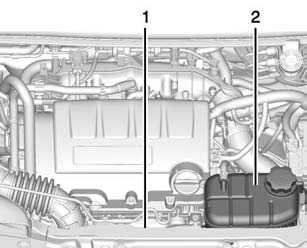

![1.4L L4 Engine](images/manuals/4181/index.14(7).gif)
1.4L L4 Engine
- Engine Cooling Fan (Out
of View)
- Engine Coolant Surge Tank and
Pressure Cap

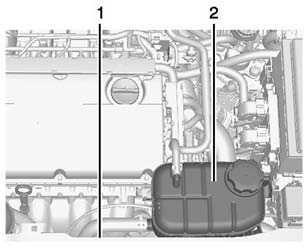

![1.8L L4 Engine](images/manuals/4181/index.15(7).gif)
1.8L L4 Engine
- Engine Cooling Fan (Out
of View)
- Engine Coolant Surge Tank and
Pressure Cap
Warning
An electric engine cooling fan
under the hood can start up even
when the engine is not running
and can cause injury. Keep
hands, clothing, and tools away
from any underhood electric fan.
Warning
Heater and radiator hoses, and
other engine parts, can be very
hot. Do not touch them. If you do,
you can be burned.
Do not run the engine if there is a
leak. If you run the engine, it
could lose all coolant. That could
cause an engine fire, and you
could be burned. Get any leak
fixed before you drive the vehicle.
Caution
Using coolant other than
DEX-COOL can cause
premature engine, heater core,
or radiator corrosion. In addition,
the engine coolant could require
changing sooner. Any repairs
would not be covered by the vehicle warranty. Always use
DEX-COOL (silicate-free) coolant
in the vehicle.
READ NEXT:
The cooling system in the vehicle is
filled with DEX-COOL engine
coolant. This coolant is designed to
remain in the vehicle for 5 years or
240 000 km (150,000 mi), whichever
occurs first.
The followi
Caution
This vehicle has a specific
coolant fill procedure. Failure to
follow this procedure could cause
the engine to overheat and be
severely damaged.
If no problem is found, check to see
if coolant
The vehicle has an indicator to warn
of the engine overheating. See
Engine Coolant Temperature
Warning Light
If the decision is made not to lift the
hood when this warning appears,
get service help ri
