Chevrolet Trax: Component locator

Chevrolet Trax (2013-2022) Workshop Manual / Transmission / Manual Transmission - M20 M32 (MR5) / Component locator

MANUAL TRANSMISSION COMPONENT VIEWS

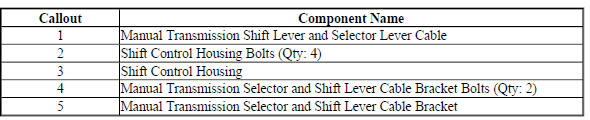

Shift Control and Shift Lever/Selector Lever Cable Components

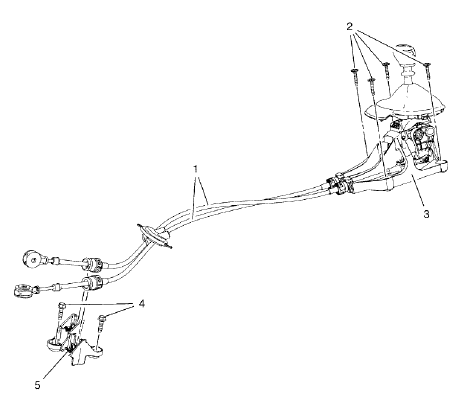

Fig. 3: Shift Control and Shift Lever/Selector Lever Cable Components
Fig. 3: Shift Control and Shift Lever/Selector Lever Cable Components

MANUAL TRANSMISSION COMPONENT VIEWS

Shift Shaft Components

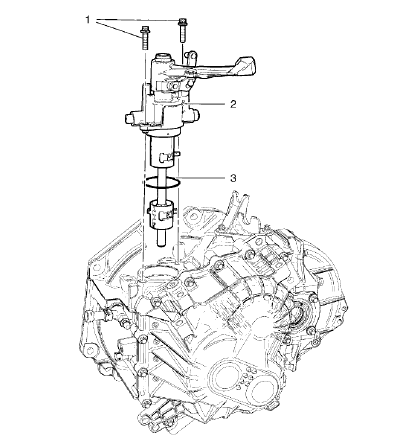

Fig. 4: Shift Shaft Components
Fig. 4: Shift Shaft Components

Shift Shaft Components

Clutch Housing Components - Right Hand View

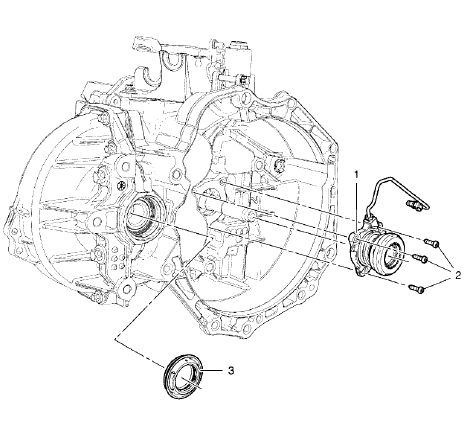

Fig. 5: Locating Clutch Housing Components - Right Side
Fig. 5: Locating Clutch Housing Components - Right Side

Clutch Housing Components - Right Hand View

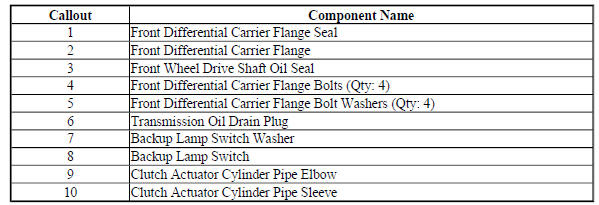

Clutch Housing Components- Left Hand View

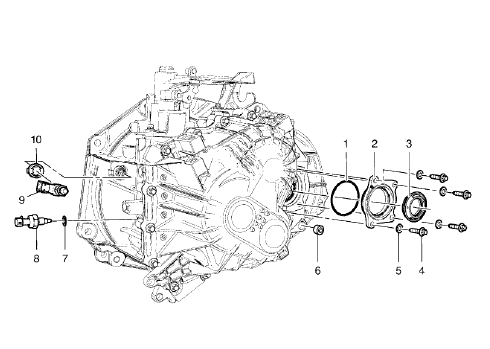

Fig. 6: Locating Clutch Housing Components - Left Side
Fig. 6: Locating Clutch Housing Components - Left Side

Clutch Housing Components- Left Hand View

Transmission Housing Components

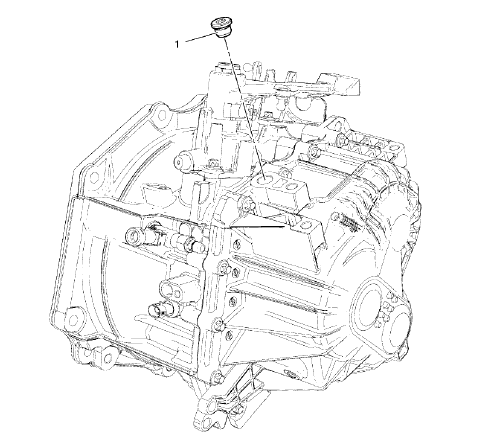

Fig. 7: Transmission Housing Components
Fig. 7: Transmission Housing Components

Transmission Housing Components

Transmission Shafts Overview

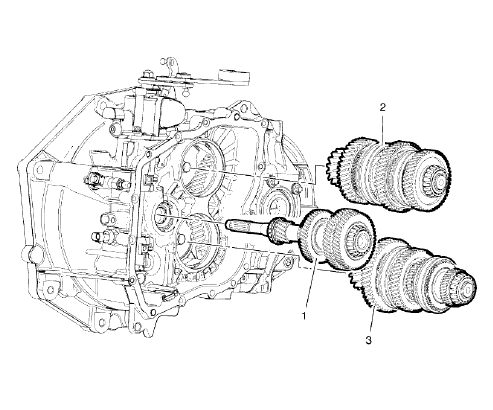

Fig. 8: Transmission Shafts
Fig. 8: Transmission Shafts

Transmission Shafts Overview

Input Shaft

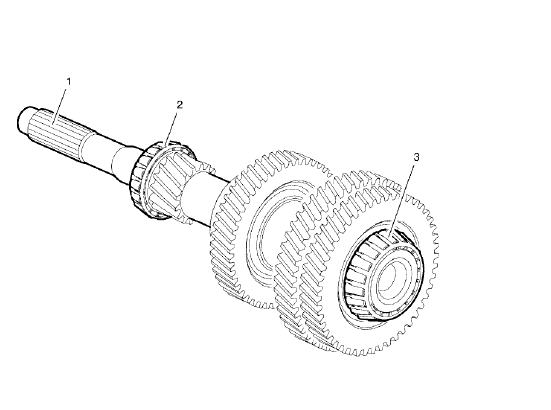

Fig. 9: Input Shaft
Fig. 9: Input Shaft

Input Shaft

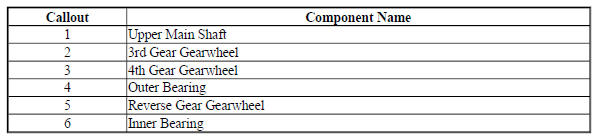

Upper Main Shaft

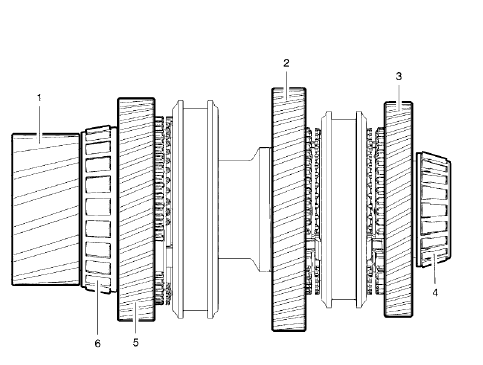

Fig. 10: Upper Main Shaft
Fig. 10: Upper Main Shaft

Upper Main Shaft

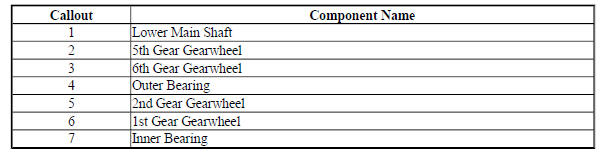

Lower Main Shaft

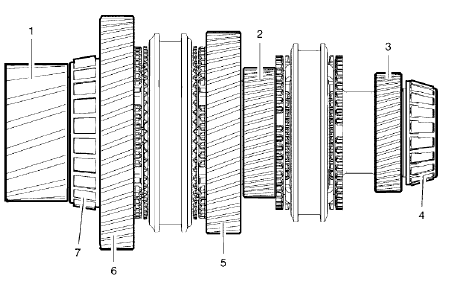

Fig. 11: Lower Main Shaft
Fig. 11: Lower Main Shaft

Lower Main Shaft

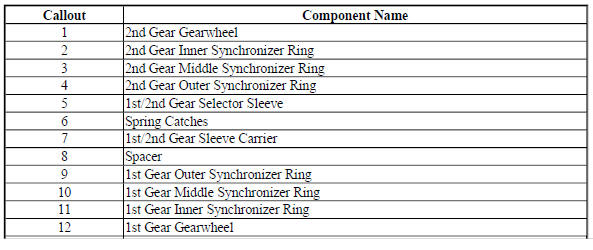

1st / 2nd Gear Synchronizer

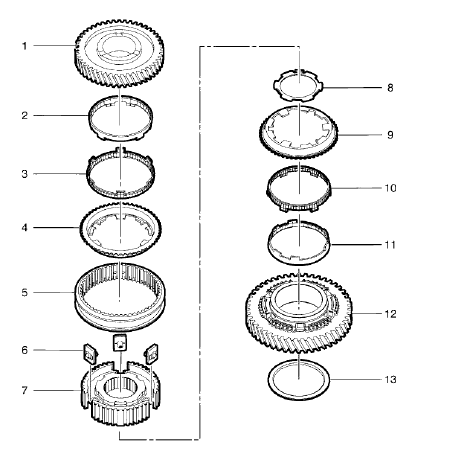

Fig. 12: 1st/2nd Gear Synchronizer
Fig. 12: 1st/2nd Gear Synchronizer

1st / 2nd Gear Synchronizer

1st / 2nd Gear Synchronizer

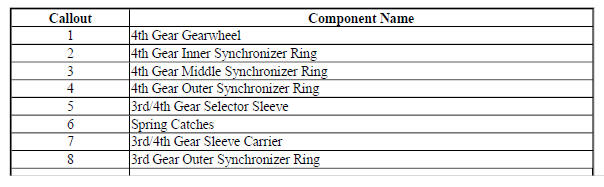

3rd/4th Gear Synchronizer

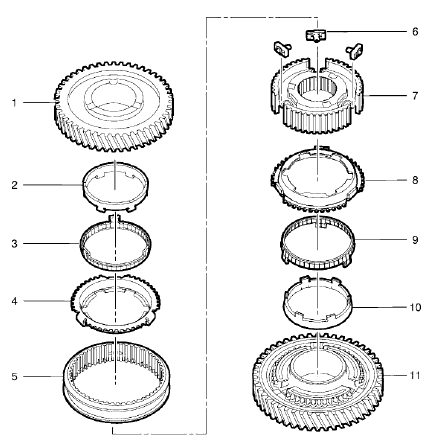

Fig. 13: 3rd/4th Gear Synchronizer
Fig. 13: 3rd/4th Gear Synchronizer

3rd/4th Gear Synchronizer

3rd/4th Gear Synchronizer

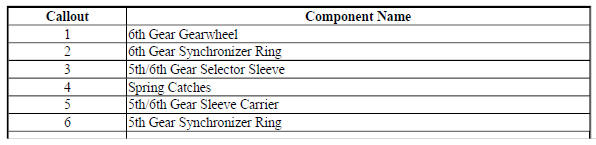

5th / 6th Gear Synchronizer

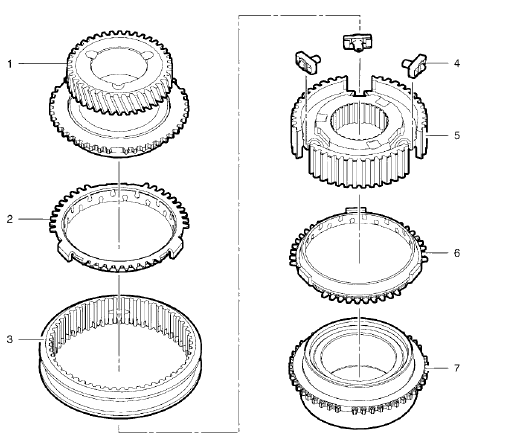

Fig. 14: 5th/6th Gear Synchronizer
Fig. 14: 5th/6th Gear Synchronizer

5th / 6th Gear Synchronizer

5th / 6th Gear Synchronizer

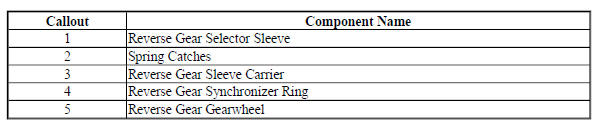

Reverse Gear Synchronizer

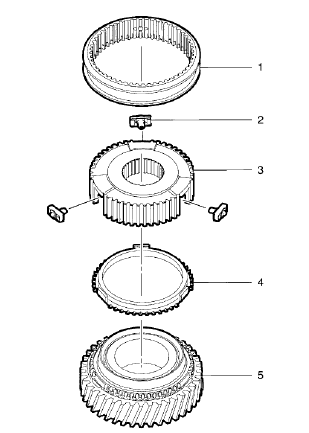

Fig. 15: Reverse Gear Synchronizer
Fig. 15: Reverse Gear Synchronizer

Reverse Gear Synchronizer
