Chevrolet Trax: Brake pressure modulator valve front brake pipe replacement (RIGHT)

Chevrolet Trax (2013-2022) Workshop Manual / Brakes / Hydraulic Brakes / Repair instructions / Brake pressure modulator valve front brake pipe replacement (RIGHT)

Removal Procedure

WARNING: Refer to Brake Dust Warning .

WARNING: Refer to Brake Fluid Irritant Warning .

CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution .

  1. Remove the battery. Refer to Battery Replacement

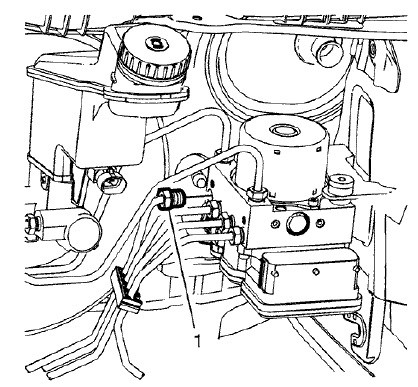

Fig. 81: Brake Pressure Modulator Valve (BPMV) Front Brake Pipe Fitting
Fig. 81: Brake Pressure Modulator Valve (BPMV) Front Brake Pipe Fitting

  1. Disconnect the brake pressure modulator valve (BPMV) front brake pipe fitting (1) from the BPMV.
  2. Plug the BPMV outlet port to prevent brake fluid loss and contamination.

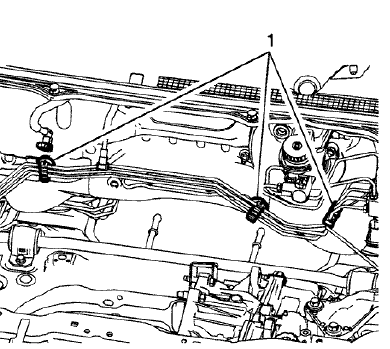

Fig. 82: Front Brake Pipe Retaining Clips
Fig. 82: Front Brake Pipe Retaining Clips

  1. Release the BPMV front brake pipe from the retaining clips (1).
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

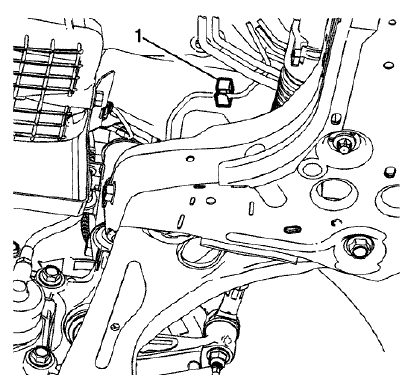

Fig. 83: BPMV Front Pipe Clip
Fig. 83: BPMV Front Pipe Clip

  1. Release the BPMV front brake pipe from the retaining clip (1).
  2. Remove the right front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation

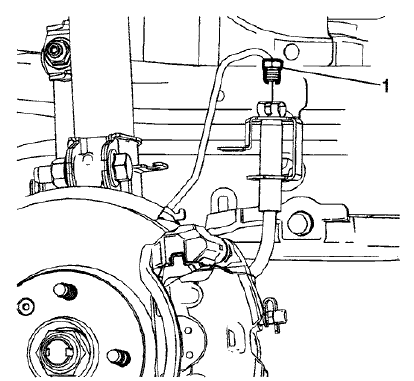

Fig. 84: Front Brake Pipe Fitting
Fig. 84: Front Brake Pipe Fitting

  1. Disconnect the BPMV front brake pipe fitting (1) from the right front brake hose.
  2. Remove the BPMV front brake pipe from the vehicle.

Installation Procedure

  1. Install the BPMV front brake pipe to the vehicle.
  2. Position, but do not secure, the BPMV front brake pipe to the retaining clips.

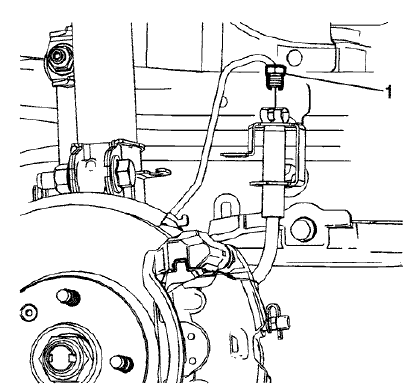

Fig. 85: Front Brake Pipe Fitting
Fig. 85: Front Brake Pipe Fitting

CAUTION: Refer to Fastener Caution .

  1. Install the BPMV front brake pipe fitting (1) to the right front brake hose and tighten the fitting to 18 N.m (13 lb ft).

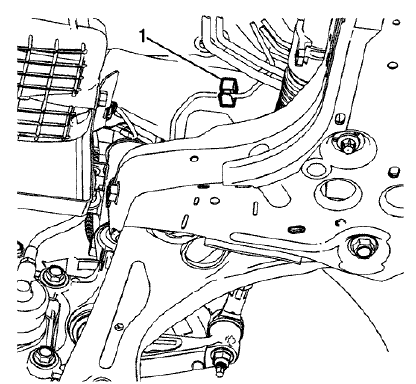

Fig. 86: BPMV Front Pipe Clip
Fig. 86: BPMV Front Pipe Clip

  1. Secure the BPMV front brake pipe to the retaining clip (1).
  2. Lower the vehicle to access the upper brake pipe retaining clips.

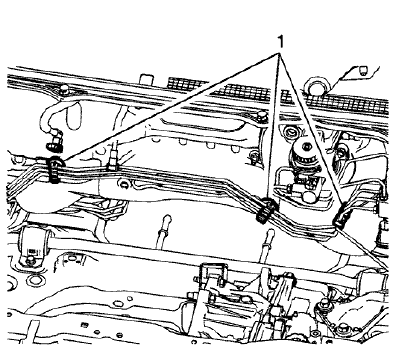

Fig. 87: Front Brake Pipe Retaining Clips
Fig. 87: Front Brake Pipe Retaining Clips

  1. Secure the BPMV front brake pipe to the retaining clips (1).

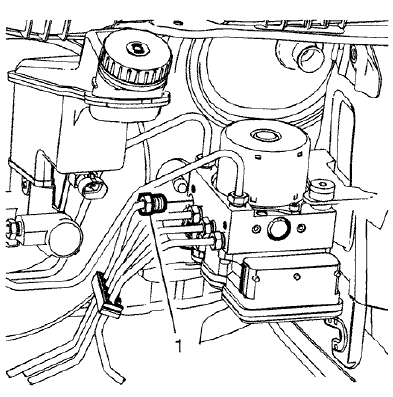

Fig. 88: Brake Pressure Modulator Valve (BPMV) Front Brake Pipe Fitting
Fig. 88: Brake Pressure Modulator Valve (BPMV) Front Brake Pipe Fitting

  1. Install the BPMV front brake pipe fitting (1) to the BPMV and tighten the fitting to 18 N.m (13 lb ft).
  2. Install the battery. Refer to Battery Replacement .
  3. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual), Hydraulic Brake System Bleeding (Pressure).
  4. Install the right front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
