Chevrolet Trax: Auxiliary audio input malfunction

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provide an overview of each diagnostic category.

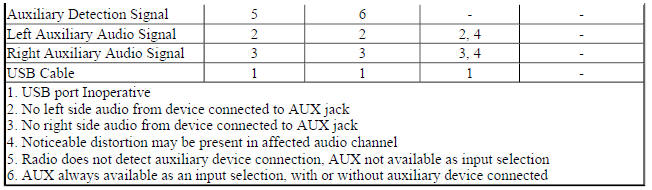

Diagnostic Fault Information

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

Auxiliary Audio Input Jack

The 3.5 mm (1/8 in.) auxiliary audio input jack is located in the console. All circuits from the auxiliary jack are connected directly to the radio. When a device is connected to the auxiliary jack an internal switch opens. The radio detects the device and switches to AUX as the audio source. Audio signals from the device are sent to the radio from the auxiliary input jack via the left, right, and common audio signal circuits.

USB Port

The vehicle may be equipped with a USB port in the console. This port allows USB connectivity to the infotainment system from portable media players or a USB storage device (memory stick/flash drive). When a device is connected to the USB port, the system detects the device and switches to USB as the audio source.

Once connected, the device can be controlled from the radio controls.

The USB port is connected to the radio via a standard USB cable. Mini type USB connectors are used to connect the cable at the USB port and at the radio or multimedia player interface module. Standard USB male to female connections are typically used for connecting USB cables together where an in-line connection is required. An in-line cable connection is typically found between the console and I/P harness.

Not all portable media player devices are compatible. Refer to the owner's manual for information on USB devices, control, and operation.

Diagnostic Aids

Auxiliary Audio Input Jack

  • When a device is first connected to the 3.5 mm (1/8 in.) input jack the infotainment system automatically switches to that device. If an auxiliary device has already been connected, press the AUX or CD/AUX button to select the device.
  • If the system detects the device, but the audio is not heard or is not clear, attempt to connect the device using a different cable; cables can deteriorate over time or become damaged.
  • Playback of an audio device that is connected to the 3.5 mm jack can only be controlled using the controls on the device.
  • The volume control on the device may need to be adjusted to ensure sufficient playback volume through the infotainment system.

USB

  • When a device is first connected to the USB port, the infotainment system automatically switches to that device. If an auxiliary device has already been connected, press the AUX or CD/AUX button to select the device.
  • A low battery condition in a portable media player may not allow the device to connect to the system, or can create communication issues with the device. Verify the device battery state of charge and re-charge or replace as needed.
  • Connect the device directly to the USB port if possible. Only use a cable if it is required to connect the device. The use of extension cables can cause communication issues.
  • If a cable is required for connection, attempt to connect the device using a different cable; cables can deteriorate over time or become damaged.
  • Attempt audio playback from multiple USB devices when diagnosing USB concerns. Device compatibility can vary based on vehicle equipment. If the infotainment system is capable of operating any USB type device, the cause of the concern is not with the vehicle system. The inoperative device(s) may be incompatible or contain no recognized media types.
  • If a 'Device Not Supported' or similar type error message is displayed, this indicates the system has connected to the device but cannot communicate with it properly. This does not indicate an issue with the vehicle system. The device may be incompatible, may require a 'reset', or may require an update to its software/firmware.
  • If a 'No Supported Data Found' or similar type error message is displayed, this indicates the system has connected to the device and is communicating, but cannot find any compatible files/data. This does not indicate an issue with the vehicle system. Verify the device contains compatible media/file types.
  • Poor connections or damaged USB cables can cause intermittent or no operation of USB devices. Inspect connectors, terminals, and cables for damage and replace components as necessary. Ensure all USB inline connections and connections at components are fully seated and connector position retainers/locks are secure.

Reference Information

Schematic Reference

Radio/Navigation System Schematics (Encore), Radio/Navigation System Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Radio/Audio System Description and Operation (with Monochrome Display), Radio/Audio System Description and Operation (with Color Display)

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Special Tools

  • EL-50334-20 Multi-Media Interface Tester (MIT)
  • EL-50334-50 USB Cable and Adapter Kit

For equivalent regional tools, refer to Special Tools, Special Tools (MIT tool instructions)

Circuit/System Verification

Auxiliary Audio Input Jack

  1. Verify no DTCs are present.

If any DTCs are present

Refer to Diagnostic Trouble Code (DTC) List - Vehicle .

If no DTCs are present

  1. Ignition ON, radio ON.
  2. Verify the infotainment system switches to AUX as the audio source with the EL-50334-20 Multi-Media Interface Tester (MIT) connected to the auxiliary audio input jack.

If the infotainment system does not switch to AUX as the audio source

Refer to Circuit/System Testing - Auxiliary Input Jack.

If the infotainment system switches to AUX as the audio source

  1. Verify the audio from the EL-50334-20 Multi-Media Interface Tester (MIT) is heard through the vehicle infotainment system while operating the test tool to begin audio playback.

If audio is not heard from the test tool.

Refer to Circuit/System Testing - Auxiliary Input Jack.

If audio is heard from the test tool.

  1. All OK

USB Port

  1. Verify no DTCs are present.

If any DTCs are present

Refer to Diagnostic Trouble Code (DTC) List - Vehicle

If no DTCs are present

  1. Ignition ON, radio ON.
  2. Verify the infotainment system switches to USB as the audio source with the EL-50334-20 Multi-Media Interface Tester (MIT) connected to the USB port.

If the infotainment system does not switch to USB as the audio source

Refer to Circuit/System Testing - USB Port.

If the infotainment system switches to USB as the audio source

  1. Verify the audio from the EL-50334-20 Multi-Media Interface Tester (MIT) is heard through the vehicle infotainment system while operating the system to play audio from the test tool.
  • If audio is not heard from the test tool.

Refer to Circuit/System Testing - USB Port.

  • If audio is heard from the device
  1. All OK.

Circuit/System Testing

Auxiliary Audio Input Jack

  1. Ignition OFF, disconnect the X1 harness connector at the X83 Auxiliary Audio Input. Ignition ON, radio ON.
  2. Test for 2.5-3.5 V between the signal circuit terminal 5 and ground.

If less than 2.5 V

  1. Ignition OFF, disconnect the X1 harness connector at the A11 Radio.
  2. Test for infinite resistance between the signal circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the signal circuit end to end
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the A11 Radio.

If greater than 3.5 V

  1. Ignition OFF, disconnect the X1 harness connector at the A11 Radio, ignition ON.
  2. Test for less than 1 V between the detection circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the A11 Radio.

If between 2.5-3.5 V

  1. Test for less than 1 V between the signal circuits listed below and ground:
  • Left auxiliary audio signal circuit terminal 1
  • Right auxiliary audio signal circuit terminal 2
  • Auxiliary audio common signal circuit terminal 3

If 1 V or greater

  1. Ignition OFF, disconnect the X1 harness connector at the A11 Radio. Ignition ON.
  2. Test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the A11 Radio.

If less than 1 V

  1. Ignition OFF, disconnect the X1 harness connector at the A11 Radio.
  2. Test for infinite resistance between the signal circuits listed below and ground:
  • Auxiliary audio common signal circuit terminal 23
  • Left auxiliary audio signal circuit terminal 24
  • Right auxiliary audio signal circuit terminal 10
  • If less than infinite resistance

Repair the short to ground on the circuit.

If infinite resistance

  1. Test for less than 5 ohms between the signal circuit terminals listed below:
  • A11 Radio terminal 24 X1 and the X83 Auxiliary Audio Input terminal 1 X1
  • A11 Radio terminal 10 X1 and the X83 Auxiliary Audio Input terminal 2 X1
  • A11 Radio terminal 23 X1 and the X83 Auxiliary Audio Input terminal 3 X1
  • If 5 ohms greater

Repair the open/high resistance in the circuit.

If less than 5 ohms

  1. Replace the X83 Auxiliary Audio Input. Connect all harness connectors.
  2. Connect and operate the EL-50334-20 Multi-Media Interface Tester (MIT).
  3. Verify the audio from the test tool is heard through the vehicle infotainment system.

If audio is not heard from the test tool

Replace the A11 Radio.

If audio is heard from the test tool

  1. All OK.

USB Port

  1. Ignition OFF, disconnect the USB cable connection at the A11 Radio.

NOTE: USB cables and adapters for the following tests are found in the EL-50334- 50 USB Cable and Adapter Kit.

  1. Connect the EL-50334-1 Type A male to Mini A male USB Cable to the A11 Radio. Connect the EL- 50334-3 Type A female to Type A female adapter to the EL-50334-1 Cable.
  2. Ignition ON, radio ON, connect the EL-50334-20 Multi-Media Interface Tester (MIT) to the EL-50334-3 adapter.
  3. Verify the infotainment system switches to USB as the audio source.

If the infotainment system does not switch to USB as the audio source

Replace the A11 Radio

If the infotainment system switches to USB as the audio source

  1. Ignition OFF, connect the vehicle USB cable to the A11 Radio. Disconnect the I/P to floor console inline USB cable connector.

NOTE: The EL-50334-3 or EL-50334-4 adapter may be required for the following test.

  1. Ignition ON, radio ON, connect the EL-50334-20 Multi-Media Interface Tester (MIT) to the I/P side of the inline USB cable connector.
  2. Verify the infotainment system switches to USB as the audio source.

If the infotainment system does not switch to USB as the audio source

Replace the I/P USB cable assembly.

If the infotainment system switches to USB as the audio source

  1. Ignition OFF, connect the I/P to floor console inline USB cable connector.
  2. Disconnect the USB cable at the X83 Auxiliary Audio Input. Connect the EL-50334-4 Type A female to Mini B female adapter to the USB cable.
  3. Ignition ON, radio ON, connect the EL-50334-20 Multi-Media Interface Tester (MIT) to the EL-50334-4 adapter.
  4. Verify the infotainment system switches to USB as the audio source.

If the infotainment system does not switch to USB as the audio source

Replace the console USB cable assembly.

If the infotainment system switches to USB as the audio source

  1. Test or replace the X83 Auxiliary Audio Input.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Audio Disc Player and USB Receptacle Replacement (Encore), Audio Disc Player and USB Receptacle Replacement (Trax)
  • Control Module References for radio replacement, programming, and setup.
