Chevrolet Trax: Air conditioning (a/c) system performance test
This test measures the operating efficiency of the A/C system under the
following conditions:
- The current ambient air temperature
- The current relative humidity
- The high side pressure of the A/C system
- The low side pressure of the A/C system
- The temperature of the air being discharged into the passenger
compartment
Test Description
The numbers below refer to the step numbers on the diagnostic table.
1
This step determines if the A/C system has at least the minimum refrigerant
charge required to operate the
system without damage.
2
This step measures the performance of the A/C system.
3
This step is to allow for vehicle variations as well as high ambient
temperatures.

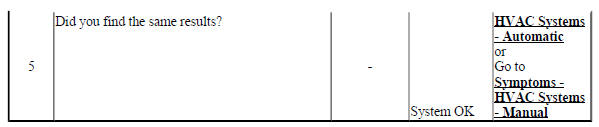

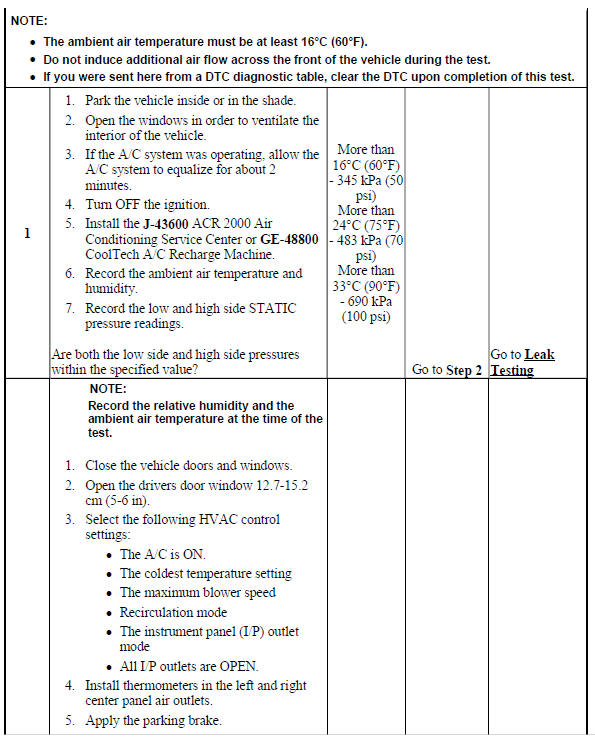

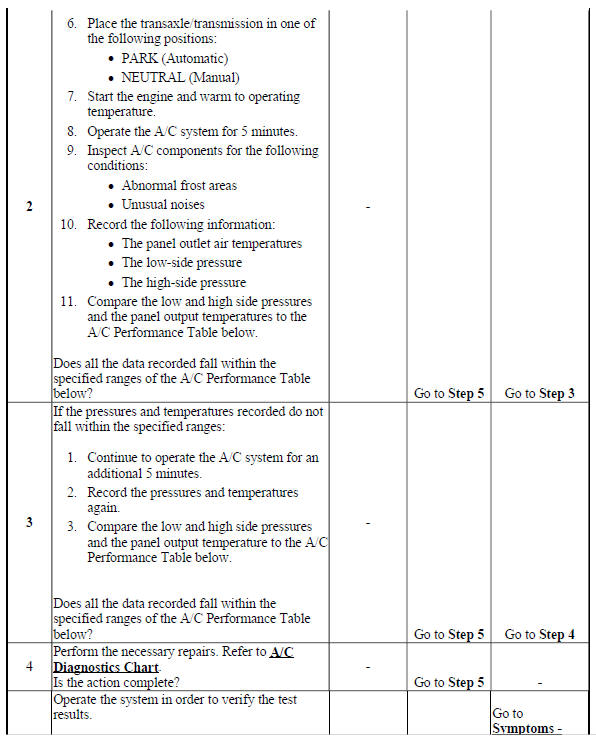

Air Conditioning (A/C) System Performance Test
![Air Conditioning (A/C) System Performance Test](images/manuals/4484/index45(9).jpg)
![Air Conditioning (A/C) System Performance Test](images/manuals/4484/index46(9).jpg)
![Air Conditioning (A/C) System Performance Test](images/manuals/4484/index47(9).jpg)
![Air Conditioning (A/C) System Performance Test](images/manuals/4484/index48(8).jpg)

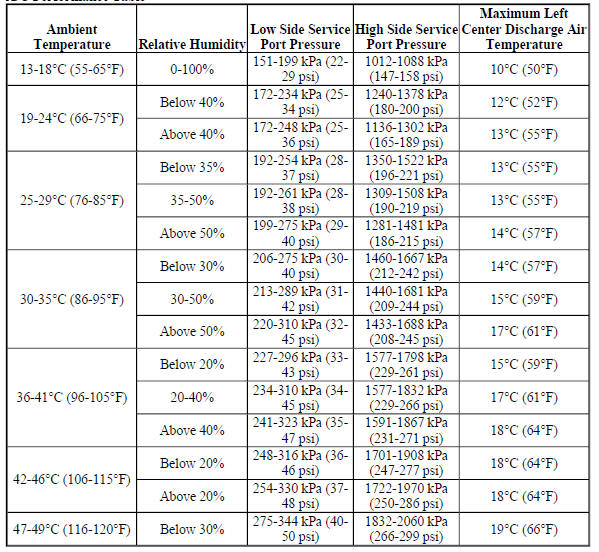

A/C Performance Table
![A/C Performance Table](images/manuals/4484/index49(8).jpg)

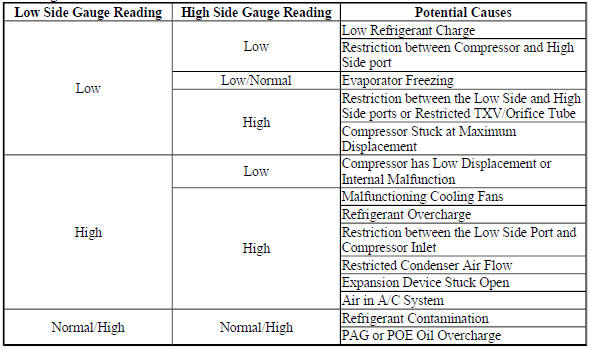

A/C DIAGNOSTICS CHART
![A/C Diagnostics Chart](images/manuals/4484/index410(9).jpg)

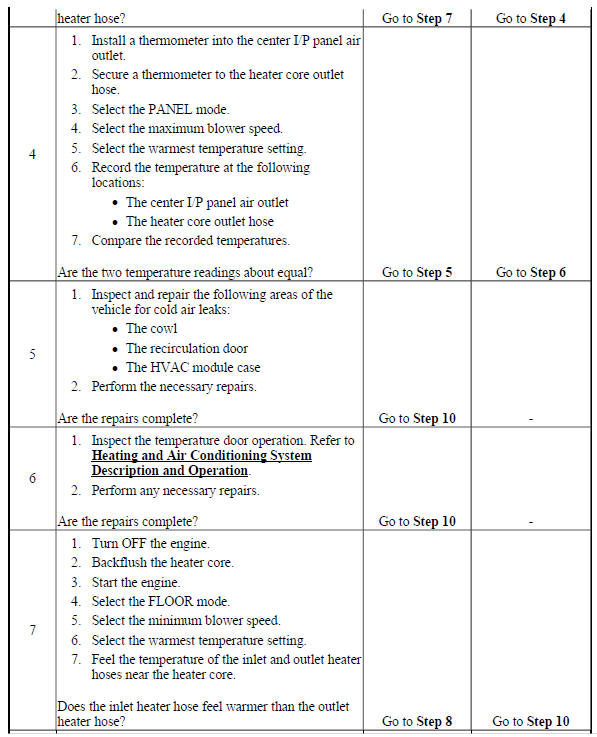

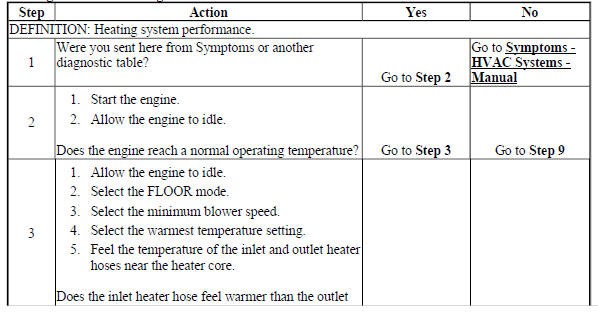

HEATING PERFORMANCE DIAGNOSTIC

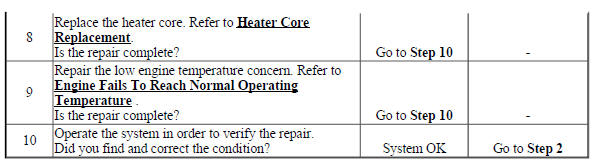

Heating Performance Diagnostic
![Heating Performance Diagnostic](images/manuals/4484/index411(9).jpg)
![Heating Performance Diagnostic](images/manuals/4484/index412(9).jpg)
![Heating Performance Diagnostic](images/manuals/4484/index413(9).jpg)

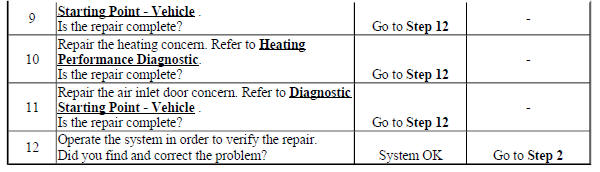

DEFROSTING INSUFFICIENT

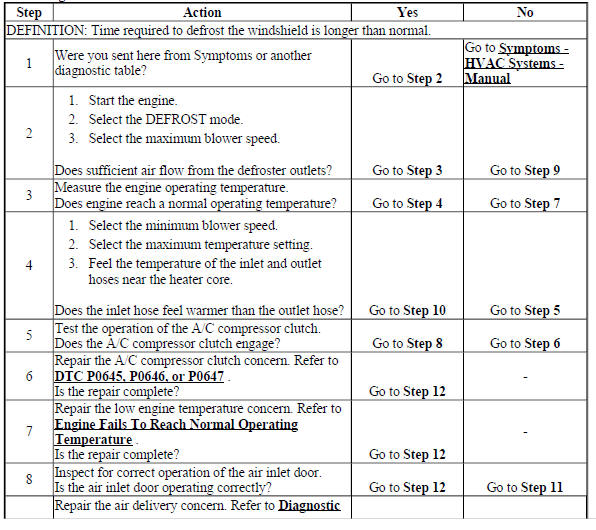

Defrosting Insufficient
![Defrosting Insufficient](images/manuals/4484/index414(9).jpg)
![Defrosting Insufficient](images/manuals/4484/index415(8).jpg)

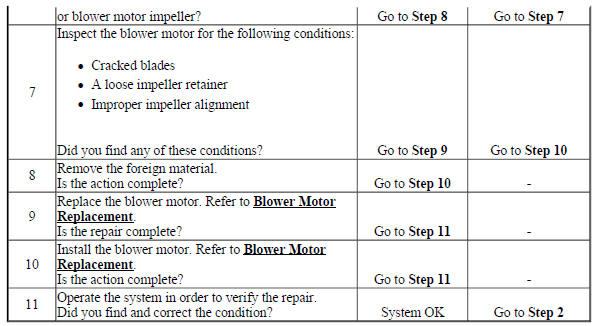

NOISE DIAGNOSIS - BLOWER MOTOR

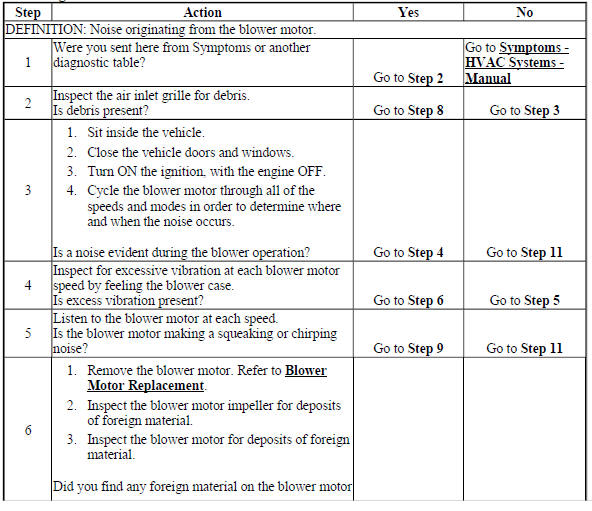

Noise Diagnosis - Blower Motor
![Noise Diagnosis - Blower Motor](images/manuals/4484/index416(8).jpg)
![Noise Diagnosis - Blower Motor](images/manuals/4484/index417(8).jpg)

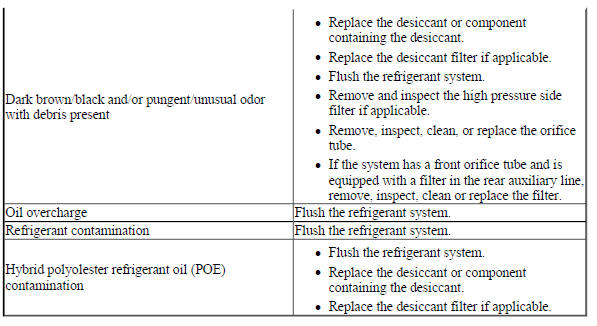

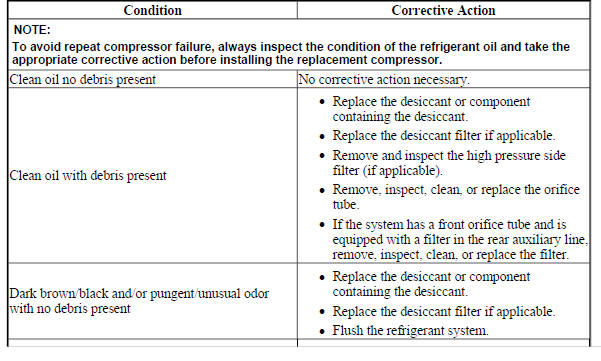

AIR CONDITIONING COMPRESSOR OIL DIAGNOSIS
Air Conditioning Compressor Oil Diagnosis
![Air Conditioning Compressor Oil Diagnosis](images/manuals/4484/index418(8).jpg)
![Air Conditioning Compressor Oil Diagnosis](images/manuals/4484/index419(7).jpg)
NOISE DIAGNOSIS - AIR CONDITIONING (A/C) SYSTEM

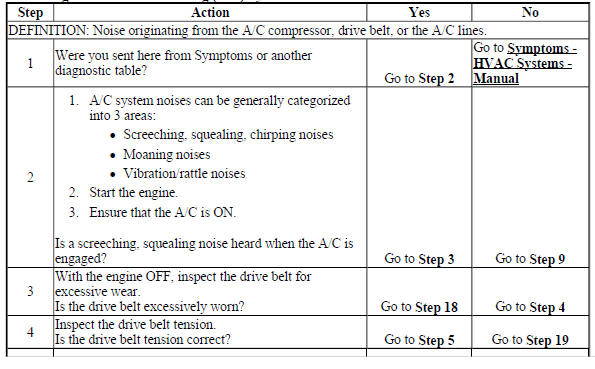

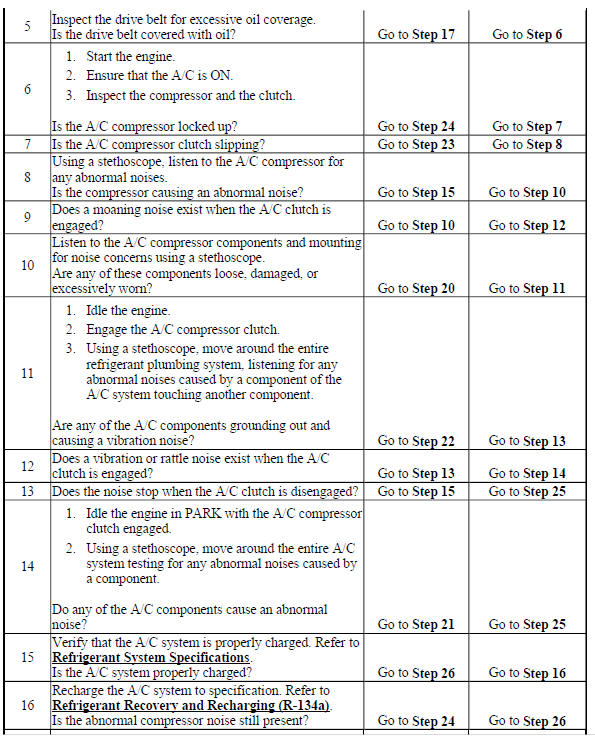

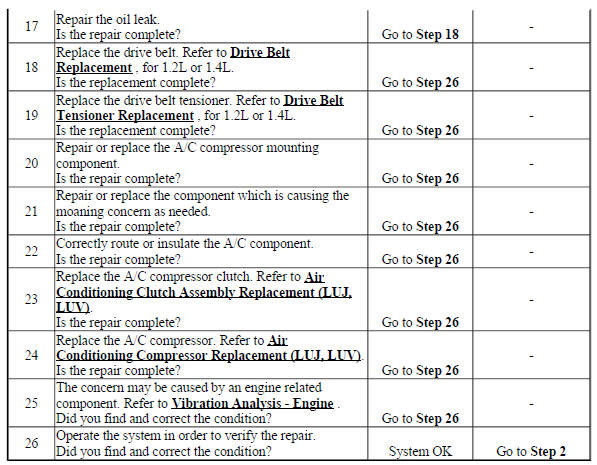

Noise Diagnosis - Air Conditioning (A/C) System
![Noise Diagnosis - Air Conditioning (A/C) System](images/manuals/4484/index420(7).jpg)
![Noise Diagnosis - Air Conditioning (A/C) System](images/manuals/4484/index421(7).jpg)
![Noise Diagnosis - Air Conditioning (A/C) System](images/manuals/4484/index422(7).jpg)

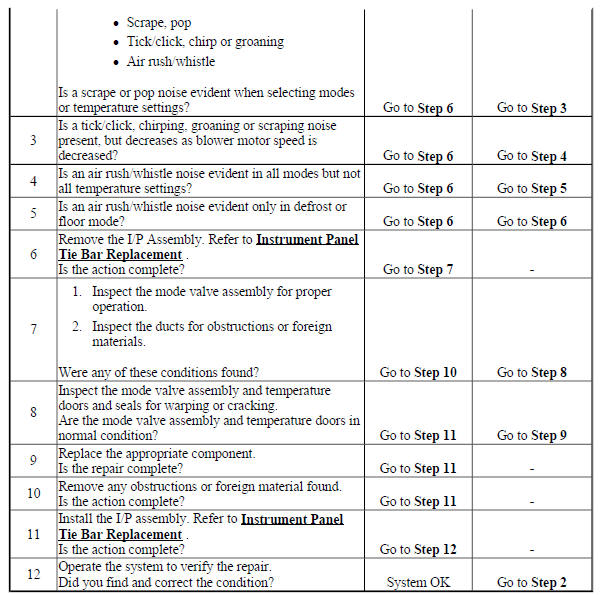

NOISE DIAGNOSIS - HVAC MODULE

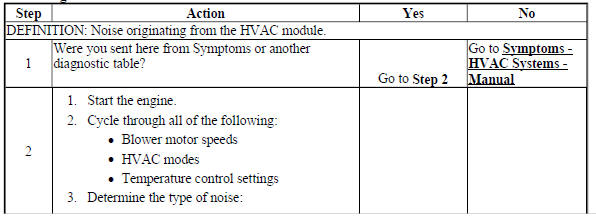

Noise Diagnosis - HVAC Module
![Noise Diagnosis - HVAC Module](images/manuals/4484/index423(7).jpg)
![Noise Diagnosis - HVAC Module](images/manuals/4484/index424(7).jpg)

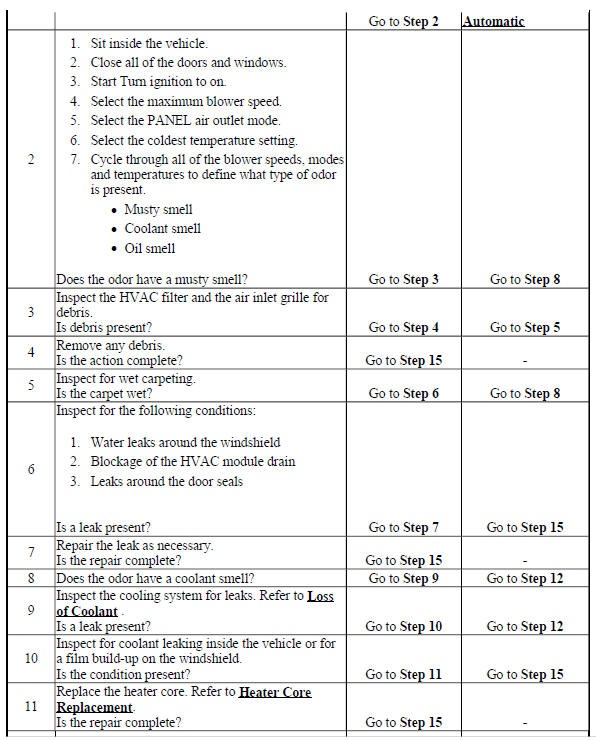

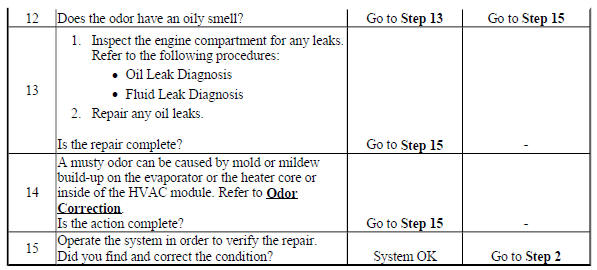

ODOR DIAGNOSIS
Odor Diagnosis
![Odor Diagnosis](images/manuals/4484/index425(7).jpg)
![Odor Diagnosis](images/manuals/4484/index426(7).jpg)
![Odor Diagnosis](images/manuals/4484/index427(7).jpg)
