Chevrolet Trax: Ultra high strength dual phase steel

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Collision Repair / Description and operation / Ultra high strength dual phase steel

This information provides repair recommendations and general guidelines for steel classified as Ultra High Strength Dual Phase Steel (dual phase steel with a tensile strength greater than 800 MPa), also known as DPX.

General Motors recommends the following when repairing or replacing this type of steel during collision repair

NOTE:

  • Repair of this type of steel is not recommended.
  • This type of steel should be replaced at factory joints only. Sectioning or partial replacement is not recommended.
  • The use of heat to repair damage is not recommended for this type of steel.
  • Stitch welding is not recommended for this type of steel.
  • This classification of steel cannot be used as a backing reinforcement or a sleeve for a sectioning joint, unless a specific procedure is available.

Recommended Repairs

  • Squeeze resistance spot welding can be used to replace factory spot welds, where applicable.
  • MIG plug welding can be used to replace factory spot welds.
  • MIG brazing can be used to replace factory spot welds.

ULTRA HIGH STRENGTH STEEL

This information provides repair recommendations and general guidelines for steel classified as Ultra High Strength Steel, also know as UHSS. This type of steel normally has a tensile strength greater than 700 MPa.

This includes the common steel names of:

  • Ultra High Strength Steel (UHSS)
  • Martensitic Steel (MS)
  • Press Hardened Steel (PHS)
  • Boron Steel

NOTE:

  • Repair of this type of steel is not recommended.
  • This type of steel should be replaced at factory joints only. Sectioning or partial replacement is not recommended.
  • The use of heat to repair damage is not recommended for this type of steel.
  • Stitch welding is not recommended for this type of steel.
  • This type of steel can not be used as a backing reinforcement or a sleeve for a sectioning joint.

Recommended Repairs

  • Squeeze resistance spot welding can be used to replace factory spot welds, where applicable.
  • MIG plug welding can be used to replace factory spot welds.
  • MIG brazing can be used to replace factory spot welds.

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS

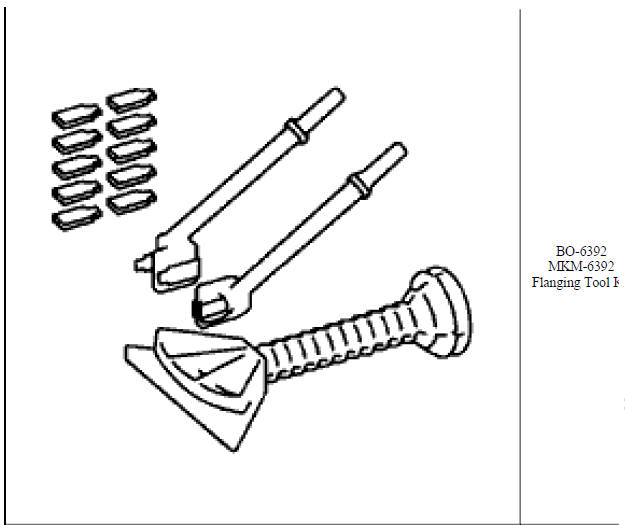

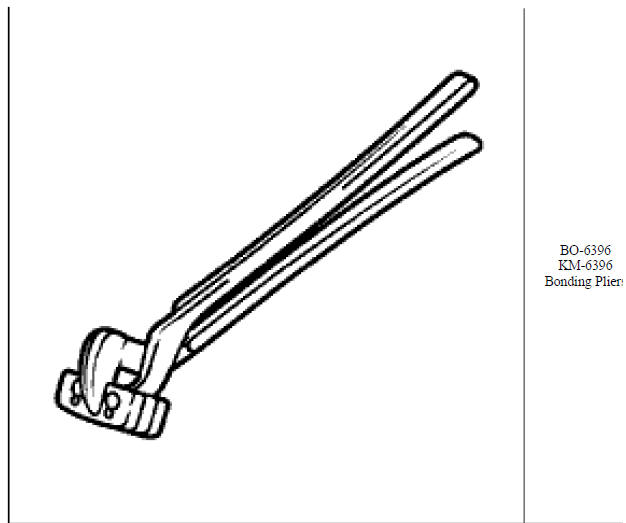

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS AND EQUIPMENT
