FRONT SEAT HEATER CONTROL MODULE REPLACEMENT

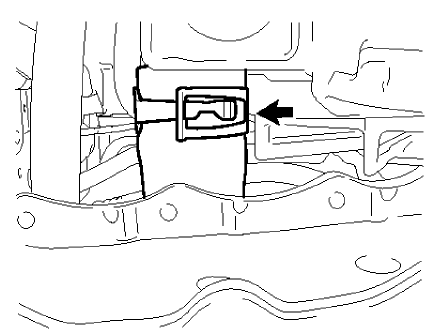

Fig. 3: Front Seat Heater Control Module
Fig. 3: Front Seat Heater Control Module

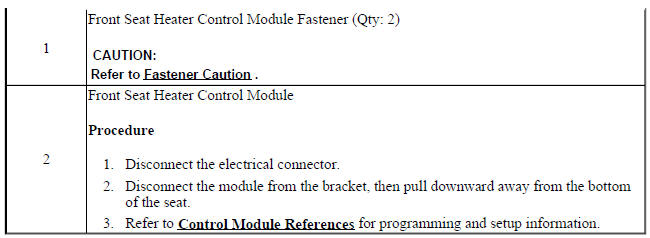

Front Seat Heater Control Module Replacement

Front Seat Heater Control Module Replacement

Front Seat Heater Control Module Replacement

DRIVER OR PASSENGER SEAT BACK CUSHION HEATER REPLACEMENT

Fig. 4: Driver Or Passenger Seat Back Cushion Heater
Fig. 4: Driver Or Passenger Seat Back Cushion Heater

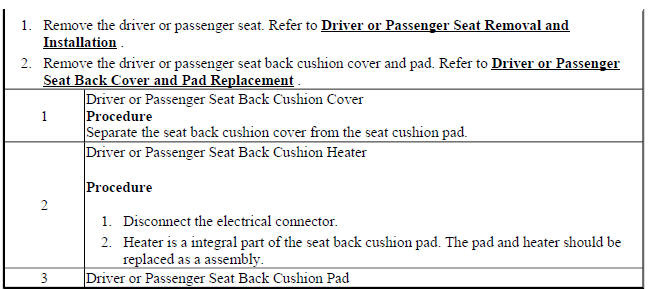

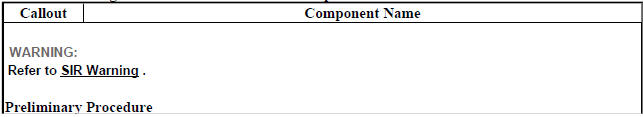

Driver or Passenger Seat Back Cushion Heater Replacement

Driver or Passenger Seat Back Cushion Heater Replacement

Driver or Passenger Seat Back Cushion Heater Replacement

DRIVER OR PASSENGER SEAT CUSHION HEATER REPLACEMENT

Fig. 5: Driver Or Passenger Seat Cushion Heater
Fig. 5: Driver Or Passenger Seat Cushion Heater

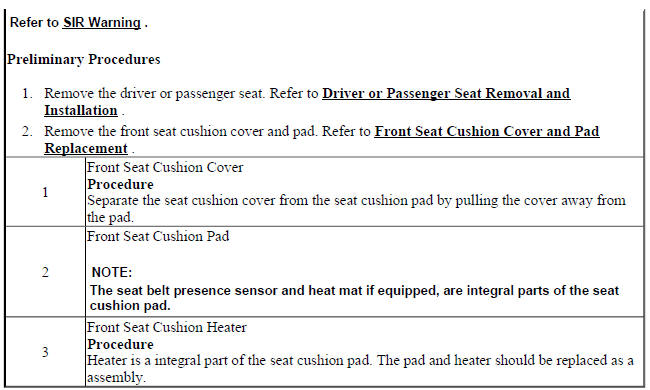

Driver or Passenger Seat Cushion Heater Replacement

Driver or Passenger Seat Cushion Heater Replacement

Driver or Passenger Seat Cushion Heater Replacement
