Chevrolet Trax: Roof
Sunroof
If equipped, the sunroof only operates when the ignition is turned to ON/RUN or Retained Accessory Power (RAP) is active.

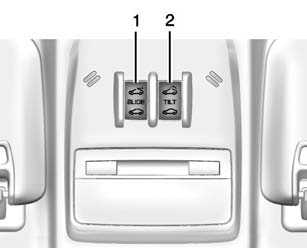

Open/Close: Press and hold the front or rear of switch (1) to open or close the sunroof.
Vent: Press and hold the front or rear of switch (2) to vent or close the sunroof.
Manually close the sunshade.
The sunroof will not operate if the vehicle has an electrical failure.

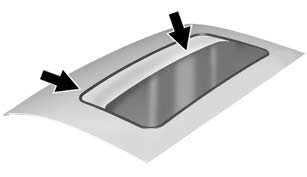

Dirt and debris may collect on the sunroof seal or in the track. This could cause an issue with sunroof operation or noise. It could also plug the water drainage system.
Periodically open the sunroof and remove any obstacles or loose debris. Wipe the sunroof seal and roof sealing area using a clean cloth, mild soap, and water. Do not remove grease from the sunroof.
If water is seen dripping into the water drainage system, this is normal.
