Chevrolet Trax: Park - Engine Running - Gen 2/Hybrid

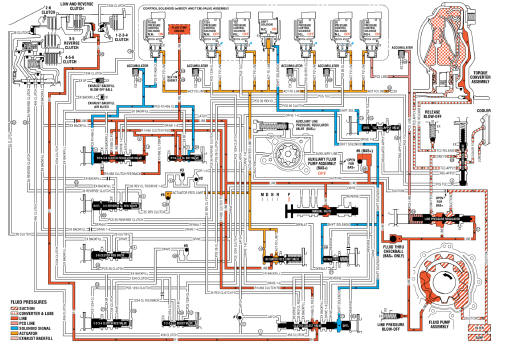

6: Park -- Engine Running -- Gen 2/Hybrid Fluid Flow Diagram
6: Park -- Engine Running -- Gen 2/Hybrid Fluid Flow Diagram

Reverse (Gen 2/Hybrid)

When the gear selector lever is moved to the Reverse (R) position (from the Park position) the normally-low 35R pressure control solenoid is commanded ON and the following changes occur in the transmission's hydraulic and electrical systems:

3-5-Reverse Clutch Applies

Manual Valve

With the manual valve in the reverse position, line pressure is directed into the reverse fluid circuit. Reverse fluid is then routed to the clutch select valve and to the default override valve.

Clutch Select Valve

Reverse fluid is routed to a differential area of the clutch select shuttle valve and assists shift solenoid fluid, present at the valve from Park position, in holding the clutch select valve against clutch select valve spring force. Reverse fluid passes through the clutch select valve into the 35 reverse clutch feed circuit and is routed to the #2 ball check valve. R1/456 clutch feed fluid, present at the valve from Park position, continues to pass through the valve into the R1 circuit in order to keep the low and reverse clutch applied.

#2 Ball Check Valve

3-5 reverse fluid seats the #2 ball check valve against the drive 1-6 fluid passage, and enters the 35 reverse/drive 1-6 circuit. 35 reverse/drive 1-6 fluid is routed to the #3 ball check valve.

#3 Ball Check Valve

35 reverse/drive 1-6 fluid unseats the #3 ball check valve and is routed to the 3-5-reverse clutch regulator valve.

35R Pressure Control (PC) Solenoid

The 35R PC solenoid is energized (ON), allowing actuator feed limit fluid to enter the PCS 35 reverse clutch fluid circuit. PCS 35 reverse clutch fluid is then routed through orifice #26 to the 3-5-reverse clutch regulator valve.

3-5-Reverse Clutch Regulator Valve

PCS 35 reverse clutch fluid, at the 3-5-reverse clutch regulator valve, opposes 3-5-reverse clutch regulator valve spring force and orificed 35 reverse clutch feedback fluid pressure to regulate 35 reverse clutch feed/drive 1-6 pressure into the 35 reverse clutch circuit. 35 reverse clutch fluid is then routed through orifice #25 to the 3-5- reverse clutch, and through orifice #33 to the #4 ball check valve.

3-5-Reverse Clutch

35 reverse clutch fluid enters the 3-5-reverse and 4-5-6 clutch housing assembly to move the 3-5-reverse clutch piston against spring force to apply the 3-5-reverse clutch plates.

#4 Ball Check Valve

35 reverse clutch feed fluid unseats the #4 ball check valve, allowing excess pressure to pass into the actuator feed limit circuit. This helps to control clutch apply fluid pressure and clutch apply feel.

Accumulator

PCS 35 reverse clutch fluid is also routed to an accumulator valve. The accumulator valve is used to dampen any pressure irregularities occurring in the PCS 35 reverse clutch fluid circuit. This helps to control clutch apply fluid pressure and clutch apply feel.

Fluid Pressure Directed in Preparation for a Possible Default Action

Reverse fluid is directed to the default override valve in preparation for Reverse (R) range operation in the event of a transmission default action. If a transmission electrical component malfunction occurs, all solenoids will default to their normal state. The shift solenoid will default to its normally-closed state (OFF), and shift solenoid fluid will exhaust, allowing default override valve spring force to move the default override valve to the released position. With the default override valve in the released position, reverse fluid pressure passes through the valve into the default circuit and is routed to the 3-5-reverse clutch regulator shuttle valve. Default fluid pressure replaces exhausting PCS 35 reverse clutch fluid pressure to keep the 3-5-reverse clutch regulator valve in the applied position, and allow continued Reverse (R) range operation. Refer to Drive Range- Fourth Gear Default for a complete description of the default actions that occur during an electrical component malfunction.

Reverse - Gen 2/Hybrid

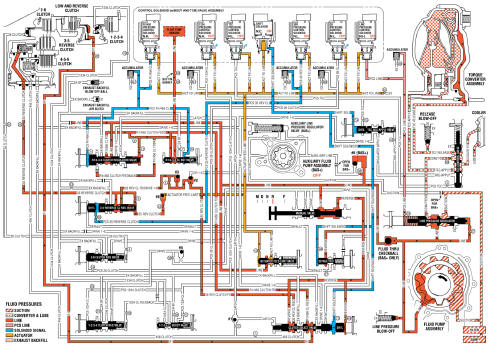

Fig. 7: Reverse -- Gen 2/Hybrid Fluid Flow Diagram
Fig. 7: Reverse -- Gen 2/Hybrid Fluid Flow Diagram

Neutral - Engine Running (Gen 2/Hybrid)

When the gear selector is moved to the Neutral (N) position, the hydraulic and electrical system operation is identical to Park (P) range. However, if Neutral is selected after the vehicle was operating in Reverse (R), the normally-low 35R pressure control solenoid is commanded OFF and the following changes would occur in the hydraulic system.

3-5 Reverse Clutch Releases

Manual Valve

The manual valve is moved to the Neutral position and blocks line pressure from entering the reverse fluid circuit. Reverse fluid, from the 3-5-reverse clutch regulator valve, the clutch select valve, and the default override valve is opened to an exhaust passage at the manual valve.

35R Pressure Control Solenoid

The 35R PC solenoid is commanded OFF allowing PCS 35 reverse clutch fluid from the 3-5-reverse clutch regulator valve to exhaust.

3-5-Reverse Clutch Regulator Valve

PCS 35 reverse clutch fluid exhausts, allowing 3-5-reverse clutch regulator valve spring force to move the 3-5- reverse clutch regulator valve to the released position. This allows exhausting 35 reverse clutch fluid pressure to pass into the exhaust backfill circuit in order to assist the 3-5-reverse clutch piston spring to quickly release the 3-5-reverse clutch.

3-5-Reverse Clutch

3-5-reverse clutch spring force, assisted by exhaust backfill pressure, moves the 3-5-reverse clutch piston to release the 3-5-reverse clutch plates and force 35 reverse clutch fluid to exhaust from the 3-5-reverse and 4-5-6 clutch housing assembly. The exhausting 35 reverse clutch fluid pressure is routed to the 3-5-reverse clutch regulator valve where it enters the exhaust backfill circuit.

Clutch Select Valve

When reverse fluid exhausts from the clutch select shuttle valve, shift solenoid fluid continues to hold the clutch select valve against clutch select valve spring force allowing 35 reverse clutch feed fluid to exhaust into the reverse circuit.

    READ NEXT:

     Neutral - Engine Running - Gen 2/Hybrid

    Fig. 8: Neutral -- Engine Running Fluid Flow Diagram Drive Range, First Gear Engine Braking (Gen 2/Hybrid) Note: Some models of the 6T30/40/45/50 automatic transmission are equipped with an electri

     Drive Range, First Gear Engine Braking - Gen 2/Hybrid

    Fig. 9: Drive Range, First Gear Engine Braking Fluid Flow Diagram Drive Range, First Gear (Gen 2/Hybrid) As the vehicle speed increases, the transmission control module (TCM) receives input signals

     Drive Range, First Gear - Gen 2/Hybrid

    Fig. 10: Drive Range, First Gear -- Gen 2/Hybrid Fluid Flow Diagram Drive Range, Second Gear (Gen 2/Hybrid) As vehicle speed increases and operating conditions become appropriate, the transmission
