Removal Procedure

  1. Remove the left instrument panel outer air outlet. Refer to Instrument Panel Outer Air Outlet Replacement (Trax) , Instrument Panel Outer Air Outlet Replacement (Encore) .
  2. Remove the left instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement (Encore).
  3. Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement (Encore) .

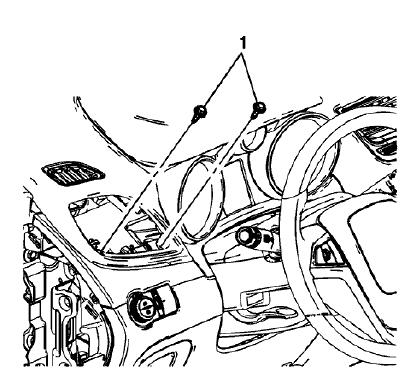

Fig. 98: Instrument Panel Upper Trim Panel
Fig. 98: Instrument Panel Upper Trim Panel

  1. Remove the bolts (1) to loosen the instrument panel upper trim panel.

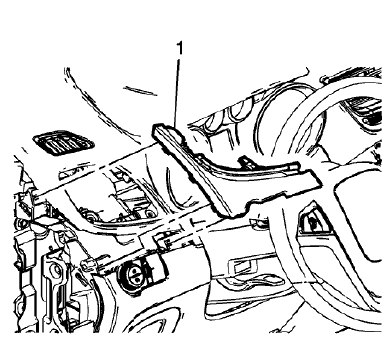

Fig. 99: Left Instrument Panel Retainer
Fig. 99: Left Instrument Panel Retainer

  1. Use a flat bladed plastic trim tool to aid in the removal of the left instrument panel retainer (1) from the instrument panel assembly.
  2. Disconnect the electrical connection.
  3. Remove the instrument panel retainer (1) after getting the space by pulling out the instrument upper trim panel.

Installation Procedure

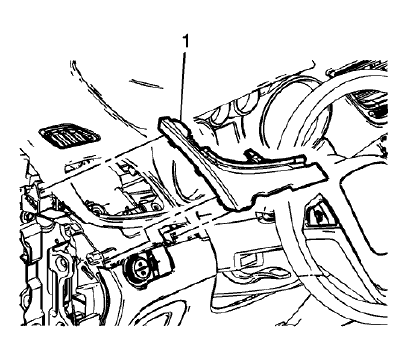

Fig. 100: Left Instrument Panel Retainer
Fig. 100: Left Instrument Panel Retainer

  1. Install the instrument panel retainer (1) to the instrument panel assembly.
  2. Connect the electrical connection.

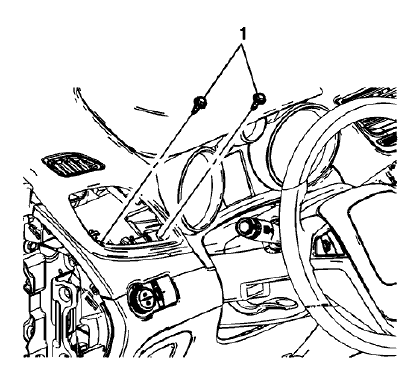

Fig. 101: Instrument Panel Upper Trim Panel
Fig. 101: Instrument Panel Upper Trim Panel

CAUTION: Refer to Fastener Caution .

  1. Install the bolts (1) to the instrument panel upper trim panel.
  2. Install the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement (Encore) .
  3. Install the left instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement (Encore).
  4. Install the left instrument panel outer air outlet. Refer to Instrument Panel Outer Air Outlet Replacement (Trax) , Instrument Panel Outer Air Outlet Replacement (Encore) .
